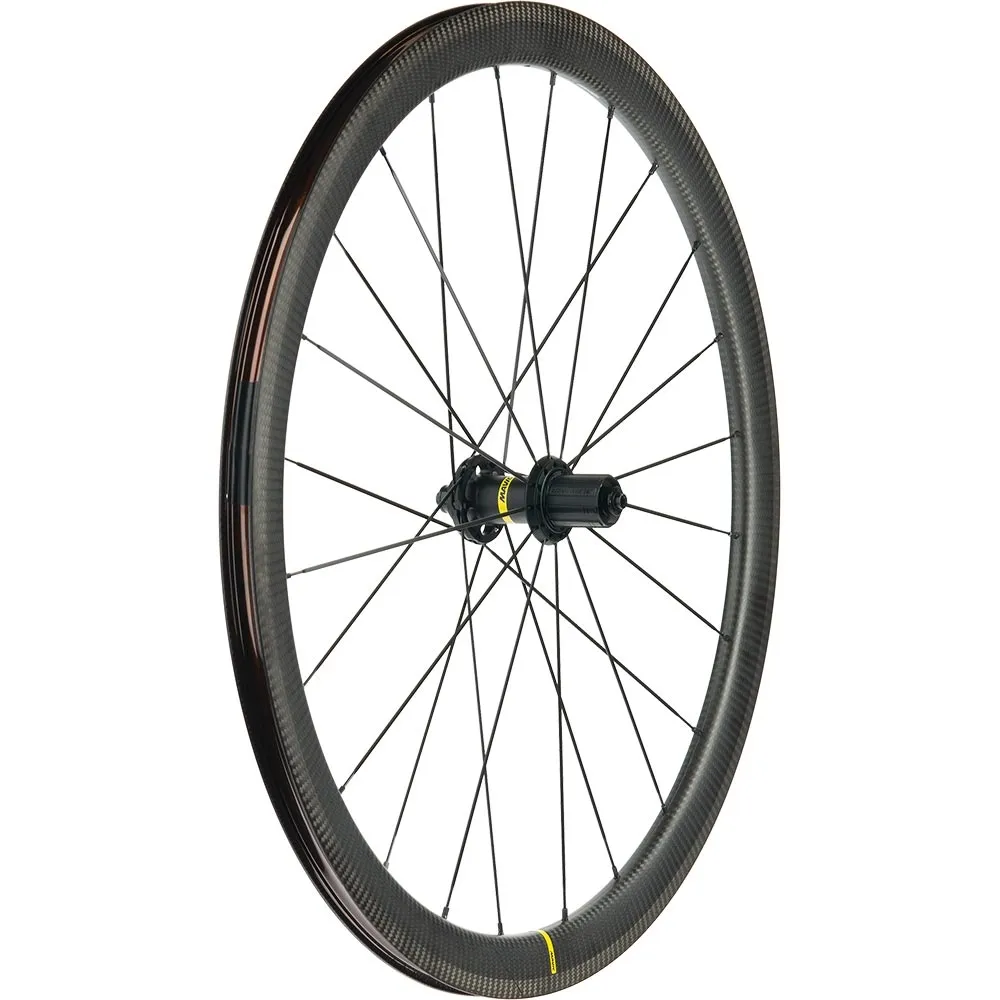

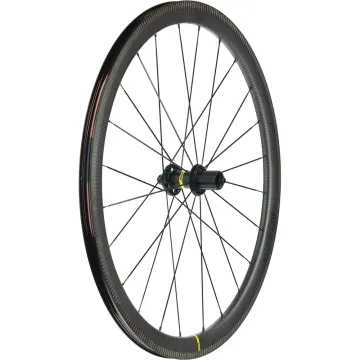

Mavic Cosmic SL 40 rear wheel, carbon, rim brake version, clincher tubeless-ready, freehub body options: HG11, Campagnolo ED or Sram XDR

Mavic Cosmic SL 40 Carbon wheelset

The classic RB version of the Cosmic SL wheels for rim brakes, with a 40 mm rim depth and weighing just 1599 grams. The aero wheels for flat stages, marathons and racing. This versatile carbon road bike is ideal for riders seeking the perfect balance between weight, aerodynamics and efficiency. New spokes and hubs give the Cosmic SL 40 a light and responsive feel when climbing and accelerating.

Included:

Mavic Cosmic SL 40 clincher rear wheel, carbon brake pads, BR301 quick-release skewer, tubeless rim tape and valve

Mavic Cosmic SL 40 carbon wheel specifications and dimensions:

28 inches, clincher for folding and clincher tyres ETRTO 622x19TC
Material: 12K carbon weave, carbon rim bed, tubeless ready
40 mm high-profile rim
Width: 19 mm (internal), 26 mm (external)
Colour: Carbon black
Spoke material: stainless steel aero spokes
Number of spokes: 18 at the front and 24 at the rear
Spoke pattern: Radial at the front, double-crossed at the rear.
Hub body: Aluminium front and rear
Bearings: QRM Auto
Infinity rear hub with aluminium body, 10x130 mm quick-release mounting
Freewheel: Instant Drive 360 aluminium sprocket system, available as
- HG11 freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed
- ED Campagnolo freehub body for Campagnolo 9-speed, 10-speed, 11-speed and 12-speed cassettes
- SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
Minimum tyre size: width 23mm – max. pressure 6.75 bar/97 PSI
Maximum tyre size: Width 62mm – max. pressure 3.8 bar/55 PSI
Maximum recommended rider weight: 120 kg
ASTM Category 1, road bike use

Mavic Cosmic SL 40 weights:

Pair: 1599 grams
Front wheel: 704 grams
Rear wheel: 895 grams

Mavic Cosmic SL 40 RB Application:

Road racing, suitable for use with rim brakes only. Approved by Mavic for riders weighing up to 120 kg. These wheels can be used with genuine UST tyres, tubeless-ready tyres and standard tyre-inner tube combinations.

Mavic Cosmic Carbon SL 40 Rim Brake Rear Wheel Spare Parts:

Replacement rear rim, 24-hole, height 40 mm, width 25.7 mm, rim width 19 mm Item No: V4092713
Right-hand replacement spoke Aero 260 mm with nipple and washer Item No.: V4161601
Left replacement Aero spoke 280 mm with nipple and washer, Part No: V4162801
Tubeless rim tape 25 mm, Item No. V3720101
Hub bearing type 6903 / 17x28x7 mm, Part No: V2560401
Rear wheel axle kit 130 for ID360 UB hub with retaining ring and cover, Part No: V2252801
Sprocket retainer with retaining ring, Part No: V2252701
Freewheel body seal Part No: V00063631
Sprocket kit with spring Item No.: V2251701
Rubber for noise damping Item No.: V2500501
Road spring for toothed discs Part No: V2251801
Bearing cover with shaft washer and circlip Part No: V2373001
Axle end stops, quick-release mount, Part No: V2253101

Compatible Mavic Instant Drive 360 freehub body:

Aluminium Light freehub body for Shimano HG + Sram cassettes Item No: V3850101
Aluminium freehub body for Shimano HG + SRAM cassettes Item No: V3430101
Aluminium freehub body for Campagnolo ED cassettes 10-12 speed Item No: V3440101
Aluminium freehub body for Campagnolo N3W cassettes 10-12 speed Item No: V4270101
Aluminium freehub body for Sram XDR and XD cassettes Item No: V2580101
Aluminium freehub body for Shimano Microspline cassettes Item No: V3990101

COSMIC SL 40

specifically designed for rim brakes. Our proven iTgMax technology features a patented laser treatment of the braking surface, which reduces braking distance in both dry and wet conditions, whilst a special lay-up and heat treatment process makes them the strongest and most durable of all carbon rims for rim brakes. They are available for Shimano cassettes and can be converted to Campagnolo and SRAM XD-R with optional drive bodies. These wheels were designed, developed and patented by Mavic in Annecy, France, and are 100 per cent hand-built in our European carbon factory.

Mavic Infinity hubs:

The completely newly developed Infinity hubs are equipped with a larger 17 mm axle diameter and larger bearings. This increases the torsional stiffness of the axles by approximately 35 per cent. The proven Mavic QRM auto industrial bearings are used in the Infinity hubs. Equipped with the Instant Drive sprocket freehub body, the ORM auto axle system and self-aligning bearings, they ensure maintenance-free operation over a long period.

Mavic Instant Drive 360 freehub body

The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG11 version for Shimano and SRAM 8-11-speed, SRAM XDR 12-speed road bike and Campagnolo 9-12-speed ED cassettes. A rubber damper is fitted as standard, which can be removed. For those who prefer a slightly more distinctive sound.

Mavic Cosmic SL 40 Clincher Rims:

These 40 mm high and 26 mm wide aero rims with a 19 mm rim width offer excellent aerodynamics and acceleration. Mavic’s iTgMax rim technology provides the best possible resistance to heat build-up. The rim features a NACA rim profile with a depth of 40 mm and a width of 26 mm, specifically designed for all-round performance on flat or undulating terrain. The new rim bed shape makes it easier than ever to fit tubeless and clincher tyres. Riding UST tubeless means no inner tube and therefore no friction, and greater air volume means a smoother ride. The result is a faster ride with extremely low rolling resistance.
Thanks to improved spokes, this wheelset is 80 g lighter than its predecessor, the Cosmic Pro Carbon UST. Combined with our new Infinity hub platform, which ensures a fast and responsive ride out of every corner, they are stiffer and more efficient.

Mavic Aero spokes:

The patented elliptical spoke shape significantly improves aerodynamics. The durability of Mavic stainless steel spokes is exceptionally high.

Mavic Tubeless System:

The new rim bed, with its pronounced and wider grooves, makes tubeless fitting significantly easier. Mavic is thus setting the standard for simple tubeless fitting. The fitting process is no different from that of standard folding tyres. This allows the advantages of tubeless tyres – lower rolling resistance, greater riding comfort and reduced risk of punctures – to come into their own.

Of course, the Mavic Cosmic wheels can also be used with standard folding and clincher tyres and inner tubes without any issues. When out and about, we recommend carrying a standard inner tube as a quick puncture repair solution.
