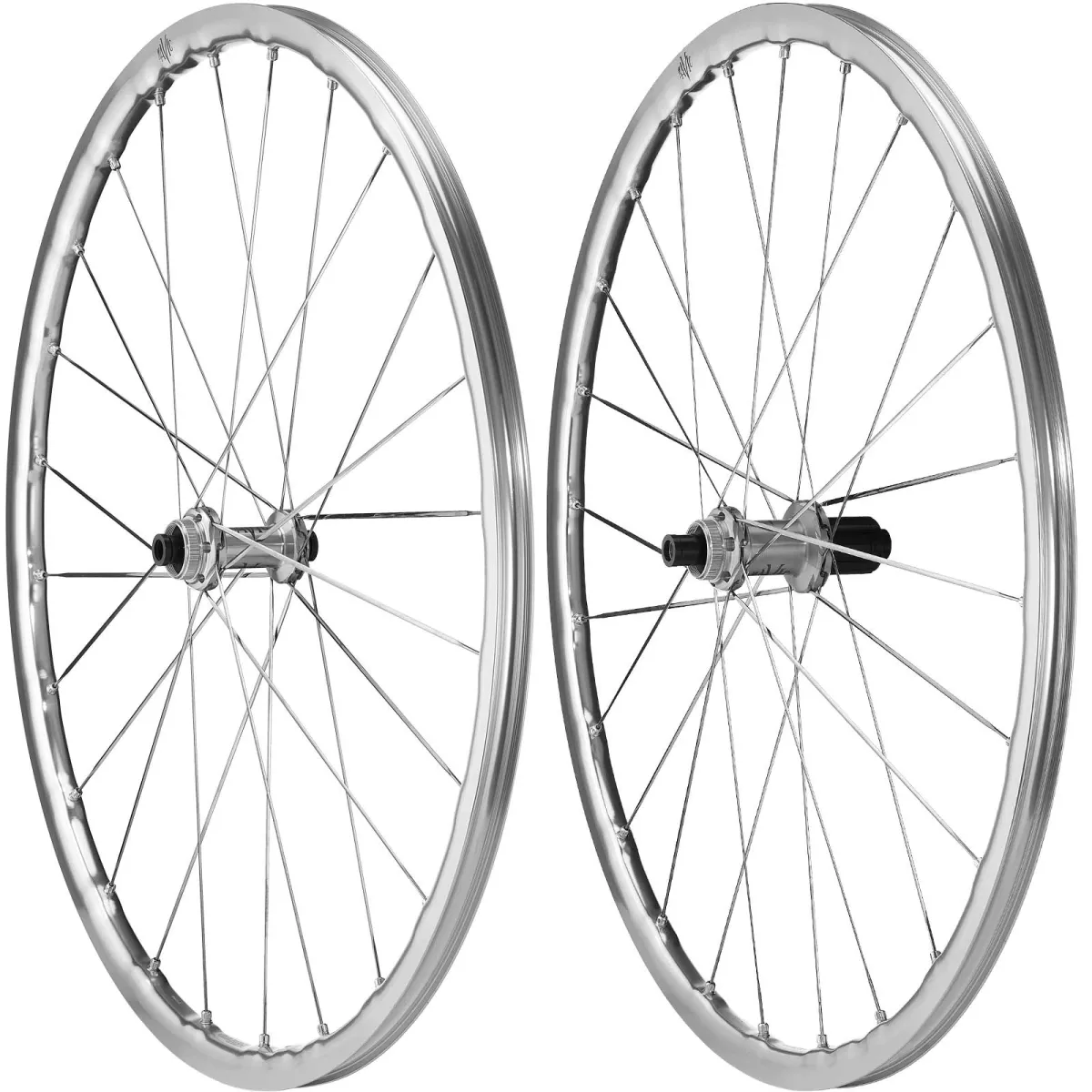

Mavic Ksyrium SL Disc wheel

In silver, the Heritage Ksyrium SL Disc. The extra-lightweight and sturdy aluminium disc wheels for use on road, cyclocross and endurance bikes, featuring the extra-sturdy and lightweight, non-drilled UST rims.

The Mavic Ksyrium SL UST Disc wheelsets feature new Infinity hubs, the Instant 360 freehub system, 22 mm wider and 400 g lighter ISMD4 Disc UST rims with a 19 mm rim width for tyres from 25–35 mm. Thanks to the non-drilled rim bed, the new UST rims are particularly sturdy despite their low weight.

Included:

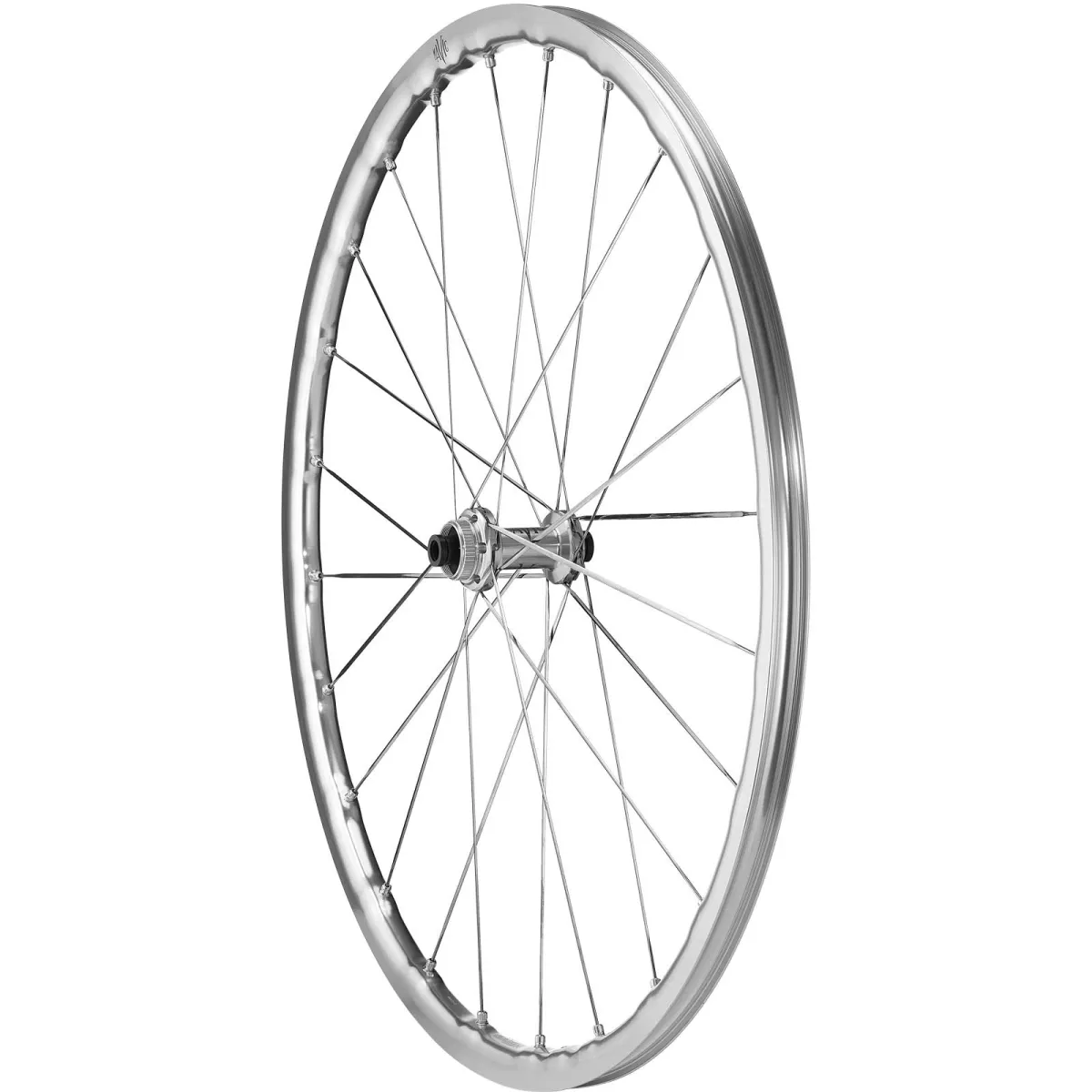

• Mavic Ksyrium SL UST Disc front wheel, end caps as selected, UST valve

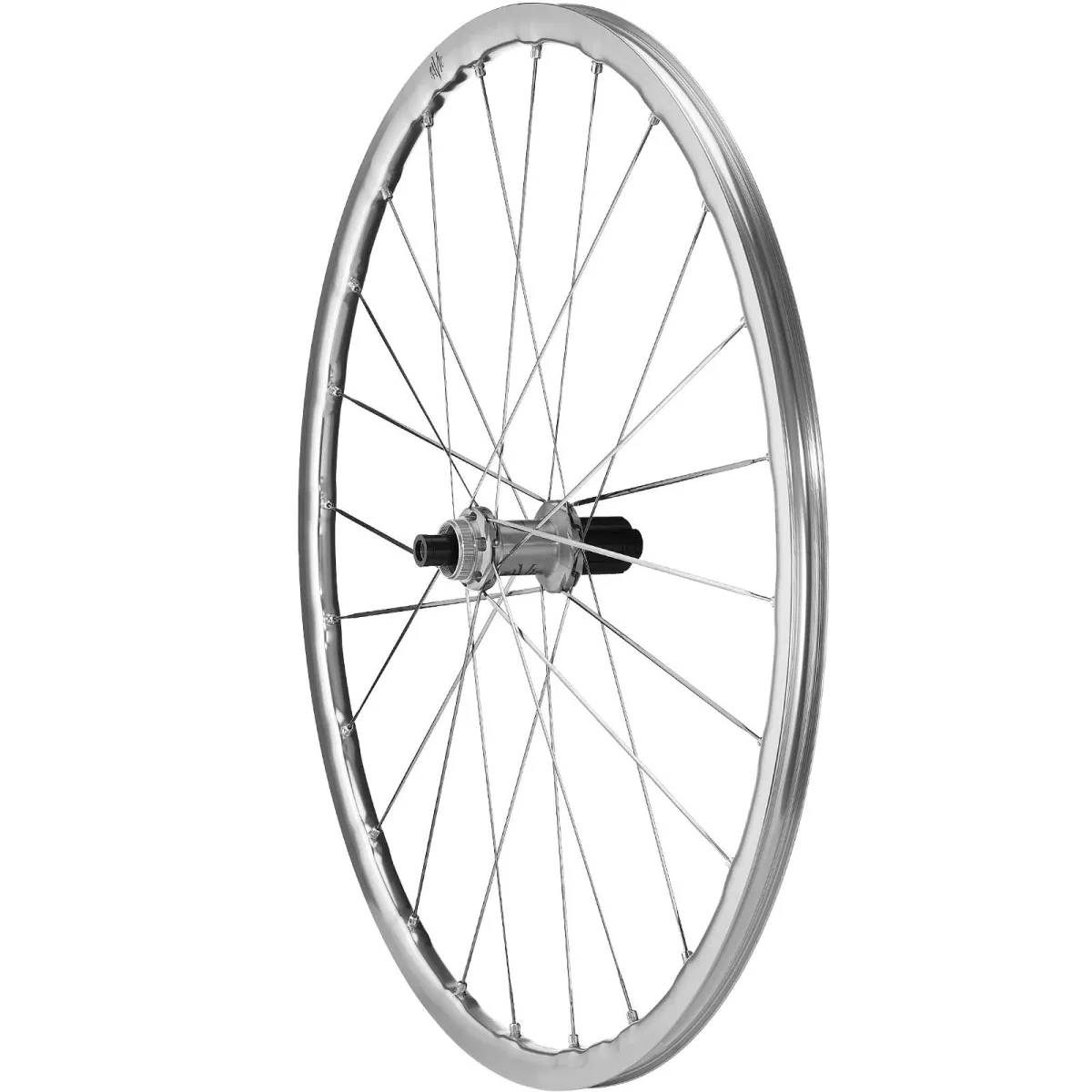

• Mavic Ksyrium SL UST Disc rear wheel, freehub body and end caps as selected, UST valve

Mavic Ksyrium SL Disc UST wheel technology and dimensions:

• Intended use: Road, Cross, Endurance
• 28 inches, for folding and clincher tyres, ETRTO 622x19
• Rim width 19 mm
• Recommended tyre widths 25–35 mm
• 24 straight, aerodynamic stainless steel spokes per wheel
• Double-cross lacing on the front wheel, Isopulse lacing on the rear wheel
• Self-locking aluminium M7 spoke nipples
• Maxtal Aluminium Force rim, welded, undrilled
• Asymmetrical rim profile
• Industrial-grade QMR Auto Infinity hubs
• Disc brake mount: Disc Centerlock
• Infinity front hub, aluminium body, 12x100mm thru-axle or 9x100mm quick-release mount
• Infinity rear hub, aluminium body, 12x142mm thru-axle or 10x135mm quick-release mount
• Instant Drive sprocket freehub body available as:
  • HG11 freehub for Shimano and SRAM Road 8, 9, 10 and 11-speed and Shimano Road 12-speed cassettes
  • Microspline freehub for Shimano Gravel 12-speed Microspline cassettes
  • ED Campagnolo freehub body for Campagnolo 9-, 10-, 11- and 12-speed cassettes
  • N3W Campagnolo freehub body for Campagnolo 13-speed cassettes
  • SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
• ASTM CATEGORY 2: maximum recommended rider weight 120 kg

Mavic Ksyrium SL UST Disc weights, manufacturer’s specifications:

• Front wheel: 732 grams
• Rear wheel: 855 grams
• Wheelset: 1575 grams

Compatible end caps, front wheel:

• Quick-release mounting, 9x100 mm adapter, item no.: V2680301
• Thru-axle mounting, 12x100 mm, adapter part no.: V2680501

Compatible dropouts, rear wheel:

• Quick-release mounting, 10x135 mm adapter part no.: V2510801 plus axle part no.: V2373401
• Thrust axle mounting, installation dimension 12x135 mm, adapter part no.: V2510901
• Thru-axle mounting, 12x142 mm adapter Part No: V2510701

Compatible Instant Drive 360 freehub body

• HG11 aluminium freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Part No. V3430101
• HG11 Aluminium Light Freehub for Shimano and SRAM cassettes, 8, 9, 10 and 11-speed compatible, Part No. V3850101
• HG11 steel freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed systems, item no. V4000101
• Microspline aluminium freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Item No. V3990101
• ED freewheel for Campagnolo cassettes, 9 + 10 + 11 + 12-speed compatible Item No. V34401001
• N3W freehub for Campagnolo cassettes, 10 + 11 + 12 + 13-speed compatible Item No. V4270101
• SRAM XD Road freehub for SRAM AXS Road and XG MTB cassettes, 11 + 12-speed compatible Item No. V2580101

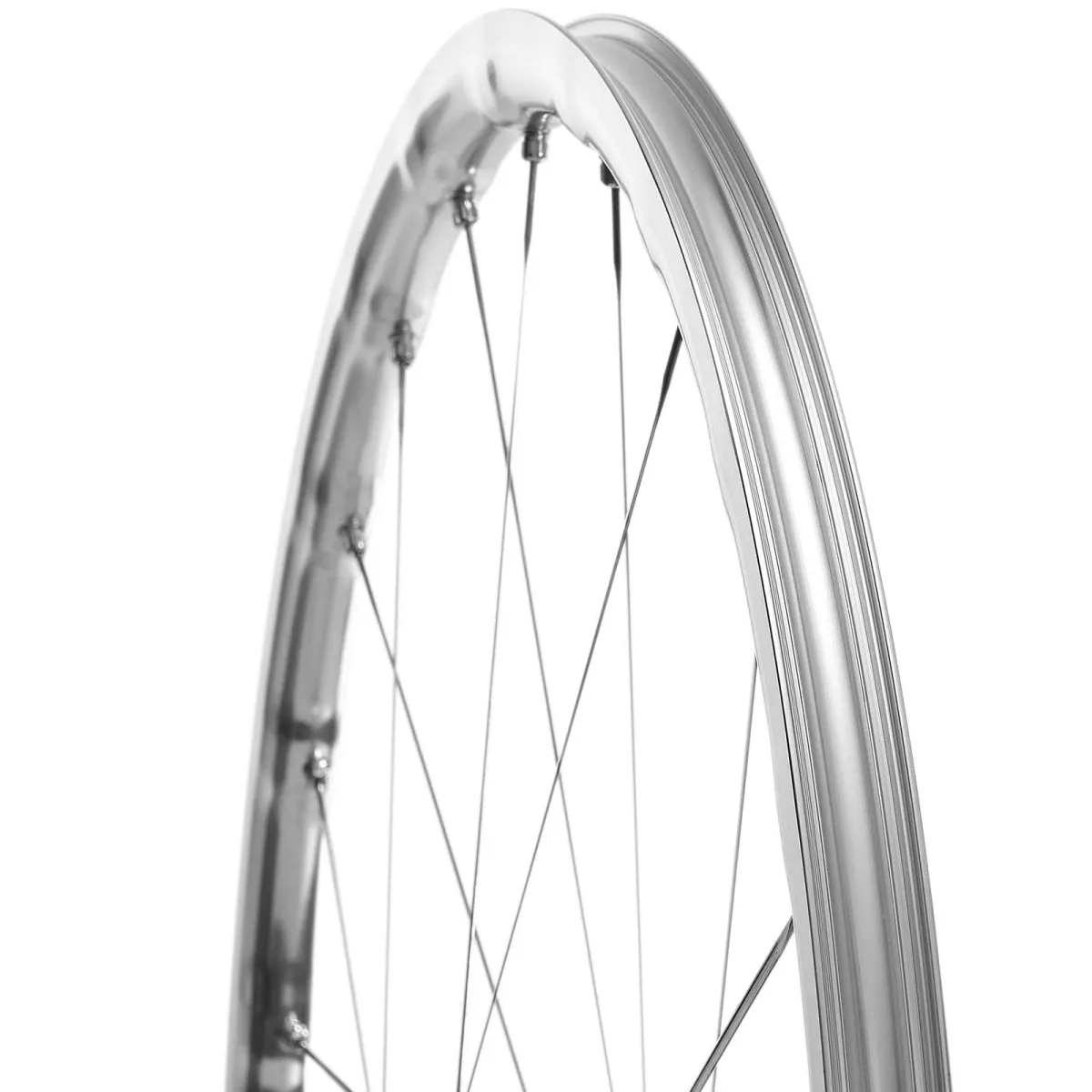

Mavic Ksyrium SL Disc UST Force rims:

The new Ksyrium SL rims are genuine UST rims with a sealed rim bed. For the Force spoke nipples, the thread is milled into the rim, leaving the rim bed untouched. This makes the rim significantly more resistant to fatigue and approximately 20 per cent stiffer. A tubeless rim tape is not required. The Maxtal aluminium alloy, manufactured exclusively for Mavic, is 30 per cent stronger than 6106 aluminium. This allows Maxtal rims to be super-light yet still sturdy. Mavic’s ISM4 weight-optimisation saves every gram on the rims for reduced inertia; the rims weigh just 400 grams. Naturally with a welded rim joint

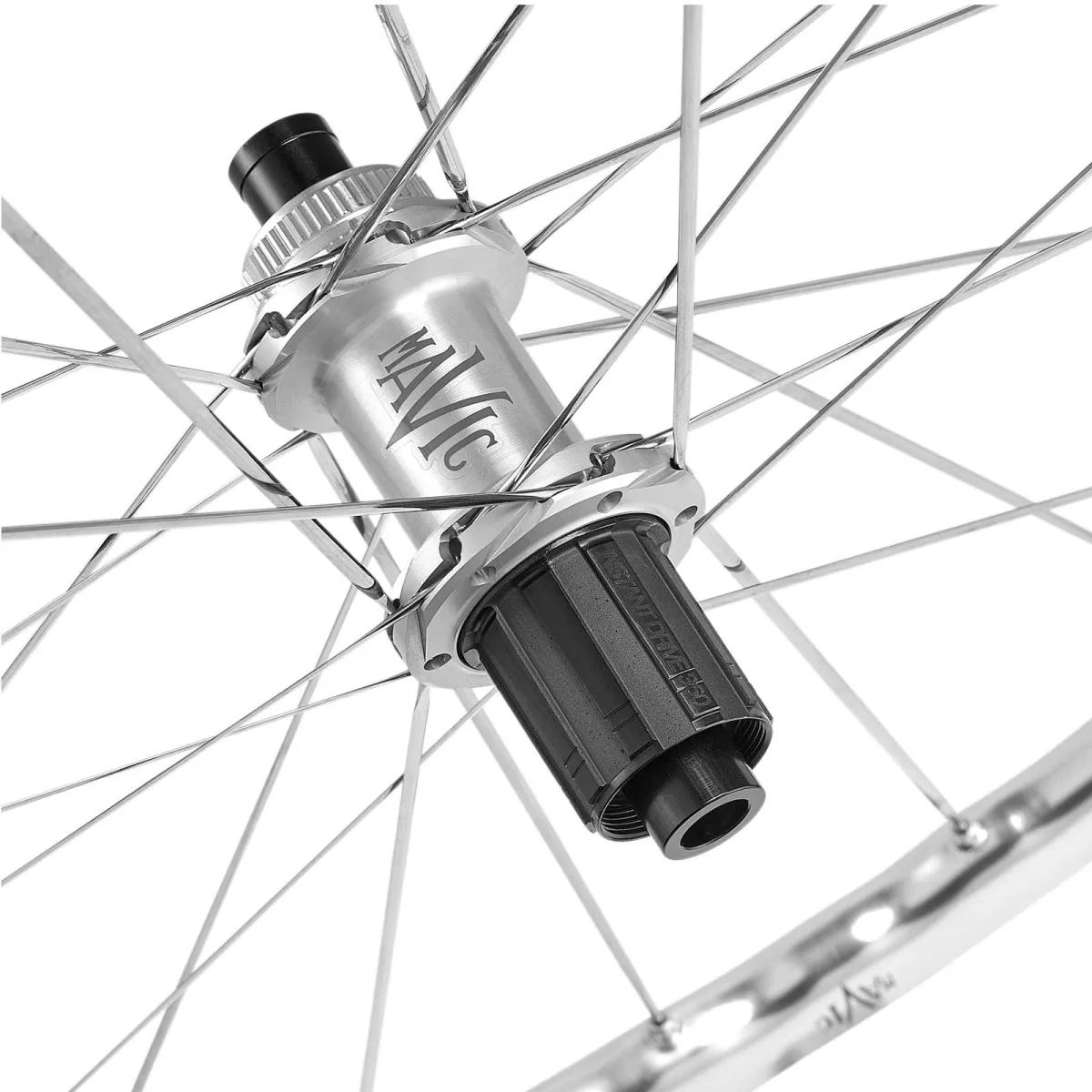

Mavic Infinity Disc hubs:

The completely newly developed Infinity hubs are equipped with a larger 17 mm axle diameter and larger bearings. This increases the torsional stiffness of the axles by approximately 35 per cent. The proven Mavic QRM auto industrial bearings are used in the Infinity hubs. Equipped with the Instant Drive sprocket freehub body, the ORM auto axle system and self-aligning bearings, they ensure maintenance-free operation over a long period.

Mavic Infinity Disc Hub Compatibility:

The oversized aluminium axles allow for easy conversion to all standard axle systems. The Infinity front hub is compatible with QR9x100mm quick-release and QR12x100mm thru-axle mounts; the Infinity rear hub is compatible with 10x135mm quick-release mounts and 12x142mm and 12x135mm thru-axles.

Mavic Instant Drive 360 Freehub Body

The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets with 40-tooth profiles ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG11 version for Shimano and SRAM 8–11-speed, Microspline 12-speed, SRAM XDR 12-speed road bike and Campagnolo 9–12-speed ED cassettes and 13-speed N3W. A rubber damper is fitted as standard and can be removed. For those who prefer a slightly more distinctive sound.

Mavic Aero spokes:

The patented elliptical spoke shape significantly improves aerodynamics, featuring the tried-and-tested double-butted Aero spokes. Highly strong and resilient, the durability of Mavic stainless steel spokes is exceptionally high.

Mavic Tubeless System:

The new rim bed makes fitting tubeless tyres easier. The pronounced and wider grooves in the rim bed significantly simplify tubeless fitting. Mavic is thus setting the standard for easy tubeless fitting. The fitting process is no different from that of standard folding tyres. This allows the advantages of tubeless tyres – lower rolling resistance, greater riding comfort and reduced risk of punctures – to come into their own.

Of course, Mavic UST wheels can also be used with standard folding and clincher tyres and inner tubes without any issues. When out and about, we recommend carrying a standard inner tube as a quick puncture repair solution.
