Spare part: Mavic Instant Drive Disc Hub

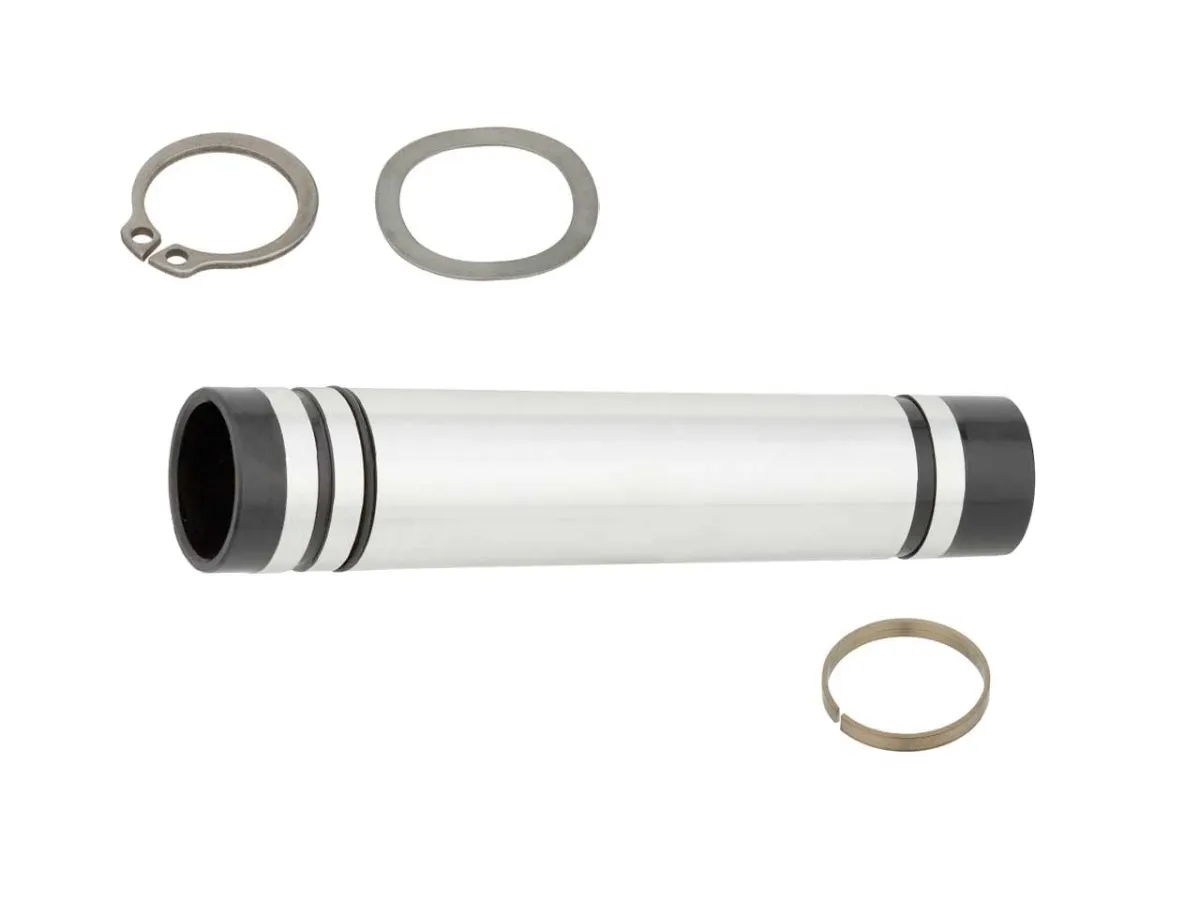

Spare axle for Mavic Allroad front disc centre-lock hubs from the 2019 model onwards, for conversion to 15x100 mm thru-axle mounting. The end stops (item no. V2372501) are also required.

Scope of delivery No. 5 of the exploded view

Mavic Instant Front Disc Hub Spare Parts:

• Part No: V2500901, front wheel hub bearings, dimensions 18x30x7mm, 2 pieces
• Part No: V2374001, 12x100 mm front wheel axle with shaft washer, retaining ring and bearing caps (Disc Centerlock)
• Item No: V2680301, end stops for 9x100mm quick-release mounting, Disc Centerlock
• Item No: V2373501, Replacement axle for 15x100 mm thru-axle fitting, Disc Centerlock
• Part No: V2372501, 15x100mm end stops are required in addition to the replacement axle.

Mavic Instant Drive 360 QRM rear disc hub spare parts:

• Part No: M40076, ID360 hub bearings, dimensions 17x30x7mm, 2 pieces, type 6903
• Part No: V2251701, ID360 sprockets, 2 pieces with spring and pad for noise reduction
• Item No: V2251801, ID360 toothed disc spring
• Item No: V2252601, freewheel body seal
• Item No: V2252001, ID360 toothed discs, freehub body HG11
• Item No: V2252101, ID360 toothed discs, freehub body Campa ED
• Item No: V4270101, ID360 sprocket freewheel body Campa N3W
• Part No: V2580101, ID360 sprockets, Sram XD Road freehub body
• Item No: V3740101, ID360 Freewheel Body Sram XD MTB
• Item No: V2252201, Spacer ring for 9 and 10-speed cassettes
• Item No: V2251501, Splined disc for axle
• Item No: V2373401, ID360 rear axle with splined disc and retaining ring, Disc Centerlock
• Item No: V2510801, End stops 10x135mm quick-release mount, Disc Centerlock
• Item No: V2510901, End stops 10x135mm thru-axle mount, Disc Centerlock
• Item No: V2510701, End stops 12x142 mm thru-axle mount, Disc Centerlock

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
