Spare part: Mavic MTB Boost Disc Hub

The axle for Mavic Boost 148 mm rear disc Centre Lock hubs with Instant Drive QRM Auto from the 2017 model onwards

In spring 2017, Mavic changed the axle system from QRM+ to QRM Auto. The rear hubs can be identified by the left-hand side of the axle; on QRM Auto hubs, this is silver and requires different spare parts and end stops

Mavic Instant Drive 360 QRM Auto MTB rear wheel disc Boost 148 mm hub spare parts:

• Item No: M40076, ID360 hub bearing, dimensions 17x30x7mm, type 6903
• Item No: V2375201, ID360 sprockets 24 teeth with spring and pad for noise reduction
• Part No: V2251601, Freehub body seal with grease
• Item No: V3780101, ID360 freehub body HG10
• Part No: V3990101, ID360 freehub body Micro Spline
• Item No: V3740101, ID360 freehub body Sram XD

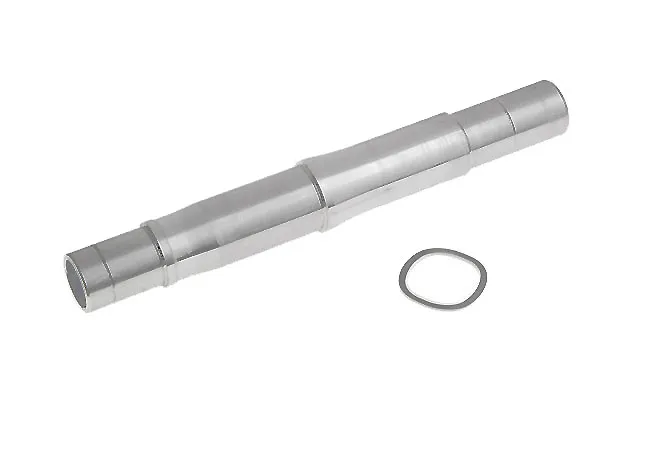

• Item No: V2375701, ID360 rear axle with splined disc, retaining ring and cover, Boost 148 mm Disc Centerlock
• Item No: V2372201, ID360 rear axle with spline disc, retaining ring and cover, Boost 148 mm Disc 6-hole
• Item No: V2251101, Left-hand bearing cap with wave washer and retaining ring
• Item No: V2510701, End stops for 12x148 mm thru-axle mounting, Disc 6-hole and Centerlock

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
