Spare part: Mavic road bike disc hub

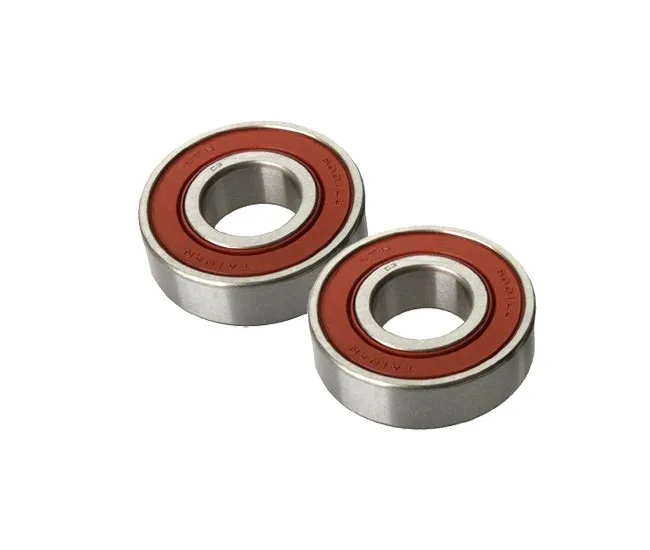

Bearings for Mavic road bike rear disc hubs with Instant Drive freehub body from 2016 model onwards

Original Mavic spare part designation: KIT 2 BEARIN 17X28X7 ID360

Compatible with, amongst others:

• Cosmic SL Rim Brake Disc
• Cosmic S 42 Disc
• Ksyrium S Rim Brake
• Ksyrium Pro Rim Brake Mod 2018
• Cosmic Pro Carbon Mod 2016
• Cosmic Pro Carbon Exalith 2016 model

Contents No. 5 of the exploded view

Mavic Instant Drive 360 QRM auto rear disc hub spare parts:

• No. 5: V2560401, ID360 hub bearings, 2 pieces, 17x28x7 mm
• No. 6: V2252801, ID360 QRM auto hub axle for 6-hole disc hub
• No. 7: V2252701, ID360 sprocket insert with retaining ring
• No. 8: V2251801, 3 ID360 springs for toothed discs
• No. 9: V2251701, ID360 sprockets (2 pcs) with spring and noise-reduction pad
• No. 10: V2500501, pad for noise reduction
• No. 12: V2252001, ID360 freewheel body HG11
• No. 12: V3440101, ID360 freehub body ED11
• No. 12: V2580101, ID360 freewheel body Sram XD
• No. 15: V2252201, Spacer ring for 9- and 10-speed cassettes
• No. 12: V2251501, shaft washer
• No. 13: Bearing cover, disc side
• No. 14: V2510801, end stop for 10x135 mm quick-release assembly
• No. 14: V2510901, end stop for 12x135 mm thru-axle assembly
• No. 14: V2510701, end stop for 12x142 mm thru-axle mounting
• No. 17: V2252901, ID360 QRM auto hub axle for Disc Centerlock hub

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
