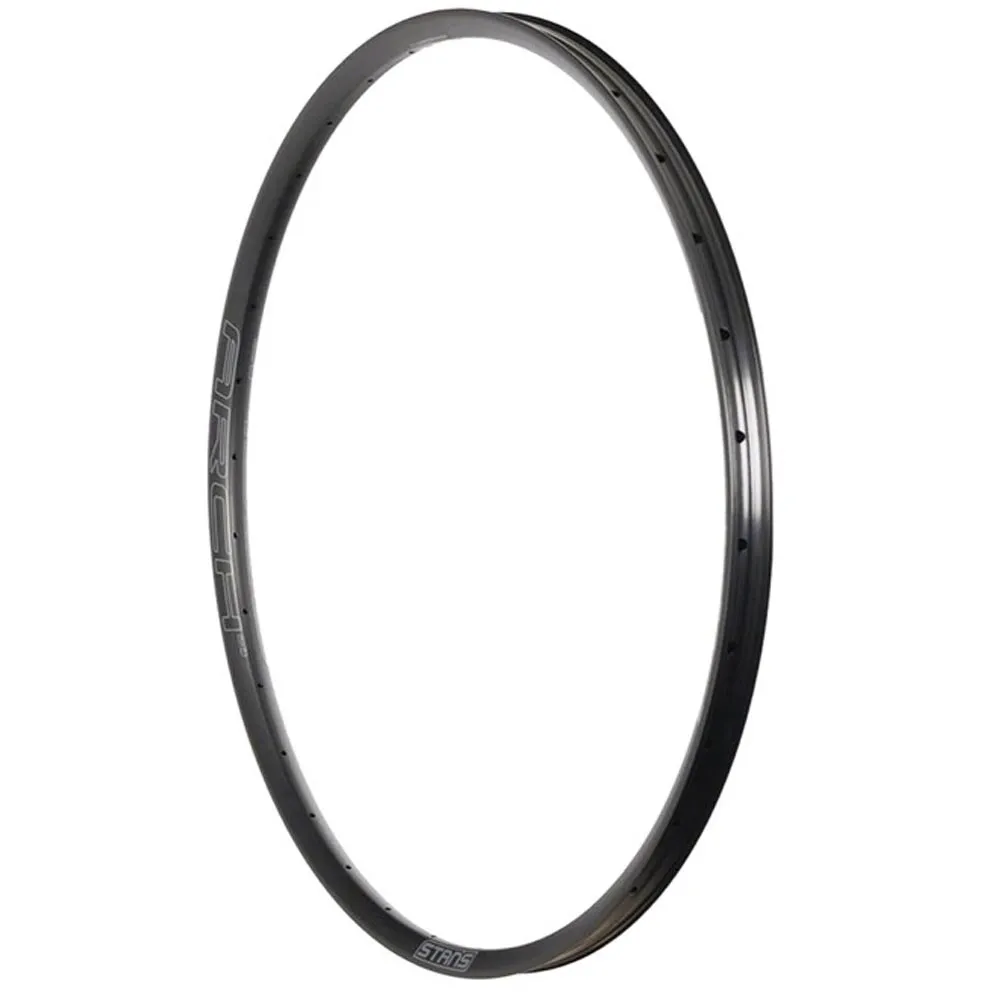

Stans NoTubes Arch MK4 rim

The Stans Arch Trail, Freeride and Enduro rims with an asymmetrical profile, 28 mm rim width, really sturdy yet weighing just 457 grams

Developed with the help of the Stans Enduro World Series team, the new Arch MK4 is ready to tackle any trail. Despite the increased rim width to 28 mm and featuring the proven lower BST rim bed, the new Arch MK4 retains its low weight for excellent acceleration and climbing performance on ascents. With the WideRight System introduced by Stans NoTubes, the rim width increases to 28 millimetres – for even better tyre support and full volume development. Inspired by Stans carbon rims, the new rim profile, combined with the new 6069 aluminium alloy, increases lateral stiffness and impact resistance whilst reducing the risk of snake bites.

The Stans NoTubes rims are perfectly designed, thanks to special rim flanges for fitting tubeless tyres. Thanks to the wide rim bed, the tyre is guided superbly and offers excellent rolling resistance. With the Stans NoTubes tubeless conversion kit, the ZTR Arch rim can be upgraded to a very lightweight tubeless rim. Thanks to the asymmetrical rim profile, very laterally stiff and durable wheelsets can be built using these rims.

Notubes BST

Notubes’ Bead Socket Technology. This special rim design features a wide rim bed with a low flange for high tyre stability and full tyre volume development. The BST technology helps retain air better in tubeless systems, resulting in less rotating mass and a virtually increased effective rim width compared to competitors. A wide rim also reduces tyre flex in corners and allows the tyre to be ridden at lower pressures. The ZTR rims are fully tubeless-compatible when used with rim tape and a valve.

Applications for the Stans NoTubes Arch rim:

The ZTR Arch MK4 rim forms the basis for a stable and lightweight freeride and enduro wheel

Stans NoTubes Arch MK4 rim technical specifications:

• 27.5 inches, ETRTO 584 x 28
• ERD: 561 mm
• Rim dimensions: Outer width 31.4 mm, rim width 28 mm, height 18.9 mm
• Black anodised
• Aluminium alloy
• Welded rim joint
• Weight: 457 grams
• Ideal for tyre widths from 2.2 to 2.5
• Rim tape required for tubeless fitting: 30 mm
• Application: All Mountain, Enduro, Freeride

Your custom wheel set with the Stans NoTubes ZTR Arch MK4 rim.

Ask us for a bespoke quote. We’ll build your dream wheelset, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
