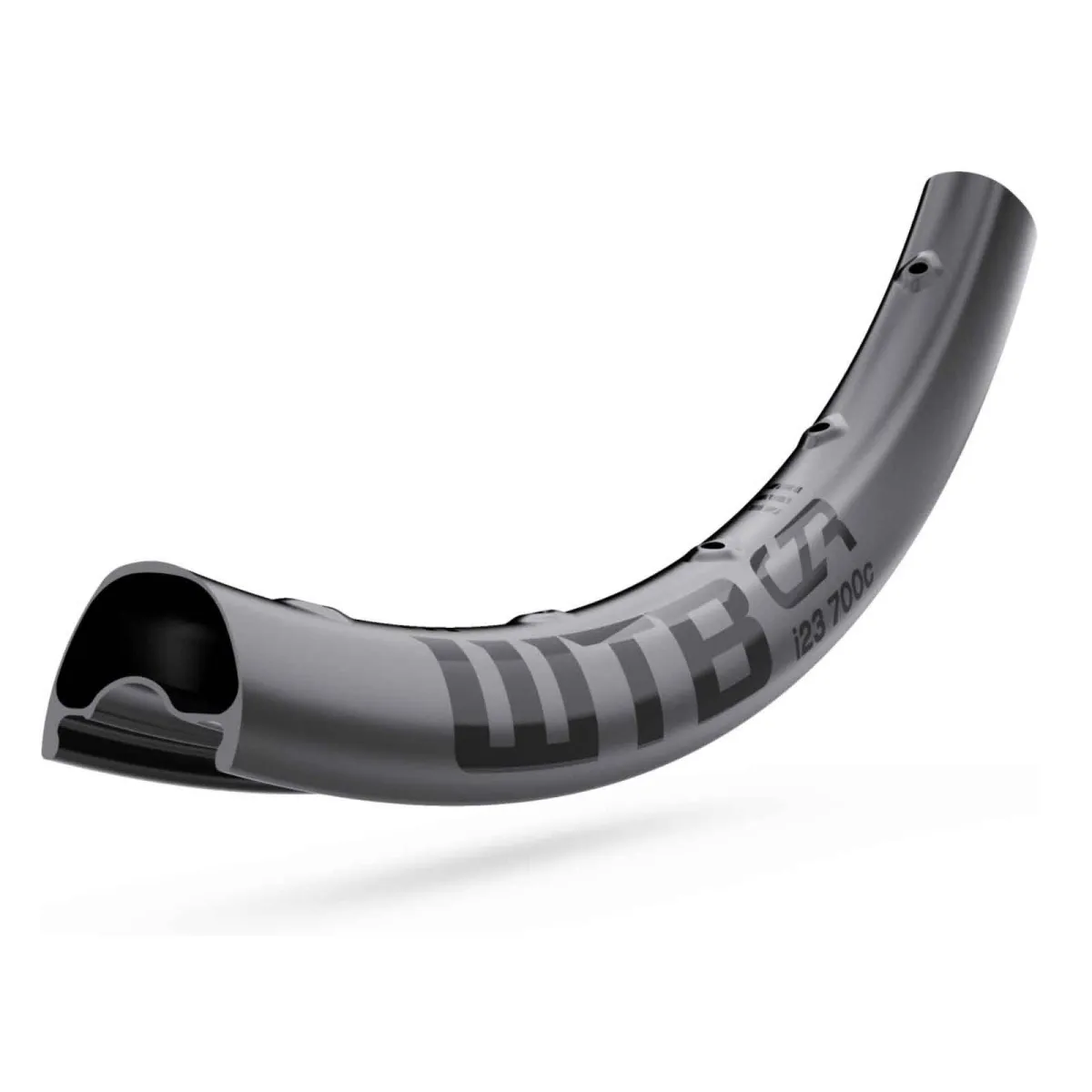

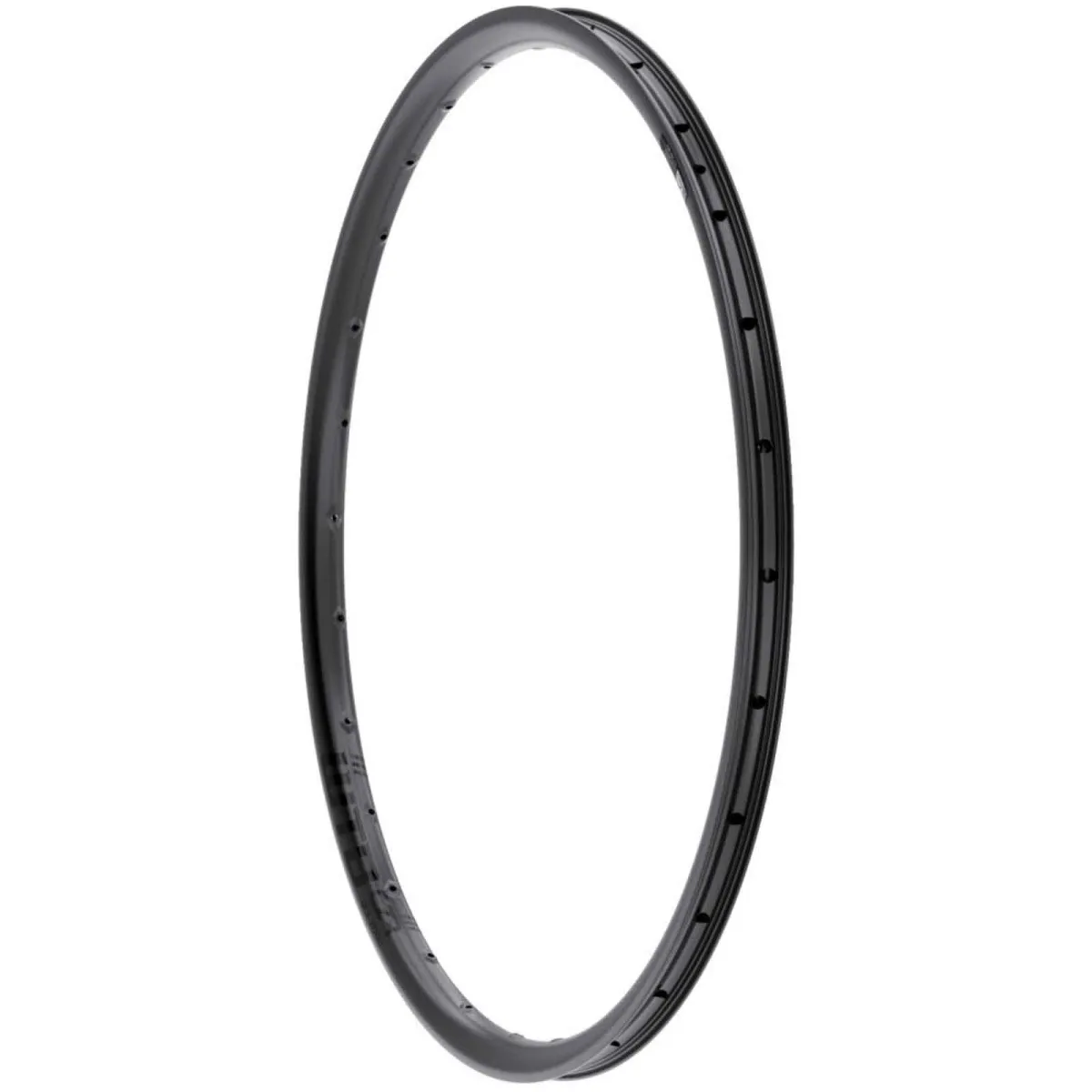

WTB CZR TCS bicycle rim

The super-lightweight, 331-gram, high-strength WTB carbon rims, with asymmetrically arranged spoke holes, built for use on gravel, all-road and cross-country mountain bikes.

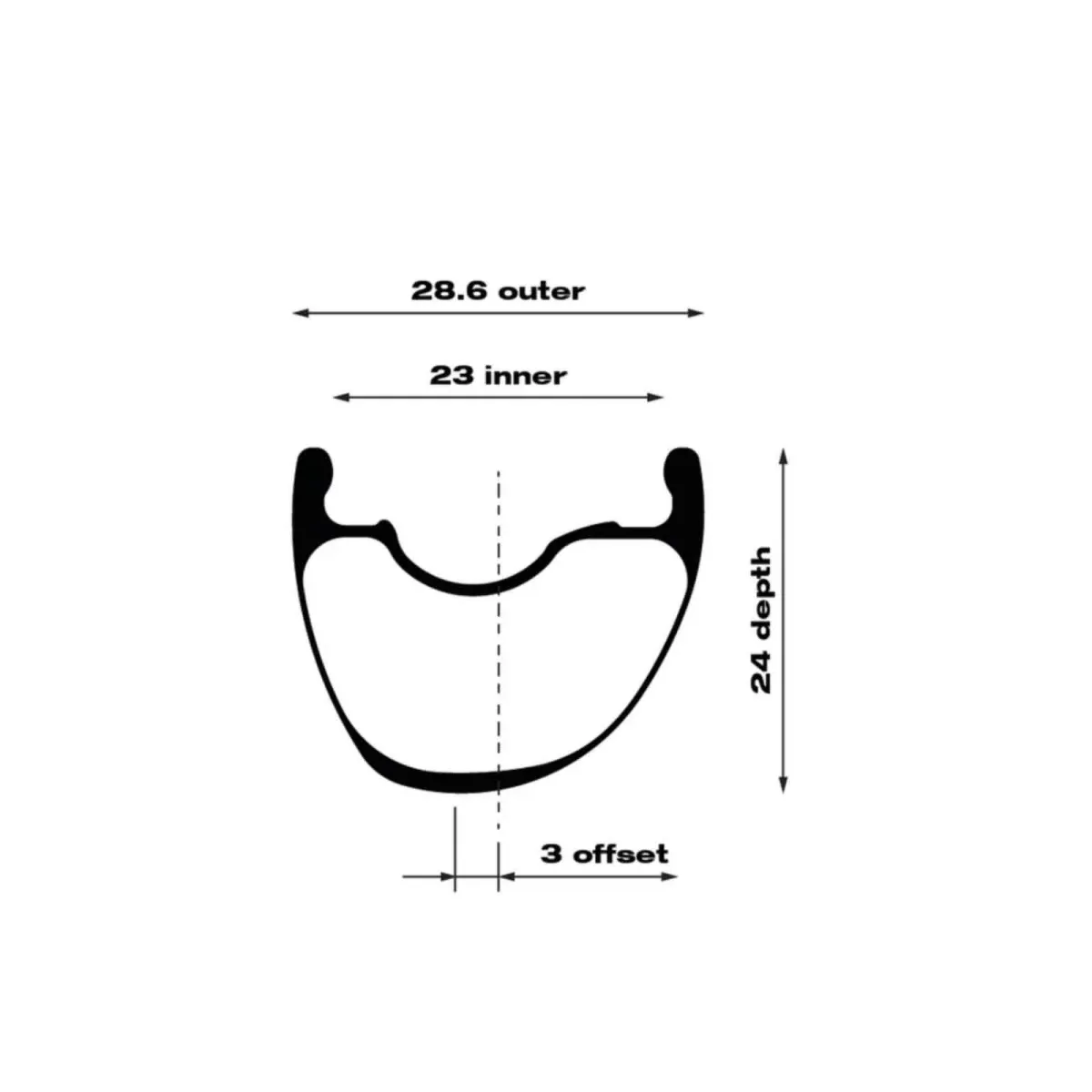

Wilderness Trail Bikes CZR i23 TCS Rims – Specifications and Dimensions:

• 29/28 inches, ETRTO: 622 x 23 / 700C
• Application: Gravel
• TCS: Tubeless Ready
• Material: Carbon
• ERD: 590 mm
• Hooked / Crotchet tubeless TC
• Required tubeless rim tape: 25 mm
• Includes Solid Strip
• Recommended tyre widths: 35–50 mm / 1.3–2.0 inches
• Weight: 345 grams (manufacturer’s specification)

Your custom wheel with the WTB CZR rim.

Ask us for a bespoke quote. We’ll build your dream wheelset, perfectly hand-built and trued. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

WTB CZR i23 Rim

The CZR i23 carbon rims minimise rotational mass, allowing you to break away early and stay ahead of the pack. The finely tuned carbon compliance creates a sense of unity with the terrain whilst reducing rider fatigue on long rides. Reinforced spoke holes increase reliability and allow for weight savings elsewhere. Subtle decals create a sleek look that matches the low weight. The CZR i23 is the gravel rim of choice if you’re looking for the best strength-to-weight ratio for long gravel days.

The angled design of the spoke holes prevents jamming and lateral stress at the spoke-nipple interface. This distributes the spoke tension more evenly across the nipple, rather than placing greater stress on one side. The natural angle between the spokes and the rim increases the longevity of both the spokes and the nipples.

The CZR carbon rims offer unbeatable stability whilst being lighter than the competition. Reinforced spoke beds, proven 4D spoke hole drilling and an asymmetrical design form the basis for an incredibly durable carbon rim. Combined with the Solid Strip integration of the TCS 2.0 tubeless system, you get a system that is not only easier to fit tubeless, but also virtually immune to pressure loss in the event of a broken spoke.

The patented 4D spoke hole ensures the best possible spoke nipple fit and distributes tension more evenly over a larger area. This ensures excellent durability. The integration of the all-new WTB Solid Strip into the TCS 2.0 rims delivers a tubeless system that is very easy to fit and highly reliable. A recessed channel in the centre of the TCS 2.0 rims allows for the installation of the all-new Solid Strip, which prevents the tubeless strip from sagging at the spoke holes and guarantees a smooth, even connection between tyre and rim.

WTB TCS:

TCS is WTB’s Tubeless-Ready system, which complies with international ISO/ETRTO standards. WTB is one of the few suppliers offering a complete range of Tubeless-Ready products; WTB wheels, tyres, rims, rim tape, valves and sealant are harmoniously matched and form a comprehensive and robust Tubeless-Ready package.
