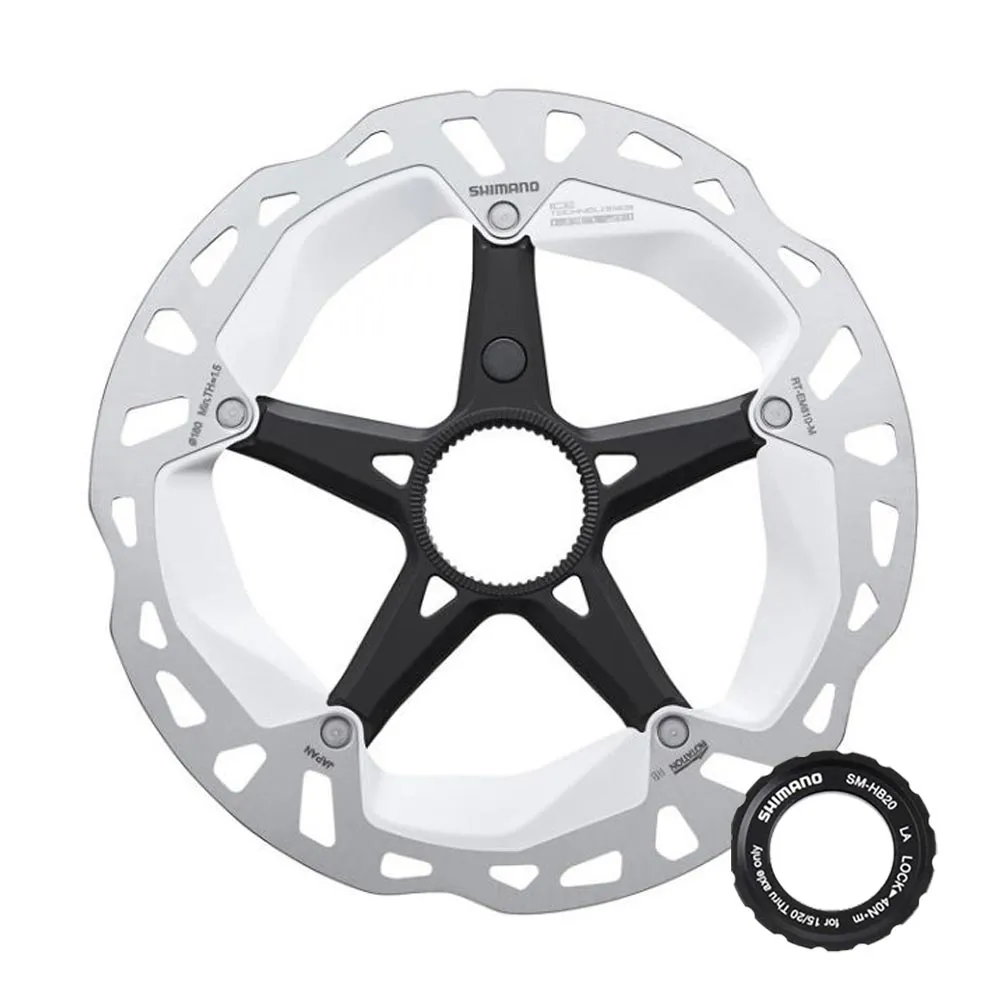

Shimano RTEM810 Centerlock brake disc

These brake discs, featuring an integrated magnet for speed detection, have been specially developed for e-bikes, but are of course also compatible with other bikes

The Shimano XT RT-EM 10 Ice Tech Centerlock brake discs on 4- or 5-star aluminium carriers are manufactured using a sandwich construction. The aluminium core is encased by the steel braking surface. This reduces heat build-up by a good 25 per cent and increases the durability of the Shimano MTB disc brakes. The revised Ice Tech Freeza brake discs at Deore XT level, RT-EM810, have been designed to ensure maximum heat dissipation, leading to more consistent braking performance and longer pad life.

External locking ring:

This lockring, featuring external tool teeth, can be fitted to all hub types, from 20 mm thru-axles to quick-release assemblies

Shimano XT Ice Tech Freeza brake disc technical specifications:

• Disc diameter 203 mm
• Weight: Disc 166 grams (manufacturer’s specification)
• With integrated magnet for e-bikes
• Disc thickness: 1.75 mm
• Wear limit 1.5 mm
• Compatible with all Shimano hydraulic disc brakes
• Includes lockring with external screw connection

Lockring with external screw connection – tool socket: 44 mm outer diameter with 16-tooth spline. Compatible tools e.g. Shimano TL-FC36, TL-FC32 or TL-FC33. Corresponds to the tool for Hollowtech II bottom bracket assembly

Shimano Ice Tech Freeza:

Freeza brake discs exhibit even less fading due to lower heat build-up compared to standard Shimano IceTec brake discs. The three-layer sandwich construction consists of stainless steel flanges and an aluminium core with integrated cooling fins. The two-piece design with the aluminium carrier dissipates heat effectively. The dirt-repellent design extends the service life of the disc and pads.

This Ice Tech brake disc is compatible with all Shimano hydraulic disc brakes.

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
