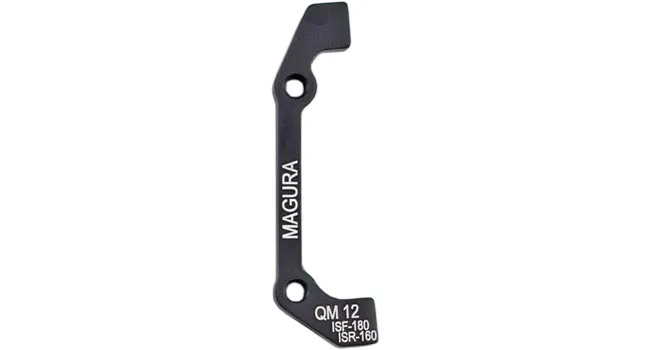

Magura QM12 Disc Adapter

The Magura QM8 adapter enables the installation of Magura disc brakes with Post Mount calipers on forks with IS 2000 caliper mounts and 180 mm discs. The QM 12 adapter is also used for fitting rear brakes with Post Mount calipers to rear stays with the IS 2000 standard and 160 mm discs.

Magura QM 12 Adapter compatibility:

• MT8 Disc
• MT7 Disc
• MT6 Disc
• MT5 Disc
• MT4 Disc
• MT2 Disc
• Louise Disc with PM brake caliper
• Marta Disc with PM brake caliper

These adapters are not compatible with the Marta, Clara and older 2006 Louise brakes fitted with IS 2000 calipers. Magura’s IS 2000 adapters are required for this purpose.

IS 2000 mount: Side-mounted. An adapter is always required to fit the Post Mount brake caliper; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle frames.
