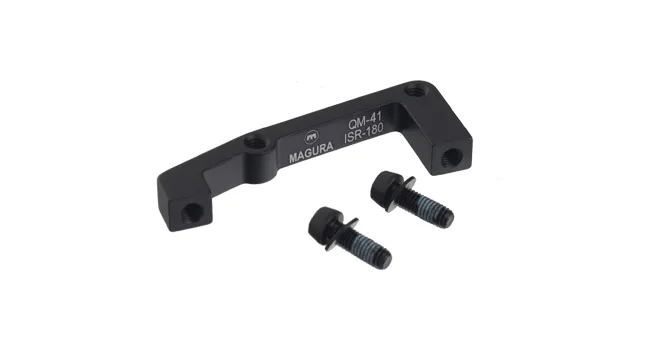

Magura QM 41 Disc Adapter

The Magura QM41 adapter enables the installation of Magura disc brakes with post-mount calipers on frames with IS 2000 caliper mounts and 180 mm discs.

Magura QM 41 Adapter compatibility:

• MT8 Disc
• MT7 Disc
• MT6 Disc
• MT5 Disc
• MT4 Disc
• MT2 Disc
• Louise Disc with PM brake caliper
• Marta Disc with PM brake caliper

These adapters are not compatible with the Marta, Clara and older 2006 Louise brakes fitted with IS 2000 calipers. Magura IS 2000 adapters are required for these.

IS 2000 mount: Side-mounted. An adapter is always required to fit the Post Mount brake caliper; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle frames.
