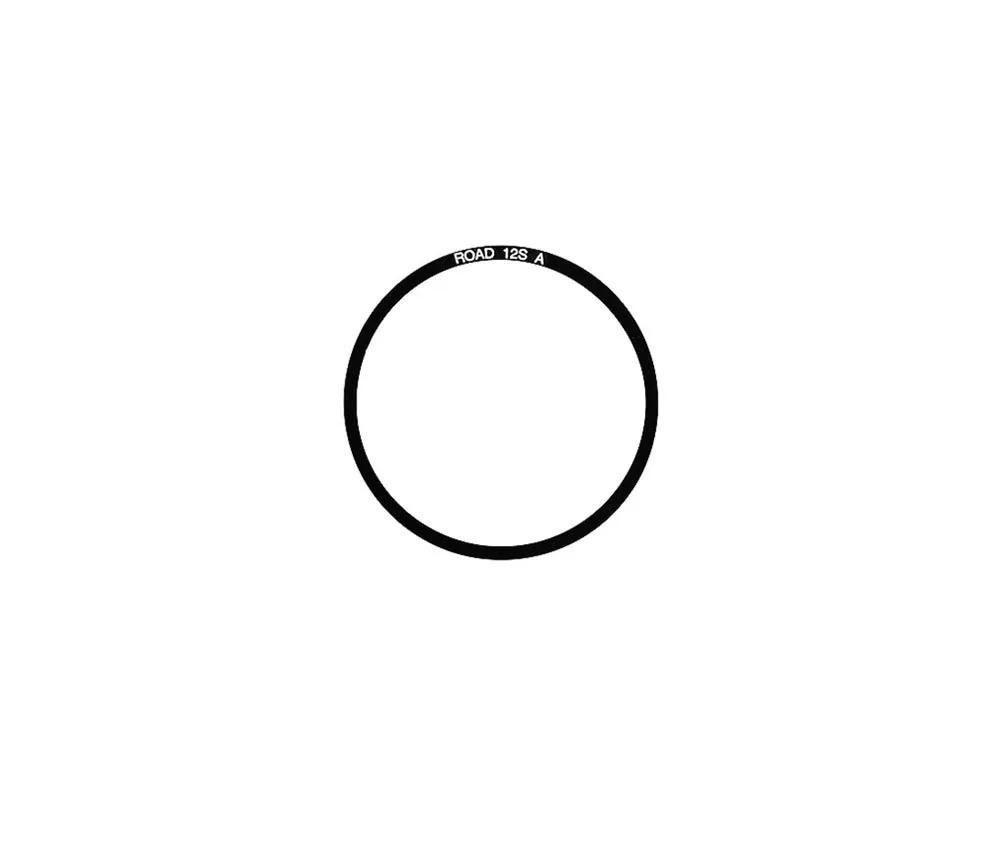

Shimano spacer ring

Shimano spacer ring, also known as a low-level spacer, with a self-adhesive surface, prevents noises such as clicking or creaking. These noises are attributable to the manufacturing process at Shimano and varying production tolerances. Compatible with the Shimano cassettes and gear ranges listed below.

Compatible with:

• Shimano Dura-Ace CS-R9200 12-speed cassette; gear ratios 11-30, 11-34
• Shimano Ultegra CS-R8100 12-speed cassette; 11-30, 11-34

All Shimano Dura-Ace CS-R9200 12-speed cassette spare parts:

• No. 1: Y0MV98010 – Lockring
• No. 2: Y10Z04000 - Washer for lockring
• No. 3: Y0MV11000 - 11-tooth sprocket
• No. 4: Y0MV12000 - 12-tooth sprocket
• No. 5: Y0MV13000 - 13-tooth sprocket
• No. 6: Y0MV14000 – Pinion, 14 teeth
• No. 7: Y0MV15000 – Pinion, 15 teeth
• No. 8: Y0MV16100 – 16-tooth pinion
• No. 9: Y0MV98020 - Sprocket unit 17-19 teeth for 11-30
• No. 10: Y0MV98030 - Sprocket unit 21-24-27-30 teeth for 11-30
• No. 11: Y0MV40020 - Spacer ring A for 14-tooth sprocket
• No. 12: Y0MV40021 - Spacer ring B for 15- and 16-tooth sprockets
• No. 13: Y0MV01000 – Spacer ring for cassette
• No. 14: Y0MV98040 - Sprocket unit 17-19 teeth for 11-34
• No. 15: Y0MV98050 - Sprocket unit 21-24-27-30-34 teeth for 11-34
• No. 16: Y13098730 - Cassette tool TL-SR24
• No. 17: Y12009230 - Lockring tool TL-LR15

All Shimano Ultegra CS-R8100 12-speed cassette spare parts:

• No. 1: Y0NR98010 - Lockring
• No. 2: Y10Z04000 - Washer for lockring
• No. 3: Y0MV11000 - 11-tooth sprocket
• No. 4: Y0MV12000 - 12-tooth sprocket
• No. 5: Y0MV13000 - 13-tooth sprocket
• No. 6: Y0NR14000 – Pinion, 14 teeth
• No. 7: Y0NR15000 – Pinion, 15 teeth
• No. 8: Y0MV16100 – Pinion, 16 teeth
• No. 9: Y0NR98020 - Pinion unit 17-19 teeth for 11-30
• No. 10: Y0NR98030 - Sprocket unit 21-24-27-30 teeth for 11-30
• No. 11: Y0MV40020 - Spacer ring A for 14-tooth sprocket
• No. 12: Y0NR00200 - Spacer ring B for 15- and 16-tooth sprockets
• No. 13: Y0MV01000 – Spacer ring for cassette
• No. 14: Y0NR98040 - Sprocket unit 17-19 teeth for 11-34
• No. 15: Y0NR98050 - Sprocket unit 21-24-27-30-34 teeth for 11-34
• No. 16: Y13098730 - Cassette tool TL-SR24
• No. 17: Y12009230 - Lockring tool TL-LR15
