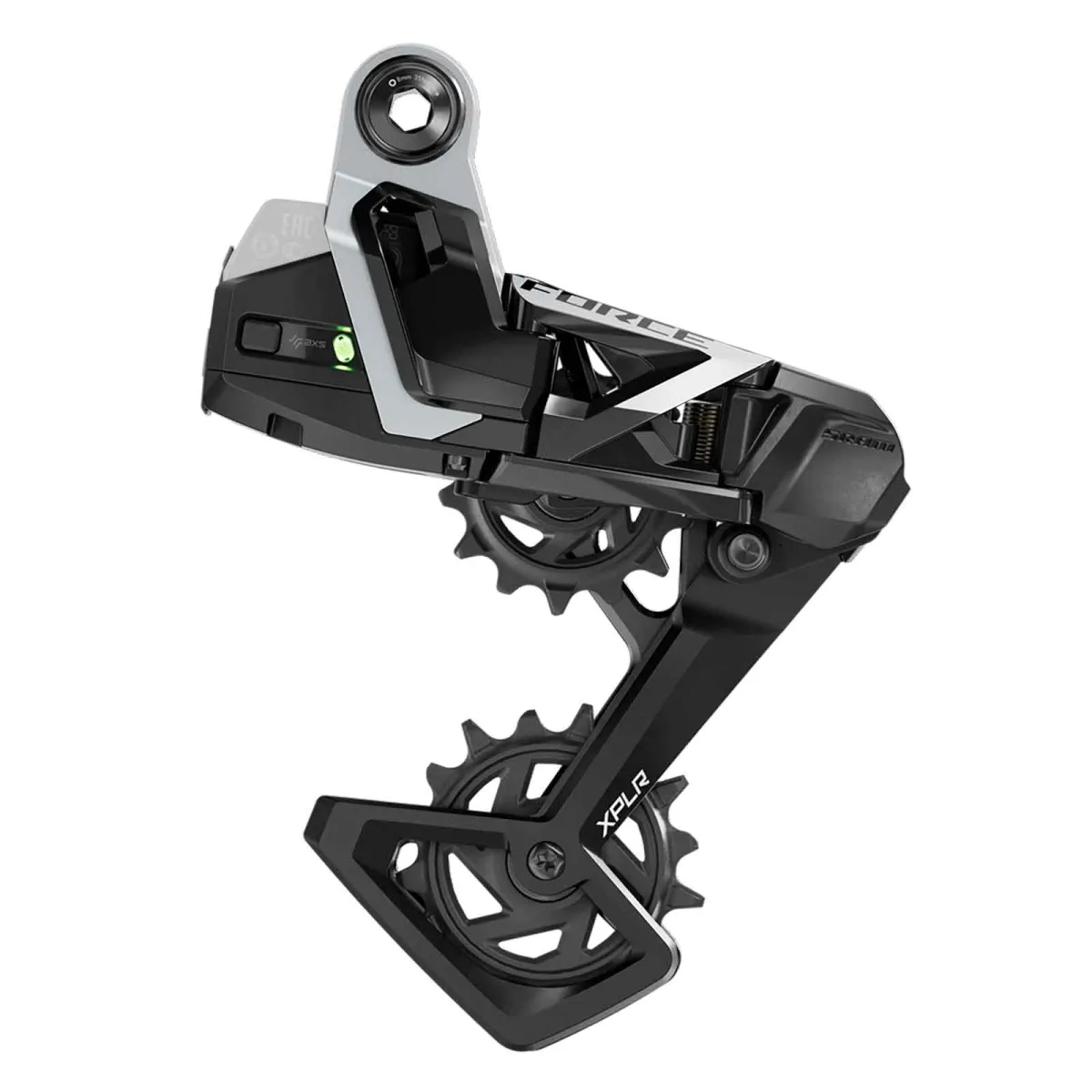

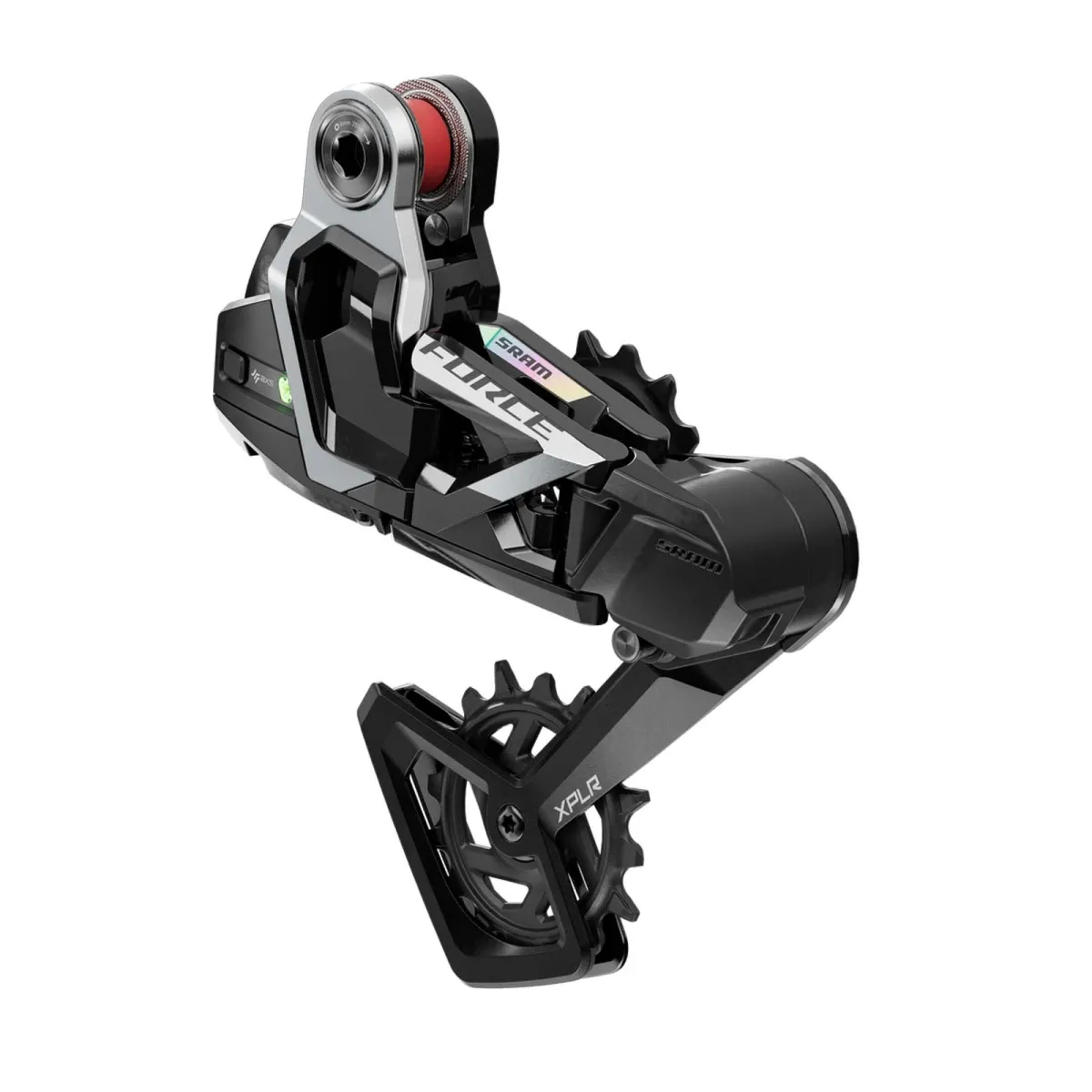

Sram Force XPLR AXS Gravel Rear Derailleur | RD-FRC-1E-E1

The new Sram Force XPLR AXS Fluu Mount rear derailleur for gravel and cross bikes, drivetrains with a single chainring at the front and for 13-speed cassettes with a 10-46 tooth range.

Suitable only for frames with UDH specification (Universal Derailleur Hanger), an interface without a derailleur hanger; the rear derailleur cannot be fitted to frames with conventional derailleur hangers.

Included in delivery:

• SRAM Force XPLR AXS E1 rear derailleur, 1x13-speed, UDH Full Mount, without battery

Sram Force XPLR AXS Full Mount rear derailleur technology and dimensions:

• Application: Gravel Cross 13-speed
• Full Mount, UDH interface compatible only
• Technologies: AIREA, eTap, Exact Actuation
• Compatibility: AXS eTap electronic
• Material: Aluminium, steel, plastic
• Shift lever Carbon Aluminium
• For cassettes with 10–46 teeth
• Colour: black

Compatibility:

The Sram Force XPLR AXS rear derailleur is compatible with all AXS shift levers. The maximum cassette size is 46 teeth, the shifting range is 36 teeth

Sram Force AXS RD-FRC-E-E1 rear derailleur:

The resilience of Full Mount No bent derailleur hangers after crashes, knocks or rough handling on the trail. No more adjustment screws. Just fast, precise shifting – specifically designed for gravel riding. The 1x-specific Force XPLR AXS rear derailleur offers incredible chain control, whilst the straight cage design prevents dirt or heavy loads from pushing this derailleur into the wheel. This 1x-specific component is robust and built to withstand just about anything.

• 1x-specific for use with the 10-46-tooth XPLR
• 13-speed cassette and only with flat-top chains
• The hanger-free interface and full-mount attachment enable the most precise shifting and ultimate protection against impacts
• Simple setup, with no adjustment screws

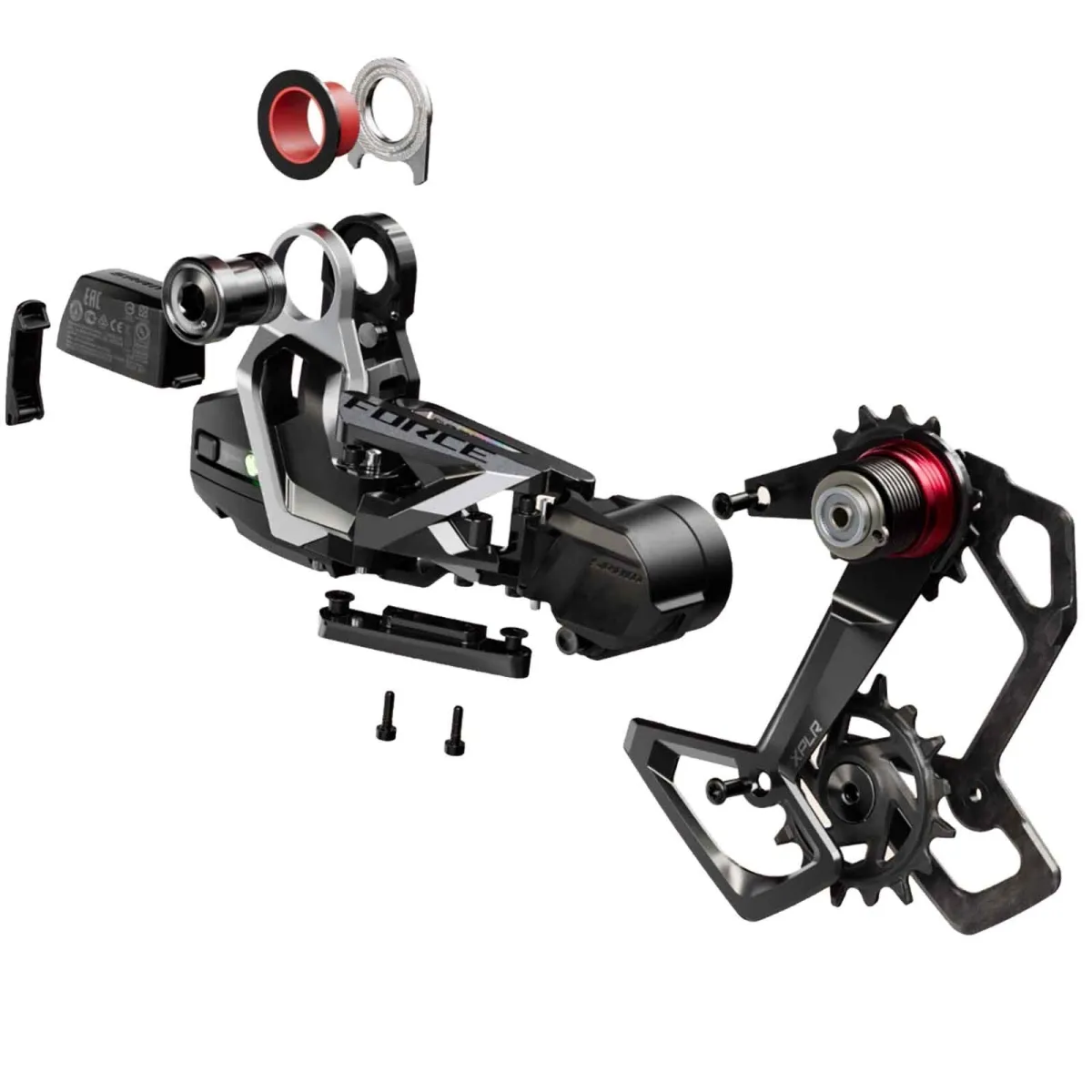

• Replaceable and repairable parts
• AXS-compatible for easy setup, quick customisation and high reliability
• Compatible with 1x13-speed drivetrains
• Larger X-SYNC rear derailleur pulleys for greater efficiency

SRAM AXS technology

AXS is the electronic integration platform that connects SRAM’s electronic bike components and software. AXS components communicate wirelessly using 128-bit encryption. Each time a groupset comprising, for example, shift levers, a front derailleur and a rear derailleur is paired, a unique code is generated to prevent interference with other riders. The SRAM AXS app allows you to view battery status, adjust component behaviour, customise controllers, receive maintenance reminders and update the firmware. This app is available free of charge from the App Store for iOS and Android.

Full Mount, UDH mounting:

A Full-Mount rear derailleur is mounted on frames with a UDH interface. Centring on the wheel axle/thru-axle creates a system that has no weak points under load. As it is always in the same position relative to the cassette, no adjustment screws are required during setup. Prepare. Attach. Tighten. The full-mount rear derailleur can be installed in three simple steps without any special tools.

The UDH interface, the universal derailleur hanger, refers to a universal design for derailleur mounting used by various brands. The derailleur is mounted using the thru-axle and has a precisely defined position. Furthermore, this system is significantly more stable and therefore less prone to faults.

UDH-compatible frames are equipped with a hangerless interface to which full-mount rear derailleurs can be fitted. Additionally, UDH derailleur hangers are available to accommodate conventional rear derailleurs.

SRAM Orbit Technology

Orbit technology uses a special silicone fluid as part of a very lightweight damping system. Compared to a conventional friction clutch system, this technology generates no additional resistance on the derailleur spring during slow or light movement. This means smoother shifting and easier removal of the rear wheel. Whilst riding, the fluid damper keeps the chain reliably under control. Offering high reliability and chain tension for 2x and 1x systems.
