Spare part: Shimano Deore XT Di2 RD-M8050 and GRX Di2 RD-RX817

Included in item 6 of the exploded view.

Shimano Deore XT Di2 RD-M8050 11-speed rear derailleur spare parts:

• No. 1: Y5ZN98010 – Axle unit
• No. 2: Y5ZN00023 – Axle, rear derailleur hanger
• No. 3: Y5ZN98020 – Housing unit
• No. 4: Y5Y198070 – Housing mounting screws
• No. 5: Y5ZN98030 - Complete housing - Sold out

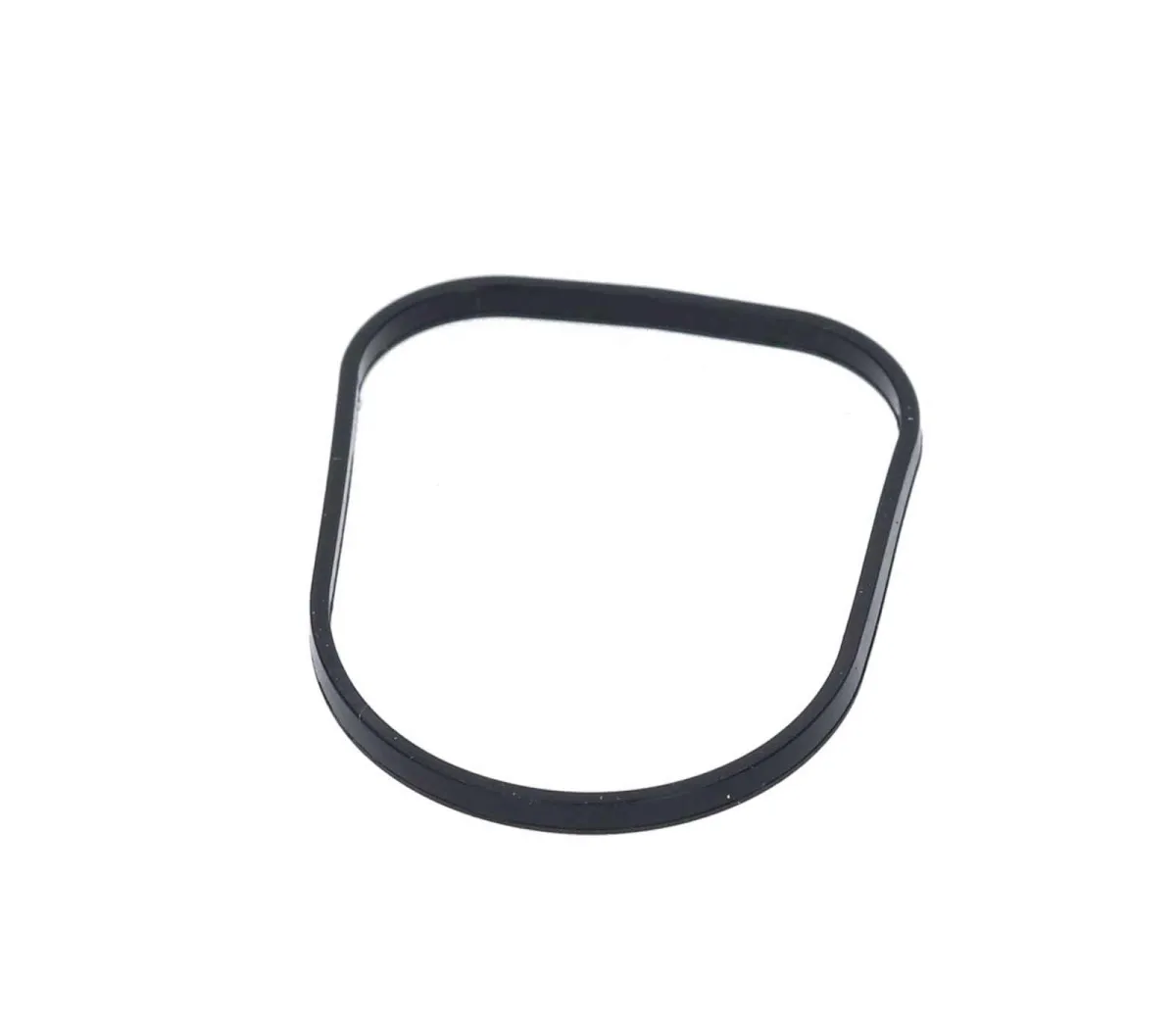

• No. 6: Y5ZN00031 – Housing seal
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y5ZN98040 - Gear lever unit
• No. 10: Y5PV98060 - Shift shaft unit
• No. 11: Y5ZN98050 – Tension spring adjustment screw
• No. 12: Y5ZN98060 – Stop screws, complete
• No. 13: Y5PU13100 – Tension spring
• No. 14: Y5PU130T0 – Tension spring seal
• No. 15: Y5ZN98070 – Outer GS chain guide plate, complete
• No. 16: Y5RT98120 – Set of shift rollers
• No. 17: Y5PU09100 – GS inner chain guide plate
• No. 18: Y5V598140 - Shift roller screws
• No. 19: Y0412080A – Special grease for stabiliser
• No. 20: Y5PU130Y0 - Rubber boot

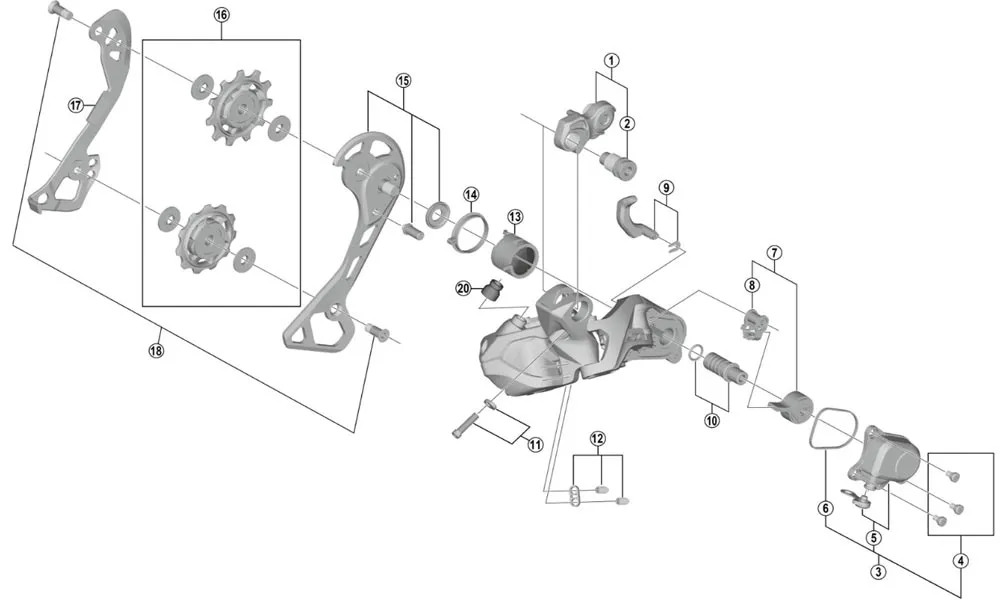

Shimano GRX Di2 RD-RX817 11-speed rear derailleur spare parts:

• No. 1: Y3FC98010 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for rear derailleur hanger
• No. 3: Y3HT98020 - Complete derailleur housing
• No. 4: Y5Y198070 - Screws for derailleur housing
• No. 5: Y3HT98030 - Derailleur housing + cap
• No. 6: Y5ZN00031 - Seal for derailleur housing
• No. 7: Y3HT98040 - Stabiliser unit
• No. 8: Y3HT98050 - Cam unit
• No. 9: Y3HT98060 - Control lever unit
• No. 10: Y3HT98070 - Shift shaft unit
• No. 11: Y3E998040 – Adjustment screw, complete, for shaft unit
• No. 12: Y5ZN98060 – Stop screws, complete
• No. 13: Y5PU130Y0 – Rubber sleeve for Di2
• No. 14: Y5PU13100 - Tension spring
• No. 15: Y5PU130T0 – Sealing ring for tension spring
• No. 16: Y3HT98080 – Outer chain guide, complete
• No. 17: Y3E998010 - Set of derailleur pulleys
• No. 18: Y5ZN00080 – Inner chain guide
• No. 19: Y3HR98050 – Shift roller screws
• No. 20: Y04121000 – Special grease for stabiliser
