Sram Force 1 Hydraulic Brake System

The hydraulic braking system from the Sram Force CX1 series offers loss-free braking power transmission in combination with the ergonomic Sram brake levers.

Flat Mount Standard:

The new Flat Mount caliper standard for road bike brakes reduces weight and offers a significantly sleeker look. With the Flat Mount standard, the rear brake caliper sits directly on the chainstay; no adapter is required for mounting the brake caliper. The bolts pass through the chainstay from below directly into the brake caliper. A flat adapter is still required on the fork. The adapter is screwed onto the rear of the fork leg, and the brake sits directly on the adapter.

The bolt spacing for the front fork mount is 70 mm, and 35 mm for the frame mount

Shift lever Sram Force 1 hydraulic brake lever

The Sram Force CX1 brake levers feature a redesigned hydraulic master cylinder with a smaller, more ergonomic housing. The ErgoDynamic design: first-class control and comfort, new grip width adjustment adaptable to all hand sizes. The individual grip width adjustment (Reach Adjus) for brake and shift levers is now even easier to access using a standard Allen key. The new clamp allows for a better fit and adjustment for modern carbon and ergonomic handlebars.

Sram Force Hydraulic Disc Brake

The disc brakes from the Force series, designed for brake disc sizes up to 160 mm. The hydraulic Sram Force 22 disc brake offers optimum braking performance with minimal operating forces and precise modulation. The loss of power and friction caused by cable transmission in classic cable-actuated brakes is eliminated with this system. Braking performance remains consistent in all weather conditions. Thanks to the separation of the rim/tyre and the braking surface, issues with heat build-up are elegantly resolved.

Sram Connectamajig

The Connectamajig is a hose connector that ensures simple, quick and convenient installation of the SRAM Force 22 hydraulic braking system. The brake lines can be routed both externally and internally and are compatible with SRAM 22 and SRAM S-700 hydraulic braking systems.

SRAM Force CX-1 hydraulic disc brake technology:

• Left brake lever assembly
• Material: Carbon brake lever
• Other: Ergonomic design and improved comfort with reach adjustment and minimal weight, internally and externally routed cables, and longer, optimised levers
• Hydraulic brake cylinder
• Easy bleeding
• Required oil: Dot 5.1
• Hose length 950 mm
• Compatible brakes: Sram Red 22, Force 22, Rival 22 hydraulic rim and disc brakes

SRAM Force hydraulic flat-mount disc brake:

• Flat Mount standard
• Optimised power and modulation for road bikes and cyclocross
• 18 mm brake caliper piston
• Fully sealed system protects against contamination
• Tool-free reach adjustment
• Recommended brake discs: Sram Centerline
• Recommended brake disc sizes: 160 mm for road, 140 mm for cyclocross

Total weight including brake: 471 grams

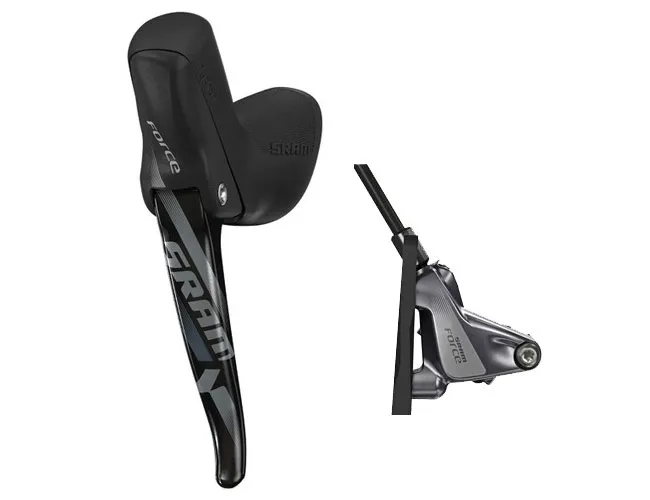

Included in delivery: Sram Force CX1 brake lever plus hydraulic Force front flat-mount disc brake including brake pads, 950 mm brake hose, fully pre-assembled and bled
