Campa Ekar disc brake

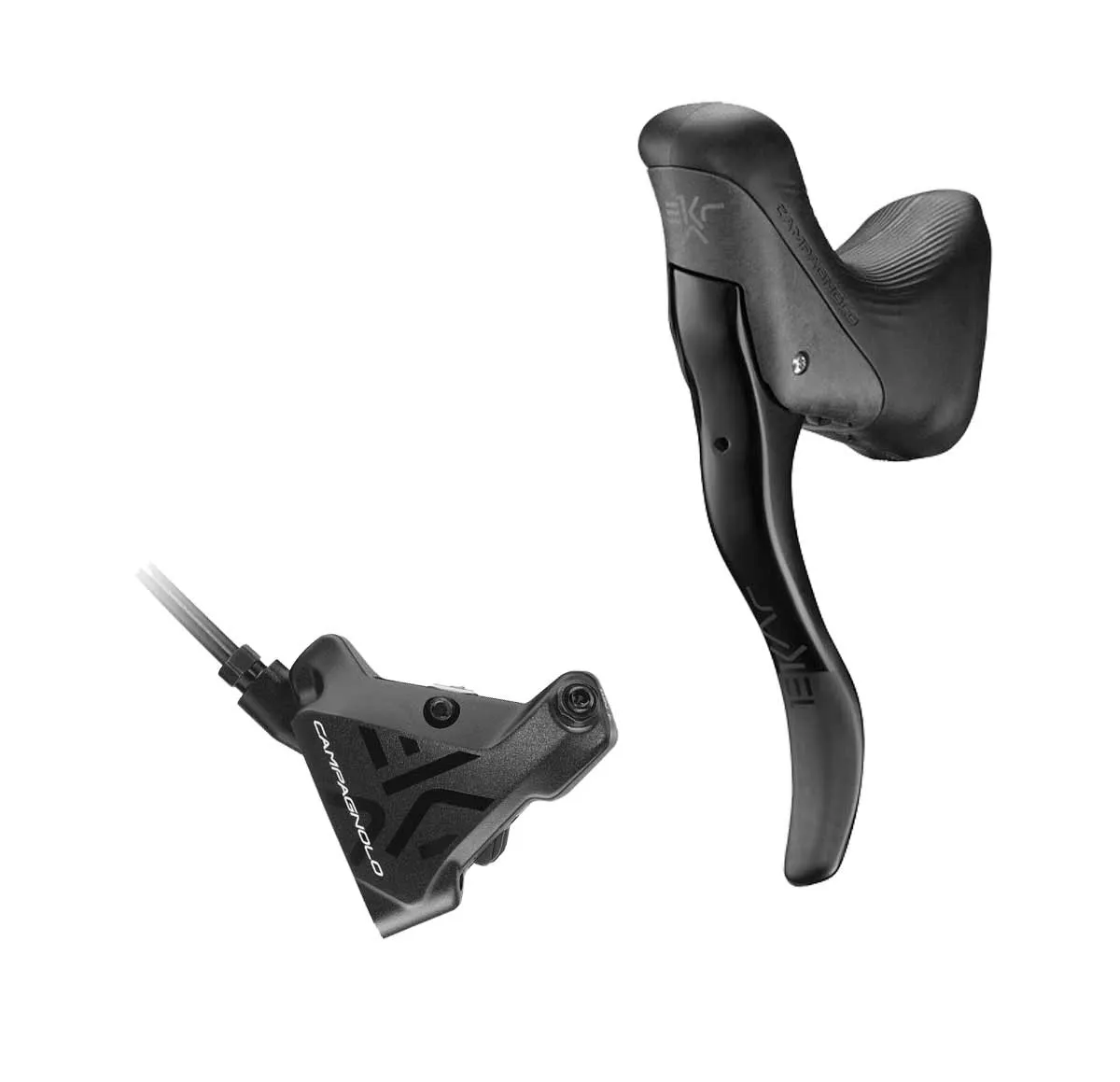

The left brake lever with flat-mount caliper from the Campagnolo Ekar series. Thanks to the 200 mm cable, the caliper can be fitted at both the front and rear. Suitable adapters are available separately.

Lightweight and reliable, the Ekar gravel groupset from Campagnolo. Named after Mount Ekar, Campagnolo’s Ekar 13-speed groupset is no conventional groupset. With a wide range of gravel-specific combinations and no compromises, Ekar is designed from the ground up to deliver optimal performance, the best riding experience and maximum reliability for your gravel, all-road and endurance routes on the toughest terrain you face and where you want to challenge yourself. From the outset, our engineers and design team tested and pursued the idea of a 1x system, considering it the most suitable for gravel, whilst taking on the challenge of creating the lightest, most efficient and most precise drivetrain for this type of use: the Ekar groupset.

Campa Disc Brake Levers Ekar

Campa Disc Flat Mount brake calipers:

The flat-mount calipers of Campagnolo’s disc brakes offer excellent stability thanks to their 22 mm pistons made from Penol resin, as well as magnetic pad retention for simple and hassle-free replacement. In addition to Campagnolo’s typically perfect workmanship, the brakes feature a wear indicator and smooth, friction-free operation. Campagnolo offers two different calipers for the front wheel flat mount brake, with a separate model for 140 mm and 160 mm rotors respectively. The 160 mm version is supplied with mounting bolts. The 160 mm variant cannot be converted to 140 mm. The mounting bolts for the rear brake calipers are not included and are available separately in different lengths to suit different rear triangle thicknesses

Campagnolo Ekar disc brakes technology:

• Carbon lever housing
• Vari-Cushion hand protection
• No-Bulge cable routing
• Adjustable lever reach
• Adjustable response
• Organic brake pads
• Cable length 2000 mm
• Weight approx. 220 / 110 grams per Ergopower / brake caliper (manufacturer’s specification)

Scope of delivery for Campagnolo Ekar disc brake:

Campa Ekar left-hand brake lever, 2000 mm disc hoses with hose connectors, flat mount brake caliper for 140 mm discs, without adaptor and oil

The bleeding kit and fluid are not included, and additional frame mounting bolts are required for the Flat Mount rear calipers. These are available in various lengths and are also not included.

Available Flat Mount brake caliper bolts:

• Item No. AC18-DBSC19, length 19 mm for rear stays 10–14 mm thick
• Item No. AC18-DBSC24, length 24 mm for rear stays 15–19 mm thick
• Item No. AC18-DBSC29, length 29 mm for rear stays 20–24 mm thick
• Item No. AC18-DBSC34, length 34 mm for rear stays 25–29 mm thick
• Item No. AC18-DBSC39, length 39 mm for rear stays 30–34 mm thick
• Item No. AC18-DBSC44, length 44 mm for rear stays 34–39 mm thick

Available Falt Mount brake caliper adaptors:

• Item No. AC18-DBADR6, front wheel adapter for 140 and 160 mm disc sizes
• Item No. AC21-DBADR, rear wheel adapter from 140 to 160 mm disc size

Available Campagnolo brake discs:

• Item No. DB-140S, 140 mm disc size, Centerlock without lockring
• Item No. DB-160S, 160 mm disc size, Centerlock without lockring

Herstellerinformation: Campagnolo, Via della Chimica 4, 36100 Vicenza, Italy, https://www.campagnolo.com
