Shimano Deore XT RD-M781 spare part

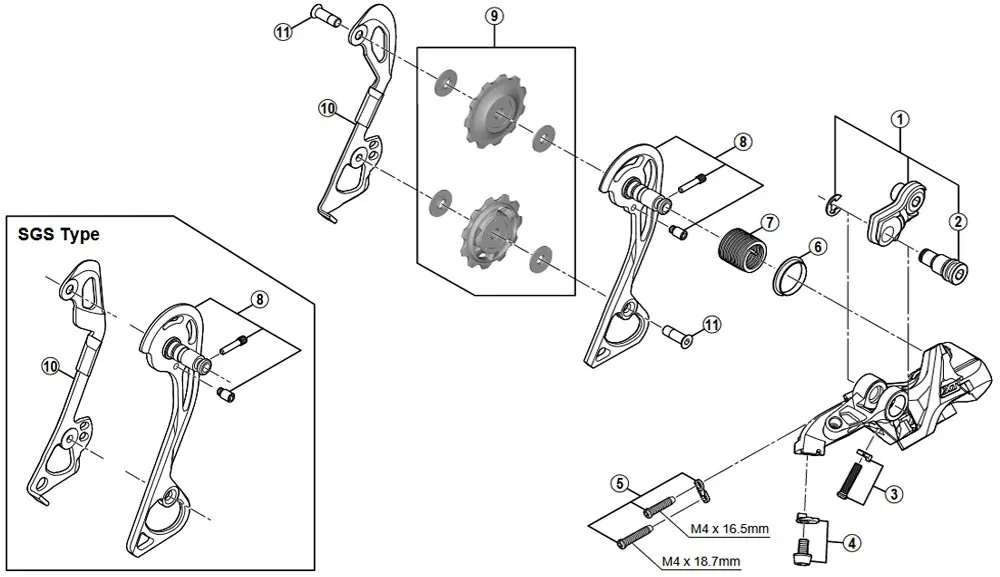

Included in spare parts set no. 1 and illustrated.

Shimano Deore XT RD-M781 10-speed rear derailleur spare parts:

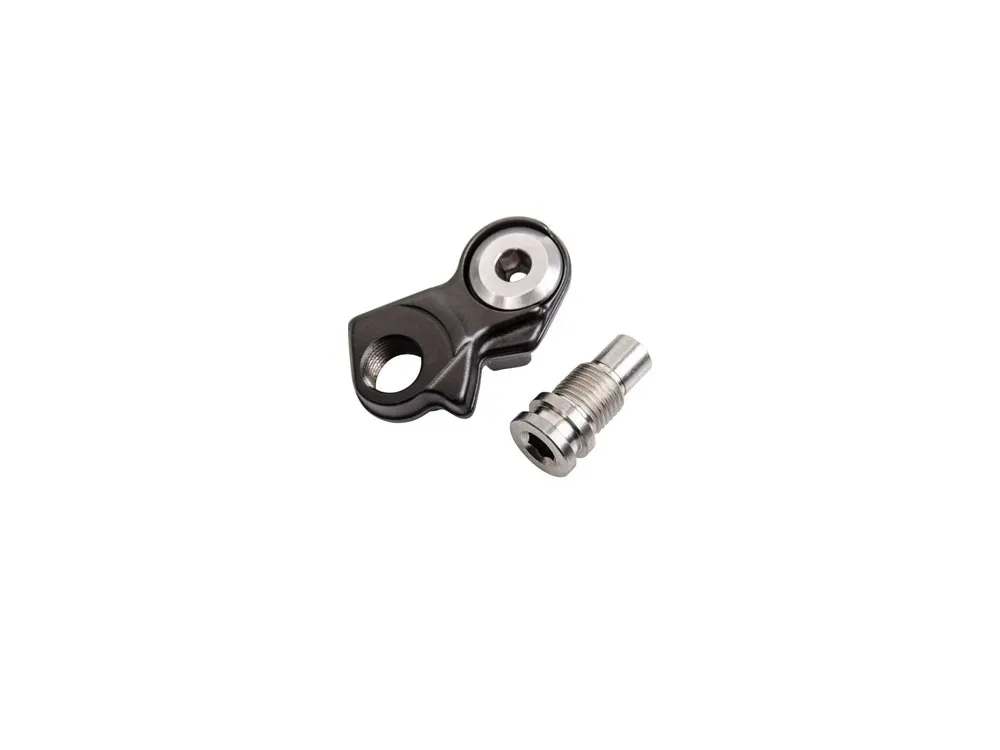

• No. 1: Y5Y098010, rear derailleur hanger complete with fixing bolt
• No. 2: Y50Y17000, fixing bolt for rear derailleur hanger (direct mount)
• No. 3: Y5XP98030, adjustment screw and plate
• No. 4: Y5W798030, cable clamp screw and plate
• No. 5: Y5W798020, Stop screws and plate
• No. 6: Y5UC14000, Sealing ring P for tension spring P
• No. 7: Y5W722000, tension spring P
• No. 8: Y5Y098020, GS outer chain guide plate with stop pin and screw
• No. 8: Y5Y098030, SGS outer chain guide plate with stop pin and screw
• No. 9: Y5XF98130, set of sprockets for GS and SGS
• No. 10: Y5XC09100, GS inner chain guide plate
• No. 10: Y5Y010000, SGS inner chain guide plate
• No. 11: Y53M24400, Shift roller screws (top and bottom), 2 pieces
