Spare part: Shimano XTR Di2 FD-M9070 front derailleur

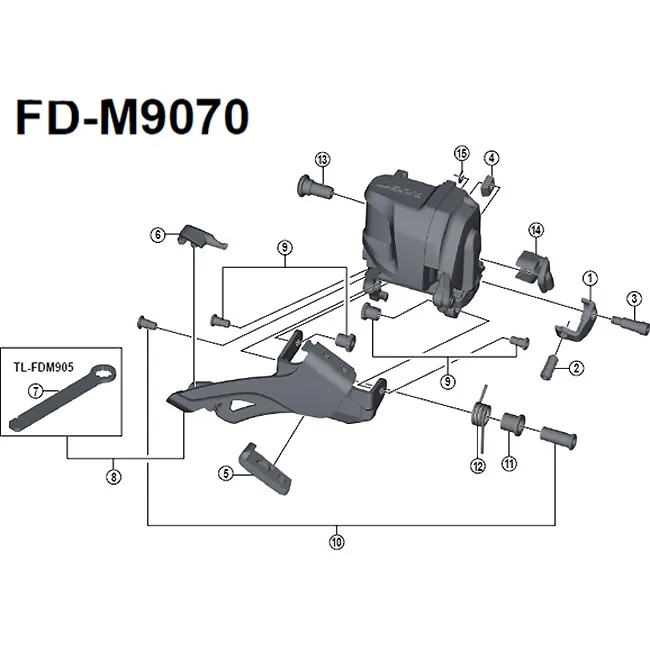

Included in the scope of delivery No. 17 M-size of the exploded view

Shimano XTR Di2 FD-M9070 front derailleur spare parts:

• No. 1: Y5R5070D0, adjustment plate
• No. 2: Y6AM82200, adjustment screw for adjustment plate SOLD OUT
• No. 3: Y5R5070C0, adjustment screw for adjustment plate
• No. 4: Y5R5070B0, Stop plate
• No. 5: Y5R5070V0, Upper rubber pad A for chain guide
• No. 6: Y5R507100, Lower rubber pad B for chain guide
• No. 7: YEZY00001, Shimano TL-FDM905 assembly tool for installation and removal
• No. 8: Y5R598010, Shimano TL-FDM905 installation tool and double chain guide
• No. 9: Y5R498020, chain guide screw and bushing for chain guide
• No. 10: Y5R498030, Return spring screw and bolt
• No. 11: Y5R5070P0, return spring bushing
• No. 12: Y5R5070R0, return spring
• No. 13: Y5R5070S0, fixing screw for derailleur housing
• No. 14: Y5R5070T0, plug cover
• No. 15: Y7DE18000, Stop E-ring D2 for stop plate
• No. 16: Y5R007000, clamping screw M5x8.5mm for derailleur adapter SM-FD905H / SM-FD905L
• No. 17: Y57Y98030, clamp adapter band for S-size / diameter 28.6 mm
• No. 17: Y57Y98040, clamp adapter band for M-size / diameter 31.8 mm
• No. 18: Y5R230000, Clamping screw M6x14.5mm for derailleur adapter SM-FD905D

Available derailleur adapters for Shimano XTR Di2 FD-M9070:

• SM-FD905H, front derailleur adapter, high mount
• SM-FD905L, front derailleur adapter, low mount
• SM-FD905D, front derailleur adapter, Direct Mount
