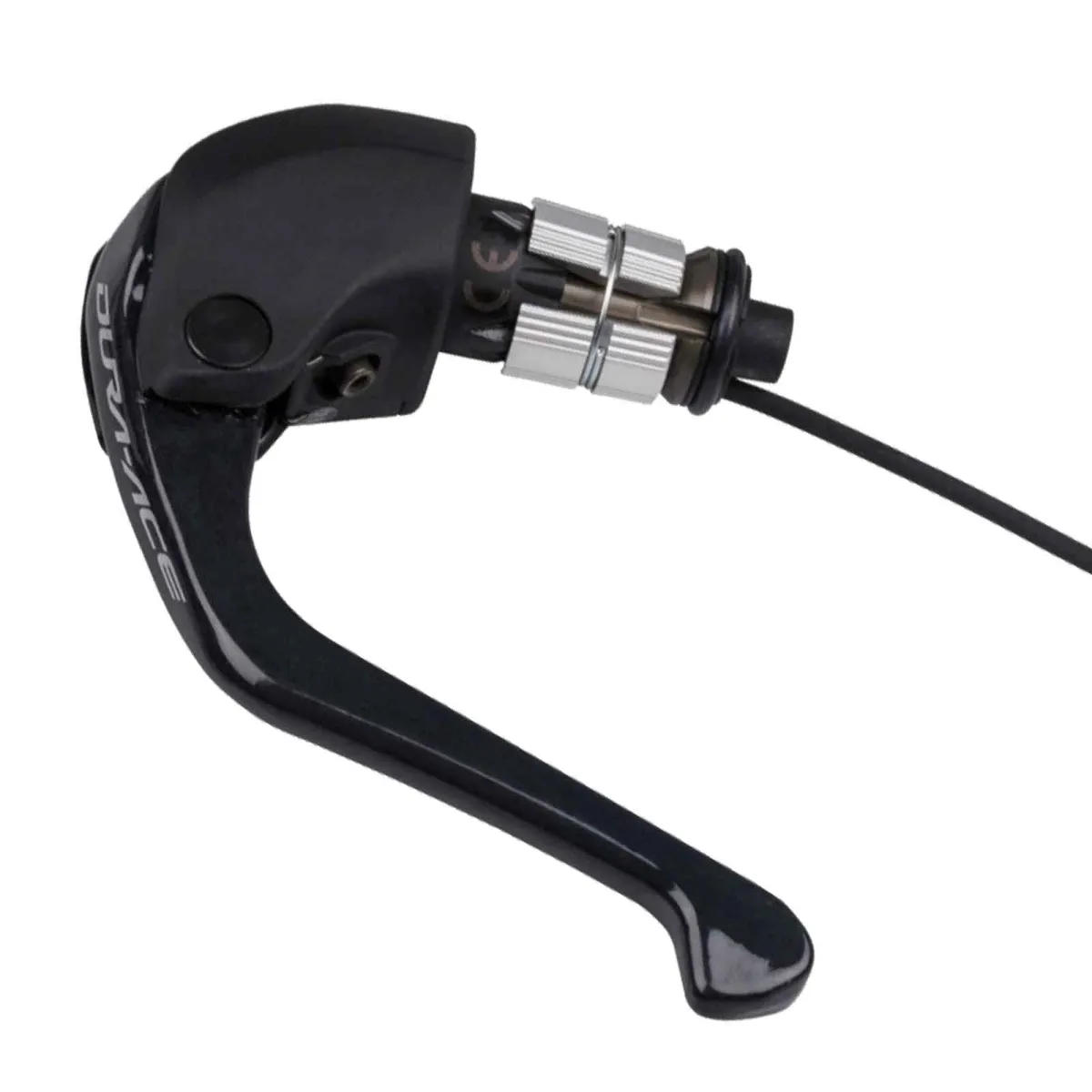

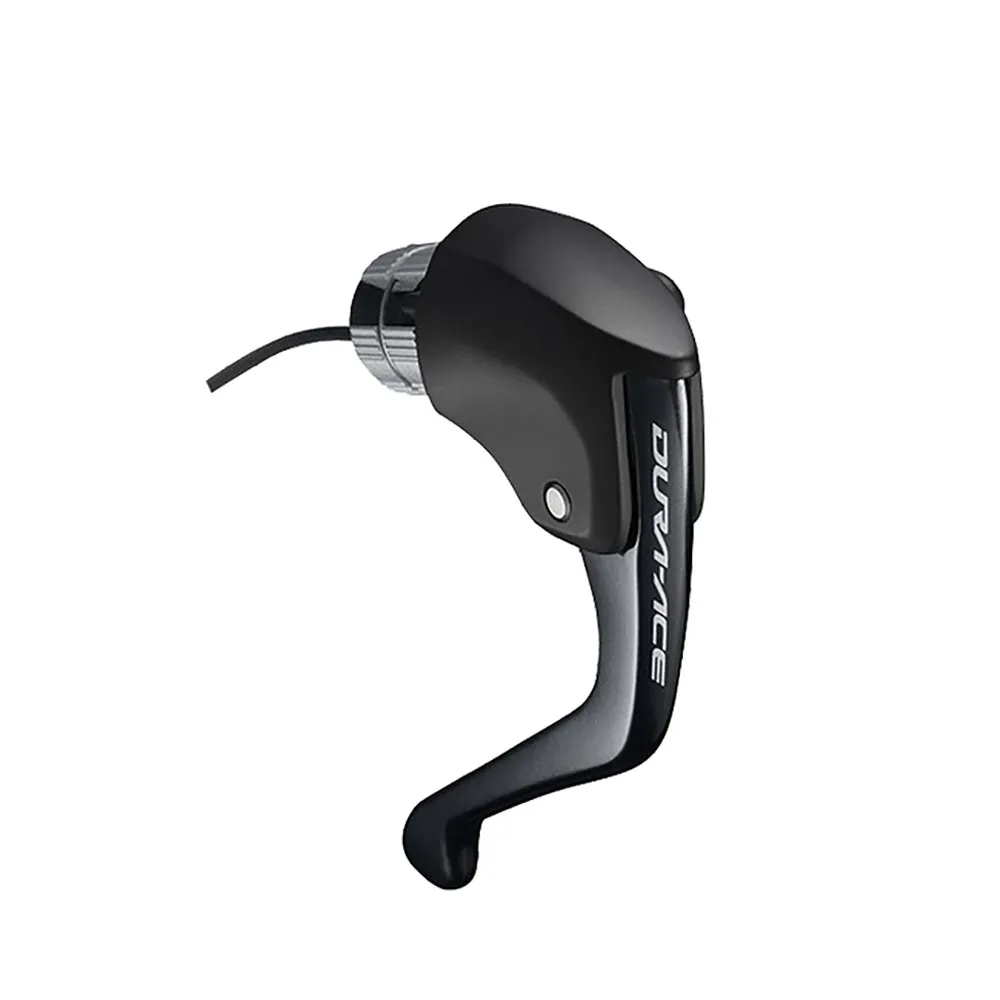

Shimano Dura Ace Di2 ST R9160 Triathlon Shift/Brake Lever

For the Dura Ace R9150 Di2 series, Shimano has redesigned every single component of the system. Via a wireless interface, programming can be carried out on devices with a Bluetooth interface,

These shift levers are compatible with all 11- and 12-speed Di2 rear derailleurs and front derailleurs. For 12-speed installation, the shift levers require the latest firmware version.

Shimano STR9160 shift-brake levers:

The brake levers are made of carbon and do away with mechanical shifting components, resulting in significant weight savings with the ST-9160 shift-brake levers. Equipped with the programmable Syncro Shift function, the shift-brake levers can be programmed entirely to your personal preferences.

11-speed Di2 installation:

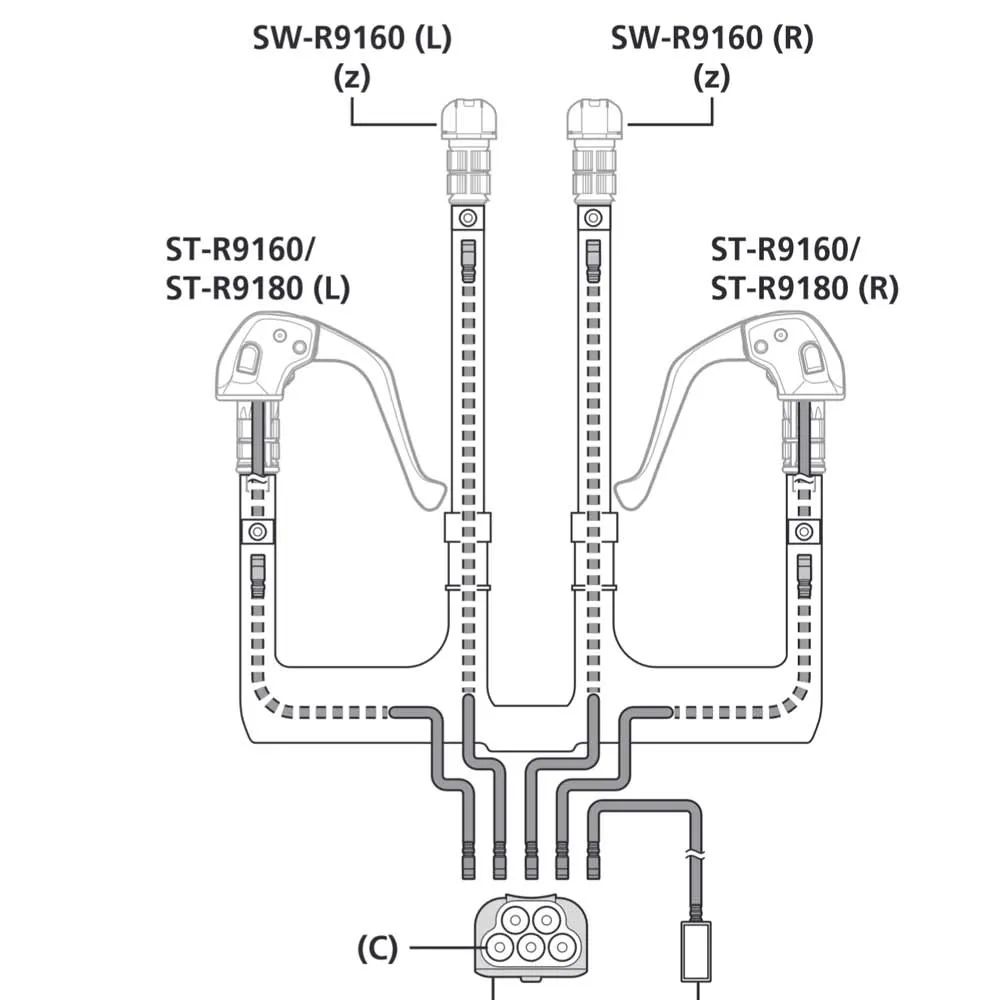

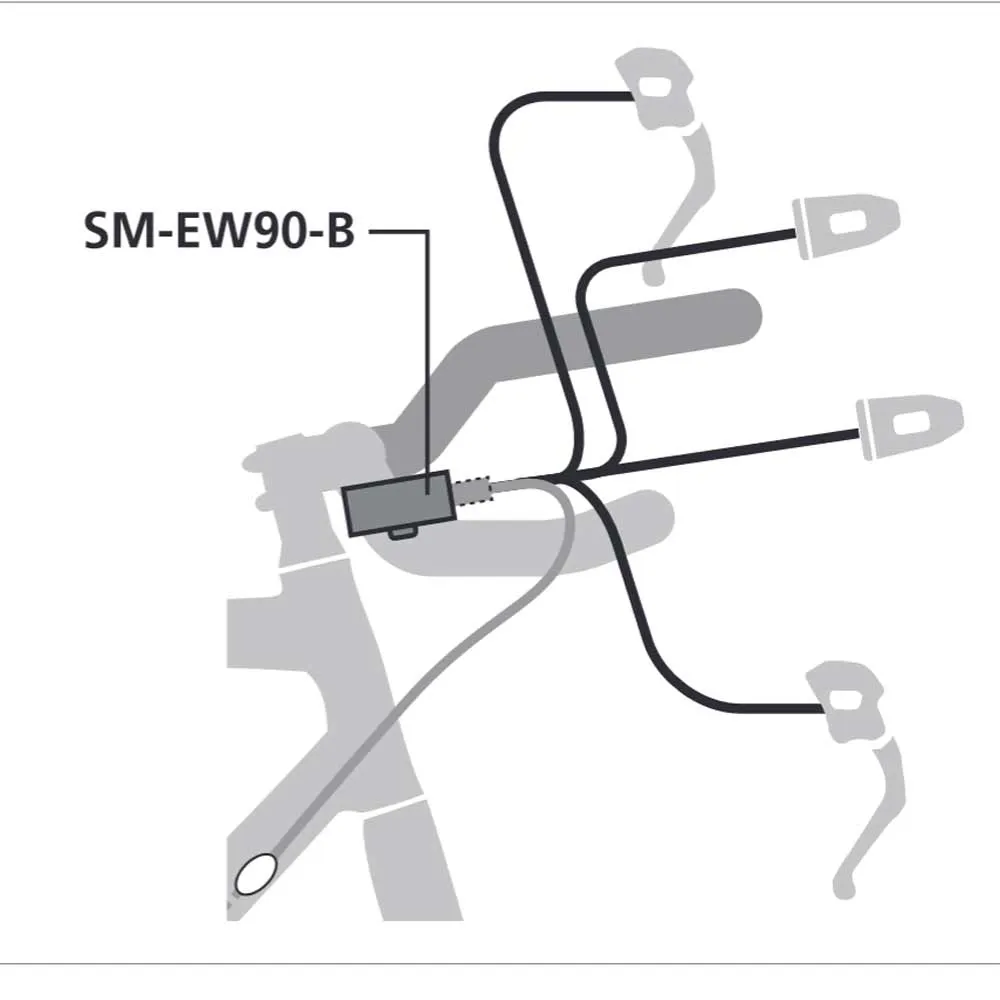

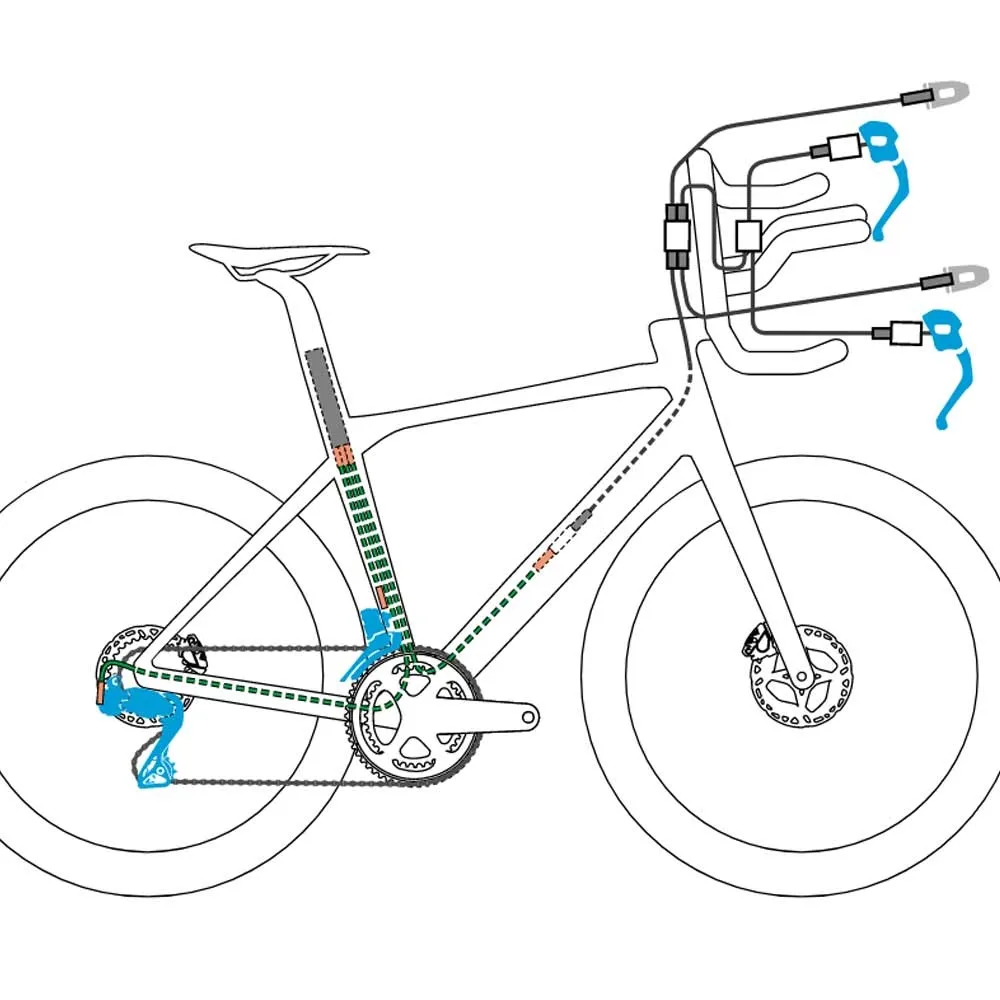

To operate the Dura-Ace Di2 shifters with the 11-speed Dura-Ace or Ultegra drivetrains, the EW-SD50 cable set and SM-EW90 Junction Port for Shimano’s Di2 system, complete with a Quick Mount battery holder and mounting hardware, are required. The EW-SD50 cable set includes connectors for the rear derailleur, front derailleur and battery pack. In addition, the Cockpit Junction Port SM-EW90 is required for connecting the Dura-Ace Di2 STI shifters. To use the wireless function on the 11-speed Di2, the new BT-DN110 battery and the EW-WU111 Bluetooth module are also required.

12-speed Di2 installation:

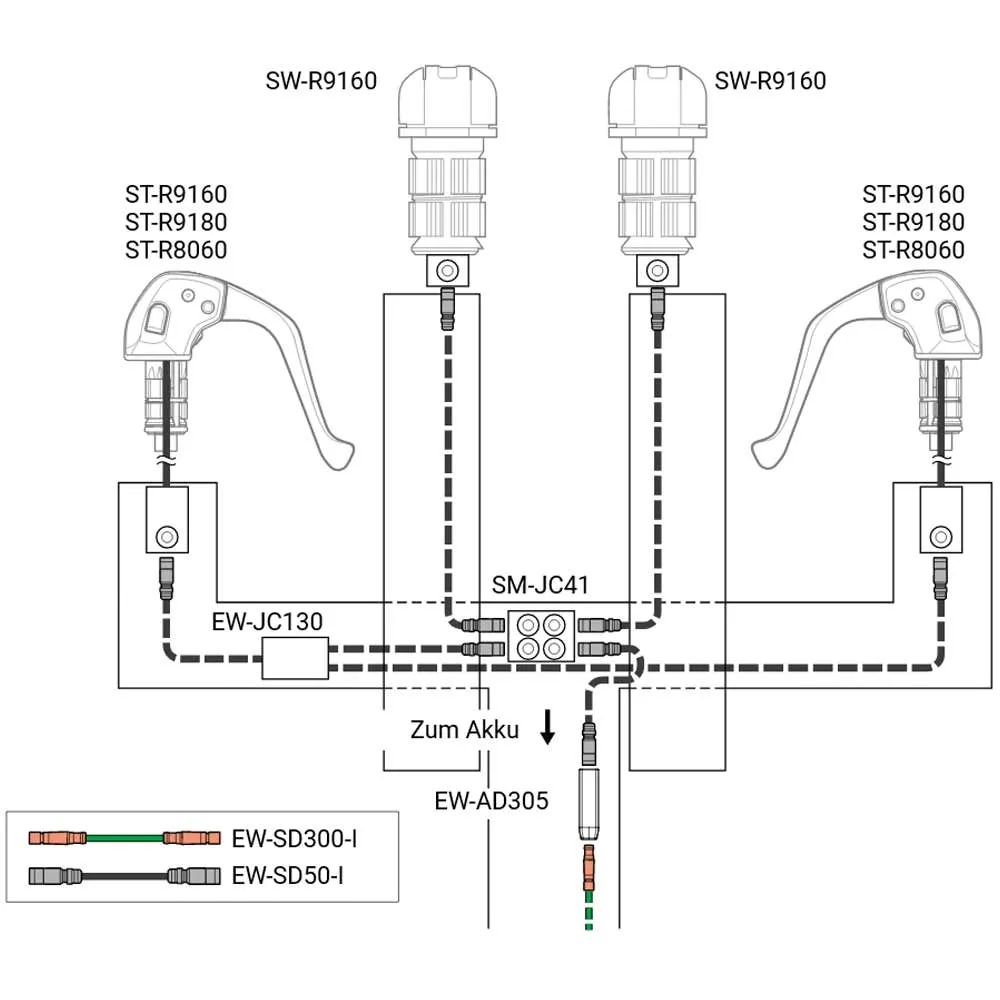

To operate the Dura-Ace Di2 shift levers with the 12-speed Dura-Ace, Ultegra or 105 drivetrains, the EW-SD50 cable and Junction Port SM-JC41, the EW-JC130 Y-cable and the EW-AD305 adapter are required. The latest Di2 firmware is also required.

Shimano Dura Ace Di2 shift lever ST-9161 Technical data:

• For 11x2 and 12x2-speed drivetrains
• Syncro Shift
• Compatible only with Dura-Ace and Ultegra Di2 12 + 11 x 2-speed front derailleurs and rear derailleurs.
• Includes E-Tube cable, permanently soldered
• Compatible handlebar inner diameter: 19.0–22.5 mm
• Weight: approx. 62 grams, manufacturer’s specification

Included in delivery:

Dura Ace STI Di2 disc brake lever Shimano STR9160 (right)
