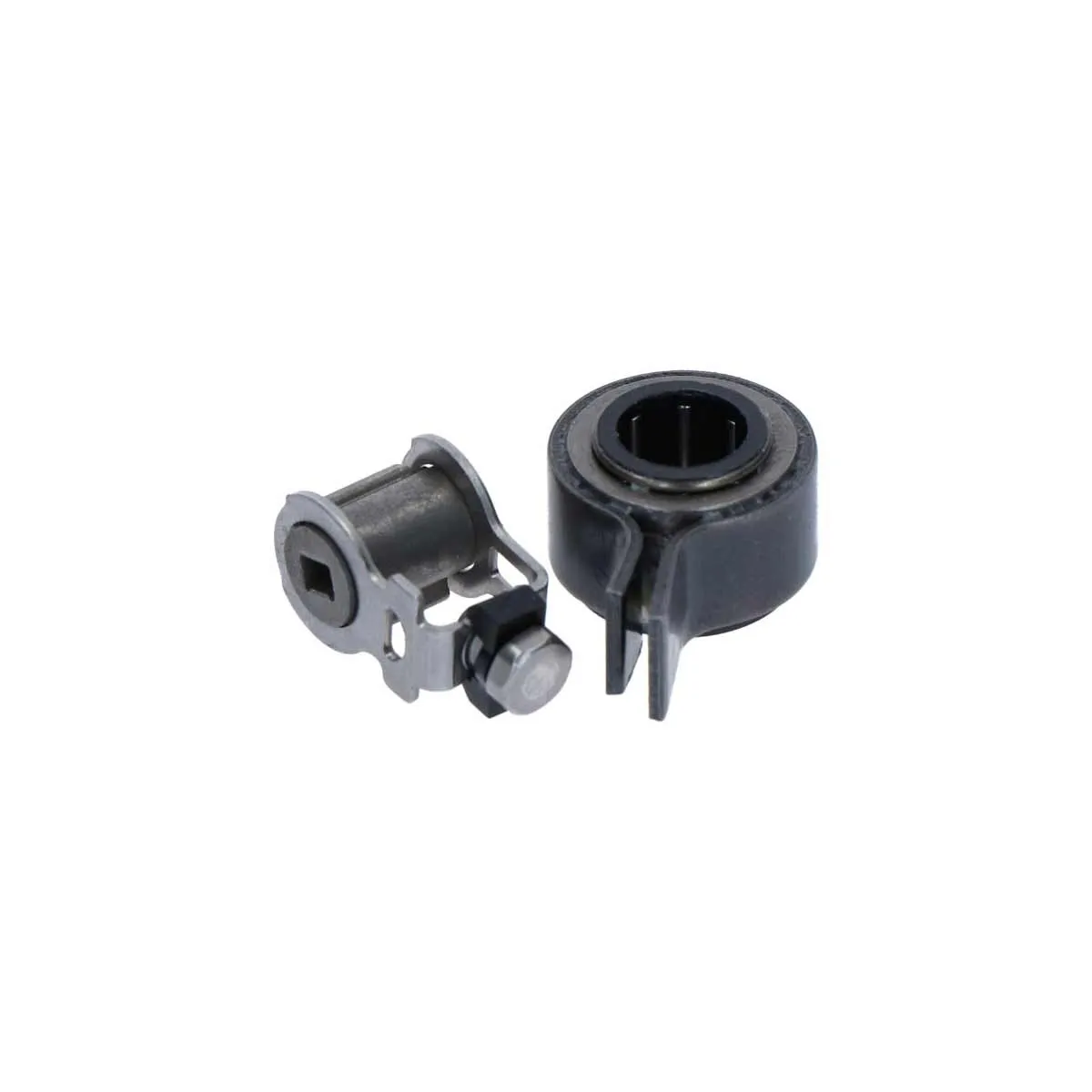

Shimano GRX Di2 RD-RX815 rear derailleur spare part

Part No. 7 in the exploded view.

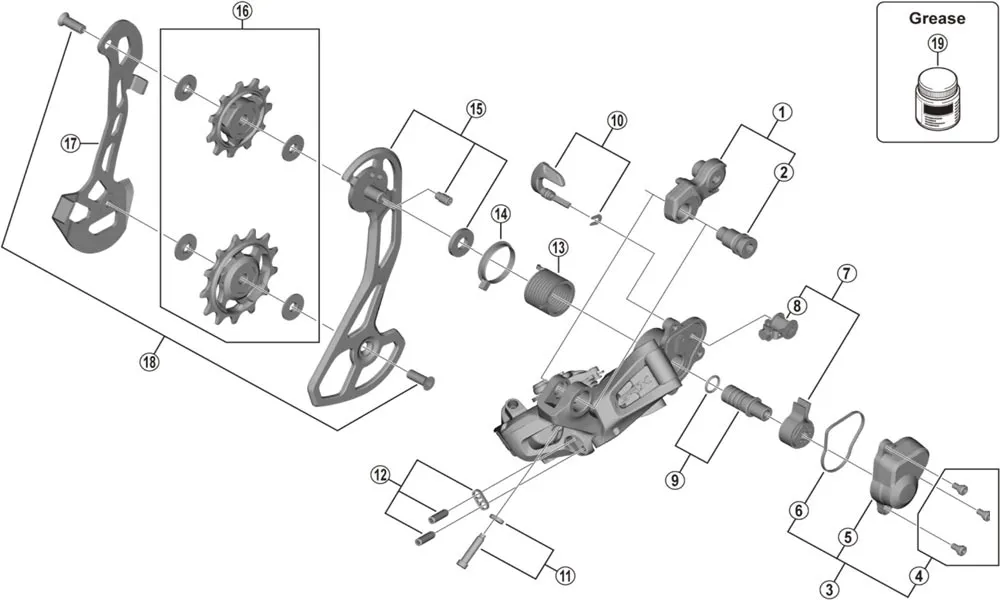

Shimano GRX Di2 RD-RX815 11-speed rear derailleur spare parts:

• No. 1: Y3FC98010 – Rear derailleur hanger axle unit
• No. 2: Y3E958000 – Rear derailleur hanger axle
• No. 3: Y3GE98020 – Rear derailleur housing, complete
• No. 4: Y5Y198070 – Shift housing screws
• No. 5: Y3GE41000 - Derailleur housing
• No. 6: Y3FK41000 - Sealing ring, derailleur housing
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 – Cam unit
• No. 9: Y5PV98060 – Shift shaft unit
• No. 10: Y3GE98030 – Control lever unit
• No. 11: Y3E998040 – Adjusting screw + plate
• No. 12: Y3HR98030 – Stop screws + plate
• No. 13: Y5PU13100 – Tension spring
• No. 14: Y5PV24000 – Tension spring sealing ring
• No. 15: Y3HS98030 – GS outer chain guide plate, complete
• No. 16: Y3GE98010 – Set of sprockets
• No. 17: Y3GE06000 – Inner chain guide plate
• No. 18: Y3HR98050 – Shift roller screws
• No. 19: Y04121000 - Special grease for stabiliser

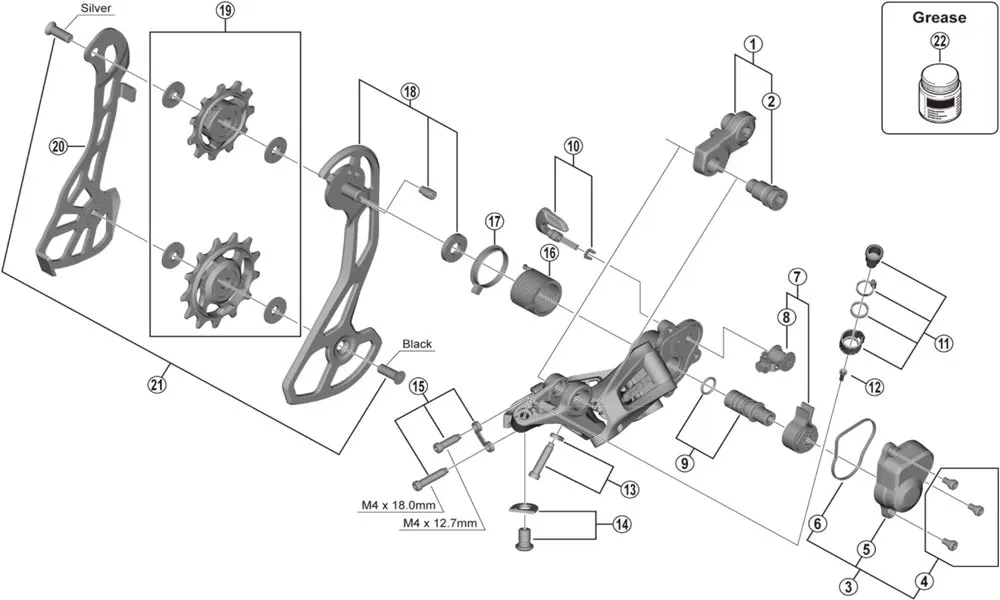

Shimano GRX RD-RX810 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for rear derailleur hanger
• No. 3: Y3GE98020 - Complete derailleur housing
• No. 4: Y5Y198070 - Screws for derailleur housing
• No. 5: Y3GE41000 - Derailleur housing
• No. 6: Y3FK41000 - Sealing ring for derailleur housing
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 - Cam unit
• No. 9: Y5PV98060 - Shift shaft unit
• No. 10: Y3GE98030 – Shift lever unit
• No. 11: Y3E998030 – Shift cable adjustment screw, complete
• No. 12: Y5PV48000 – Tab for shift cable adjustment screw
• No. 13: Y3E998040 - Adjustment screw, complete, for axle unit
• No. 14: Y3E998050 - Shift cable clamping screw, complete
• No. 15: Y3E998060 – Stop screws, complete
• No. 16: Y5PV17000 - Tension spring
• No. 17: Y5PV24000 – Sealing ring for tension spring
• No. 18: Y3GE98040 - Outer chain guide plate, complete
• No. 19: Y3GE98010 - Set of shift rollers
• No. 20: Y3GE06000 – Inner chain guide plate
• No. 21: Y3GE98050 – Shift roller screws
• No. 22: Y04121000 - Special grease for stabiliser

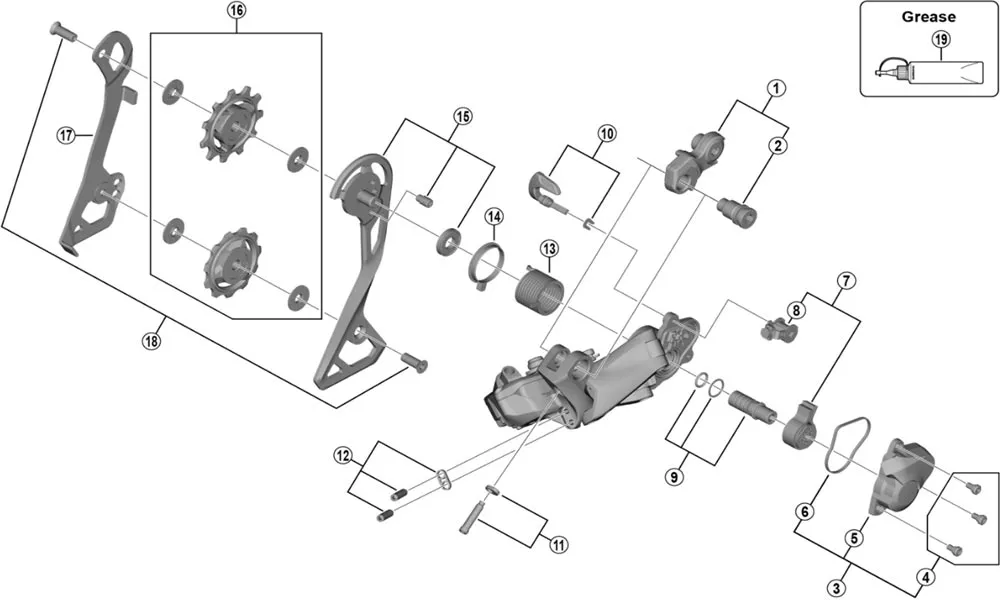

Shimano Ultegra Di2 RX RD-RX805-GS 11-speed rear derailleur spare parts:

• No. 1: Y3FC98010 - Axle unit for rear derailleur mount
• No. 2: Y3E958000 - Axle for Direct Mount rear derailleur hanger
• No. 3: Y3FK98010 – Complete derailleur housing
• No. 4: Y5Y198070 - Screws for derailleur housing
• No. 5: Y3FK42000 - Derailleur housing
• No. 6: Y3FK41000 - Seal for derailleur housing
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 - Cam unit
• No. 9: Y3FK98020 – Shift shaft unit
• No. 10: Y3E498070 – Control lever unit
• No. 11: Y3HR98020 – Adjustment screw, complete, for shaft unit
• No. 12: Y3HR98030 – Stop screws, complete
• No. 13: Y5PU13100 – Tension spring
• No. 14: Y5PV24000 – Seal for tension spring
• No. 15: Y3FC98020 – Outer GS chain guide plate, complete
• No. 16: Y3E998010 - Set of sprockets
• No. 17: Y3HR00040 – GS inner chain guide plate
• No. 18: Y3HR98050 – Shift roller screws
• No. 19: Y04121000 - Special grease for stabiliser

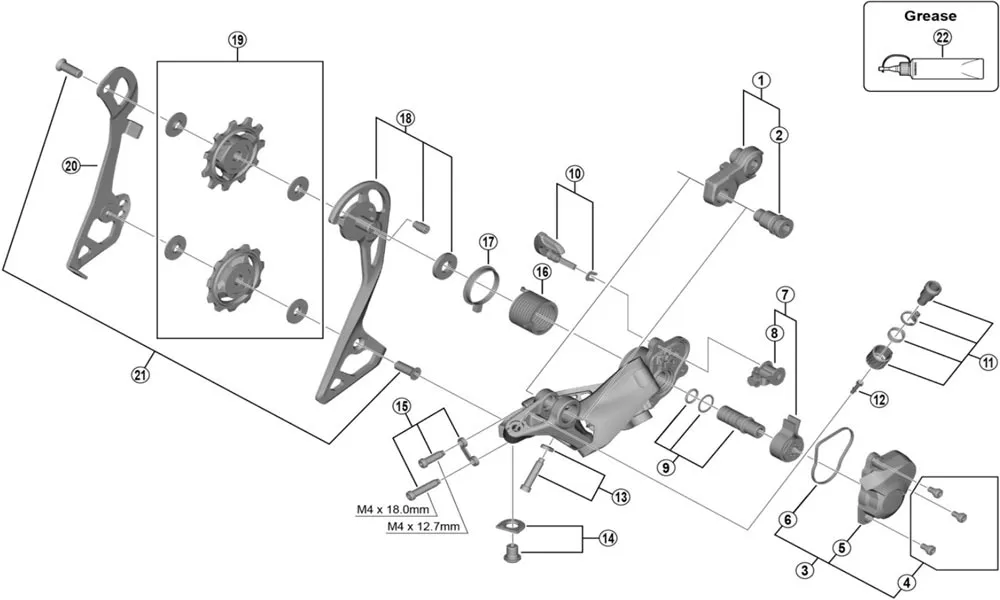

Shimano Ultegra RX RD-RX800-GS 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for Direct Mount rear derailleur hanger
• No. 3: Y3FK98010 - Housing cover, complete
• No. 4: Y5Y198070 - Screws for housing cover
• No. 5: Y3FK42000 - Housing cover
• No. 6: Y3FK41000 - Sealing ring for housing cover
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 - Cam unit
• No. 9: Y3FK98020 – Shift shaft unit
• No. 10: Y3E498070 – Shift lever unit
• No. 11: Y3E998030 – Shift cable adjustment screw, complete
• No. 12: Y5PV48000 – Tab for shift cable adjustment screw
• No. 13: Y3E998040 - Adjustment screw, complete, for axle unit
• No. 14: Y3E998050 - Shift cable clamping screw, complete
• No. 15: Y3E998060 – Stop screws, complete
• No. 16: Y5PV17000 - Tension spring
• No. 17: Y5PV24000 – Sealing ring for tension spring
• No. 18: Y3FK98030 - GS outer chain guide plate, complete
• No. 19: Y3E998010 - Set of shift rollers
• No. 20: Y3E916000 - GS inner chain guide plate
• No. 21: Y5V598140 – Shift roller screws
• No. 22: Y04121000 - Special grease for stabiliser
