Shimano GRX and Ultegra 11-speed spare parts

Included in spare parts package No. 1 and illustration.

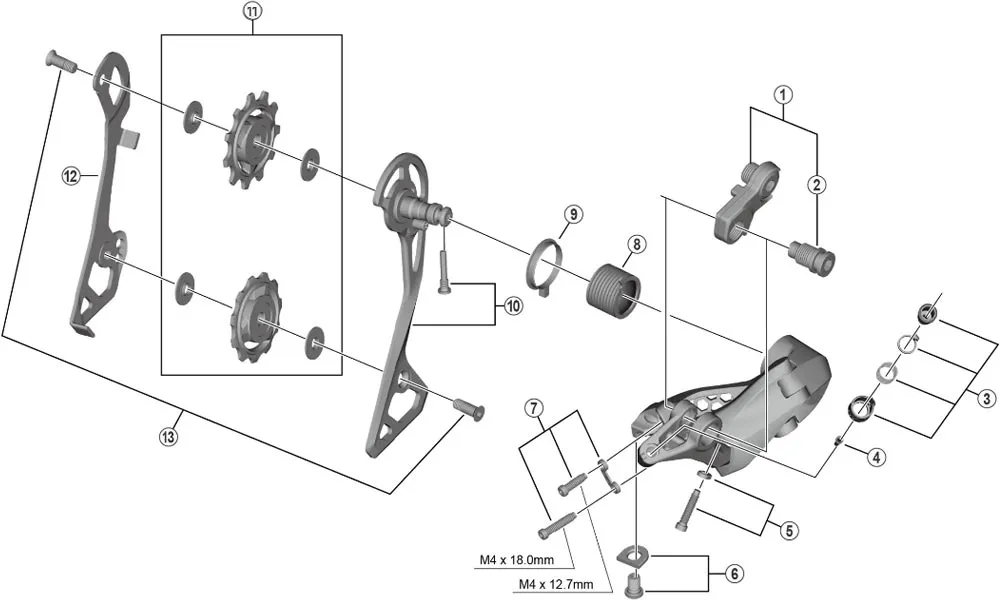

Shimano Ultegra RD-R8000-SS 11-speed rear derailleur spare parts:

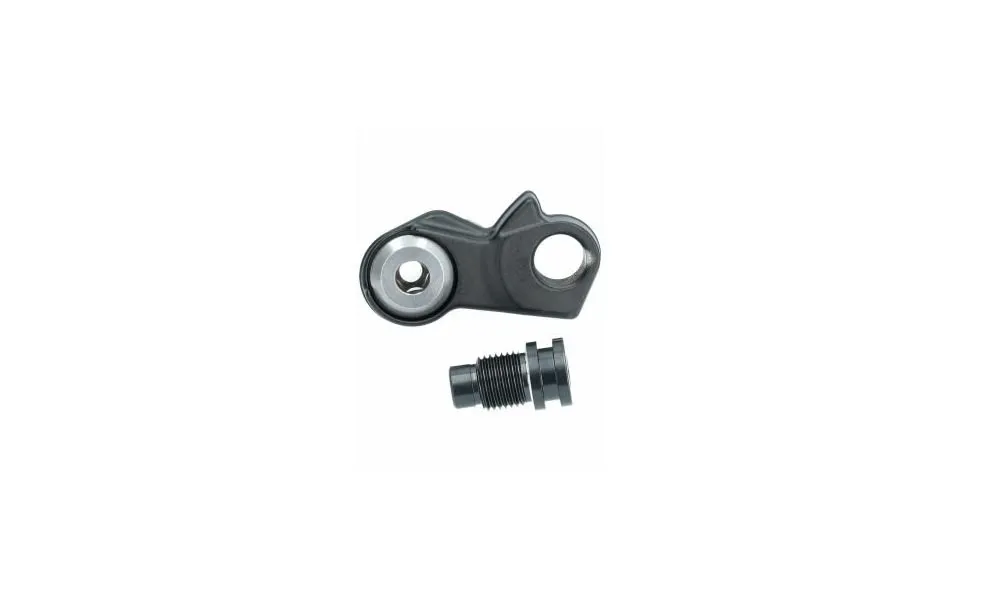

• No. 1: Y3E998020 – Axle unit for rear derailleur hanger
• No. 2: Y3E958000 – Axle for Direct Mount rear derailleur hanger
• No. 3: Y3E998030 – Cable adjustment screw, complete
• No. 4: Y5PV48000 – Tab for cable adjustment screw
• No. 5: Y5ZR98040 – Adjustment screw, complete, for axle assembly
• No. 6: Y3E998050 – Cable clamp screw, complete
• No. 7: Y3E998060 – Stop screws, complete
• No. 8: Y5PV17000 - Tension spring
• No. 9: Y5PV24000 - Sealing ring for tension spring
• No. 10: Y3E998070 – Outer SS chain guide plate, complete
• No. 11: Y3E998010 - Set of shift rollers
• No. 12: Y3E906000 – Chain guide plate SS, inner
• No. 13: Y5V598140 - Derailleur pulley screws

Shimano Ultegra RD-R8000-GS 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for Direct Mount rear derailleur hanger
• No. 3: Y3E998030 - Shift cable adjustment screw, complete
• No. 4: Y5PV48000 - Tab for cable adjustment screw
• No. 5: Y3E998040 – Adjustment screw, complete, for axle assembly
• No. 6: Y3E998050 – Cable clamp screw, complete
• No. 7: Y3E998060 – Stop screws, complete
• No. 8: Y5PV17000 - Tension spring
• No. 9: Y5PV24000 - Sealing ring for tension spring
• No. 10: Y3E998080 – GS outer chain guide plate, complete
• No. 11: Y3E998010 - Set of shift rollers
• No. 12: Y3E916000 – GS inner chain guide plate
• No. 13: Y5V598140 - Derailleur pulley screws

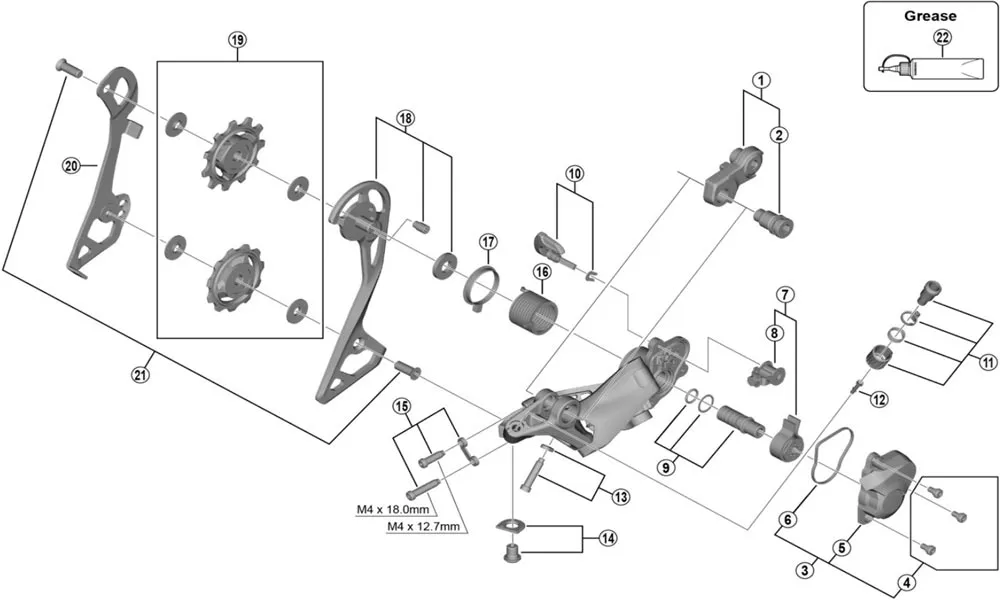

Shimano Ultegra RX RD-RX800-GS 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for Direct Mount rear derailleur hanger
• No. 3: Y3FK98010 - Housing cover, complete
• No. 4: Y5Y198070 - Screws for housing cover
• No. 5: Y3FK42000 - Housing cover
• No. 6: Y3FK41000 - Sealing ring for housing cover
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 - Cam unit
• No. 9: Y3FK98020 – Shift shaft unit
• No. 10: Y3E498070 – Shift lever unit
• No. 11: Y3E998030 – Shift cable adjustment screw, complete
• No. 12: Y5PV48000 – Tab for shift cable adjustment screw
• No. 13: Y3E998040 - Adjustment screw, complete, for axle unit
• No. 14: Y3E998050 - Shift cable clamping screw, complete
• No. 15: Y3E998060 – Stop screws, complete
• No. 16: Y5PV17000 - Tension spring
• No. 17: Y5PV24000 – Sealing ring for tension spring
• No. 18: Y3FK98030 - GS outer chain guide plate, complete
• No. 19: Y3E998010 - Set of shift rollers
• No. 20: Y3E916000 - GS inner chain guide plate
• No. 21: Y5V598140 – Shift roller screws
• No. 22: Y04121000 - Special grease for stabiliser

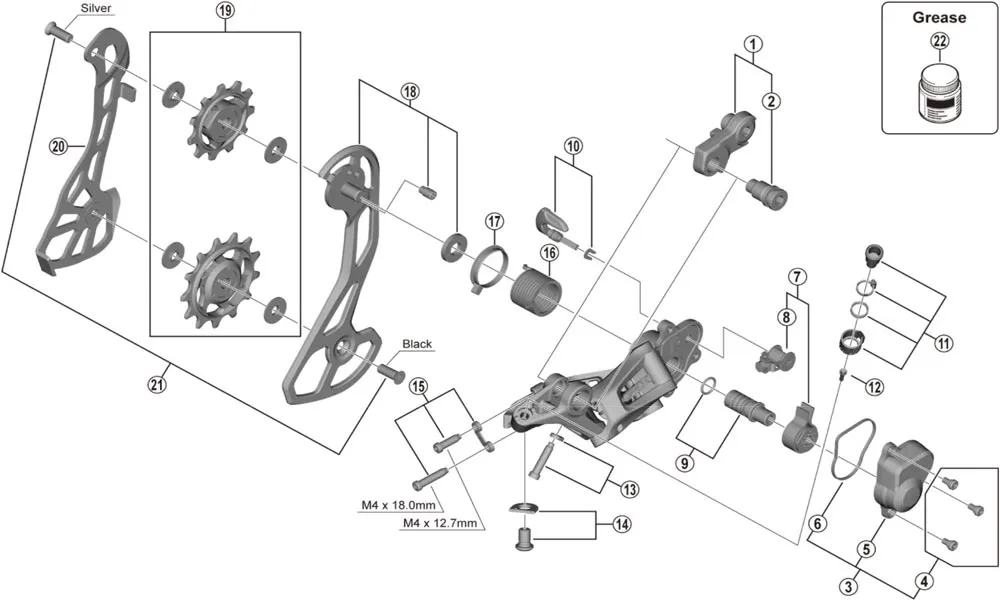

Shimano GRX RD-RX810 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for rear derailleur hanger
• No. 3: Y3GE98020 - Complete derailleur housing
• No. 4: Y5Y198070 - Screws for derailleur housing
• No. 5: Y3GE41000 - Derailleur housing
• No. 6: Y3FK41000 - Sealing ring for derailleur housing
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 - Cam unit
• No. 9: Y5PV98060 - Shift shaft unit
• No. 10: Y3GE98030 – Shift lever unit
• No. 11: Y3E998030 – Shift cable adjustment screw, complete
• No. 12: Y5PV48000 – Tab for shift cable adjustment screw
• No. 13: Y3E998040 - Adjustment screw, complete, for axle unit
• No. 14: Y3E998050 - Shift cable clamping screw, complete
• No. 15: Y3E998060 – Stop screws, complete
• No. 16: Y5PV17000 - Tension spring
• No. 17: Y5PV24000 – Sealing ring for tension spring
• No. 18: Y3GE98040 - Outer chain guide plate, complete
• No. 19: Y3GE98010 - Set of shift rollers
• No. 20: Y3GE06000 – Inner chain guide plate
• No. 21: Y3GE98050 – Shift roller screws
• No. 22: Y04121000 – Special grease for stabiliser

Shimano GRX RD-RX812 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for Direct Mount rear derailleur hanger
• No. 3: Y3GF98010 - Complete derailleur housing
• No. 4: Y5Y198070 - Screws for derailleur housing
• No. 5: Y3GF41000 - Derailleur housing
• No. 6: Y5RT16000 - Seal for derailleur housing
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y5YX98040 - Gear lever unit
• No. 10: Y5PV98060 – Shift shaft unit
• No. 11: Y3E998030 – Shift cable adjustment screw, complete
• No. 12: Y5PV48000 – Tab for shift cable adjustment screw
• No. 13: Y3E998040 - Adjustment screw, complete, for axle unit
• No. 14: Y3GF98020 - Shift cable clamping screw, complete
• No. 15: Y5YX98060 - Stop screws, complete
• No. 16: Y5PV17000 - Tension spring
• No. 17: Y5PV24000 - Seal for tension spring
• No. 18: Y3GF98030 - Outer chain guide plate, complete
• No. 19: Y3E998010 - Set of shift rollers
• No. 20: Y5RT09000 – Inner chain guide plate
• No. 21: Y3GE98050 – Shift roller screws
• No. 22: Y04121000 - Special grease for stabiliser

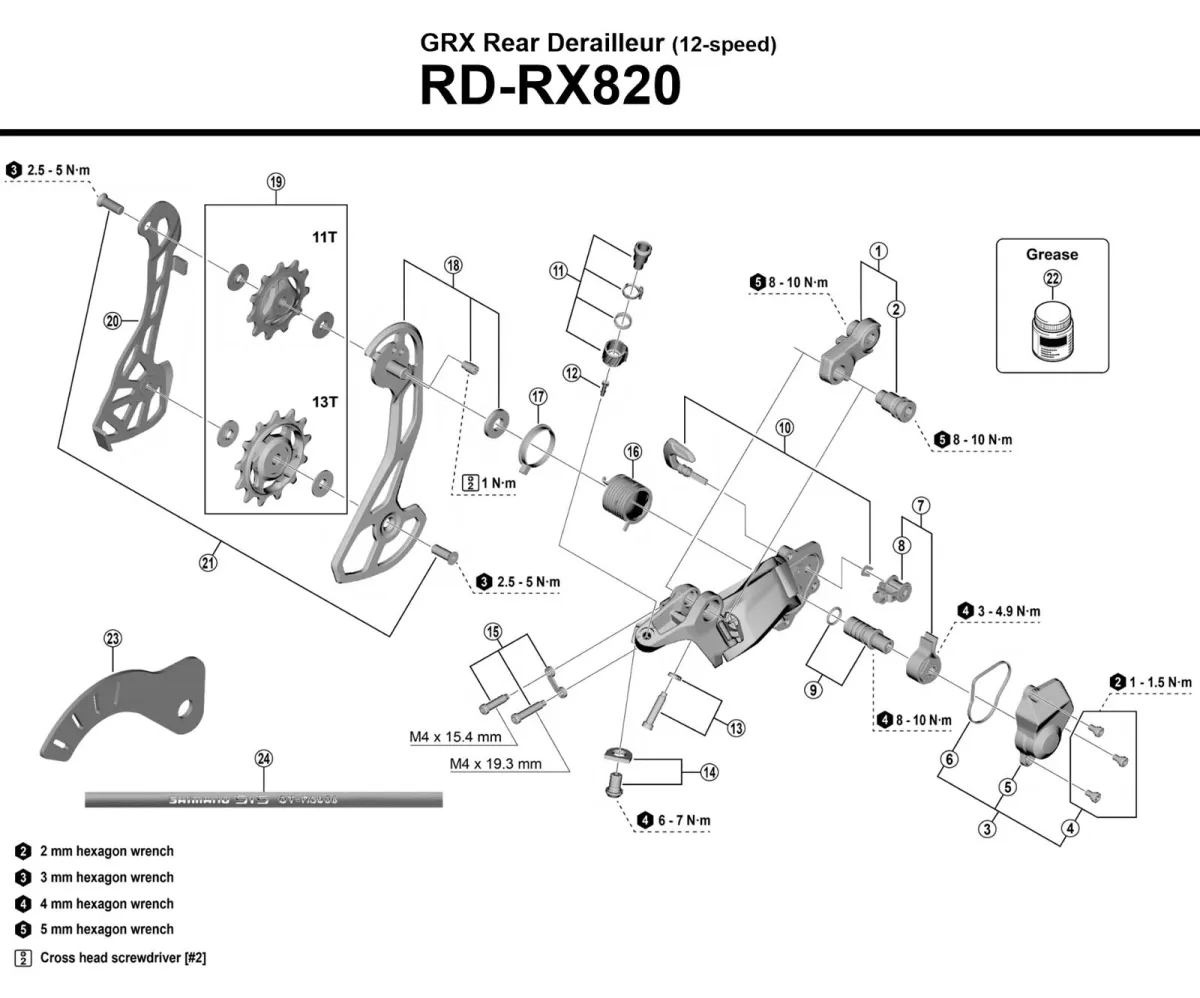

Spare parts Shimano 12-speed GRX rear derailleur RD RX820:

• No. 1: Y3E998020 - Rear derailleur hanger axle unit, mounting screw unit
• No. 2: Y3E958000 - Rear derailleur hanger axle, b-Axle
• No. 3: Y3JS98020 – Stabiliser housing unit, plate cover unit
• No. 4: Y5Y198070 – Screws for stabiliser housing cover, plate unit cover screw set (3 pcs.)
• No. 5: Y3JS9801T - Stabiliser housing, plate unit cover
• No. 6: Y3FK41000 – Gasket for stabiliser housing, plate unit cover gasket
• No. 7: Y3GE98060 - Stabiliser unit
• No. 8: Y5Y198120 - Cam unit
• No. 9: Y5PV98060 – Plate axle and O-ring
• No. 10: Y3JS98030 – Switch lever unit and fixing plate
• No. 11: Y3E998030 – Cable adjustment barrel unit
• No. 12: Y5PV48000 - Cover with tongue for cable clamp screw
• No. 13: Y3E998040 – Tension spring adjustment screw, end adjusting screw M4 x 18 and plate
• No. 14: Y3F398040 – Cable fixing screw and plate
• No. 15: Y3JS98040 – Stop screws + plate, M4x15.4 / M4x19.3 mm
• No. 16: Y5PV17000 – Tension spring, plate tension spring
• No. 17: Y5PV24000 – Tension spring seal, p-seal ring
• No. 18: Y3JS98010 – Outer chain guide plate assembly
• No. 19: Y3FY26000 – Tension and guide pulley set
• No. 20: Y3JS9802T – Inner chain guide plate
• No. 21: Y3FW98090 – Pulley screws, 2 pcs.
• No. 22: Y0412100A - Grease for stabiliser, net 50 g
• No. 23: Y3K49801T - Pulley setting tool
