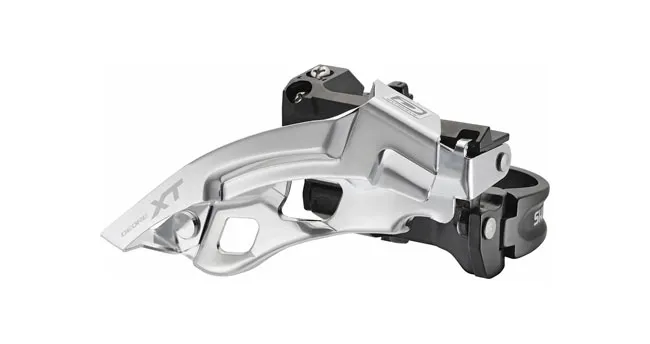

Shimano XT FD-M780 front derailleur
Designed for 3-speed cranksets with a 48-26 tooth ratio. Perfectly matched to the Shimano 10-speed touring MTB cranksets with 3 chainrings and the new Shimano HG-X chains, the FD-T781 front derailleur offers Shimano’s typically excellent shifting performance.
Absolutely typical of Shimano: excellent shifting performance. The angled adjustment screws are easy to access. The cage has been redesigned and is now lighter than before. In addition, the shape of the cage has been modified to increase tyre clearance. The widened parallelogram, with its broader pivot base, reduces twisting, resulting in faster shifting and a longer service life.
This derailleur also features the Dual Pull cable routing system, allowing for both top-pull and down-pull cable routing. Recommended for all full-suspension bikes with a low pivot point. The specified maximum chainring difference is the official Shimano specification.
Shimano XT FDT 780 Front Derailleur Technology:
The clamp is mounted approximately 8 cm above the bottom bracket axle.
- Aluminium clamp
- Chrome-plated steel chain guides
- Clamp size 34.9 mm, reducible to 31.8 mm using an adapter
- Largest chainring to be shifted: 48 teeth
- Smallest chainring to be used: 26 teeth
- Maximum chainring difference: 22 teeth
- Angle: 63–66 degrees
- Weight: 148 grams
Compatible with all Shimano Dyna-Sys 10x3-speed shifters and also SRAM front derailleur shifters.
