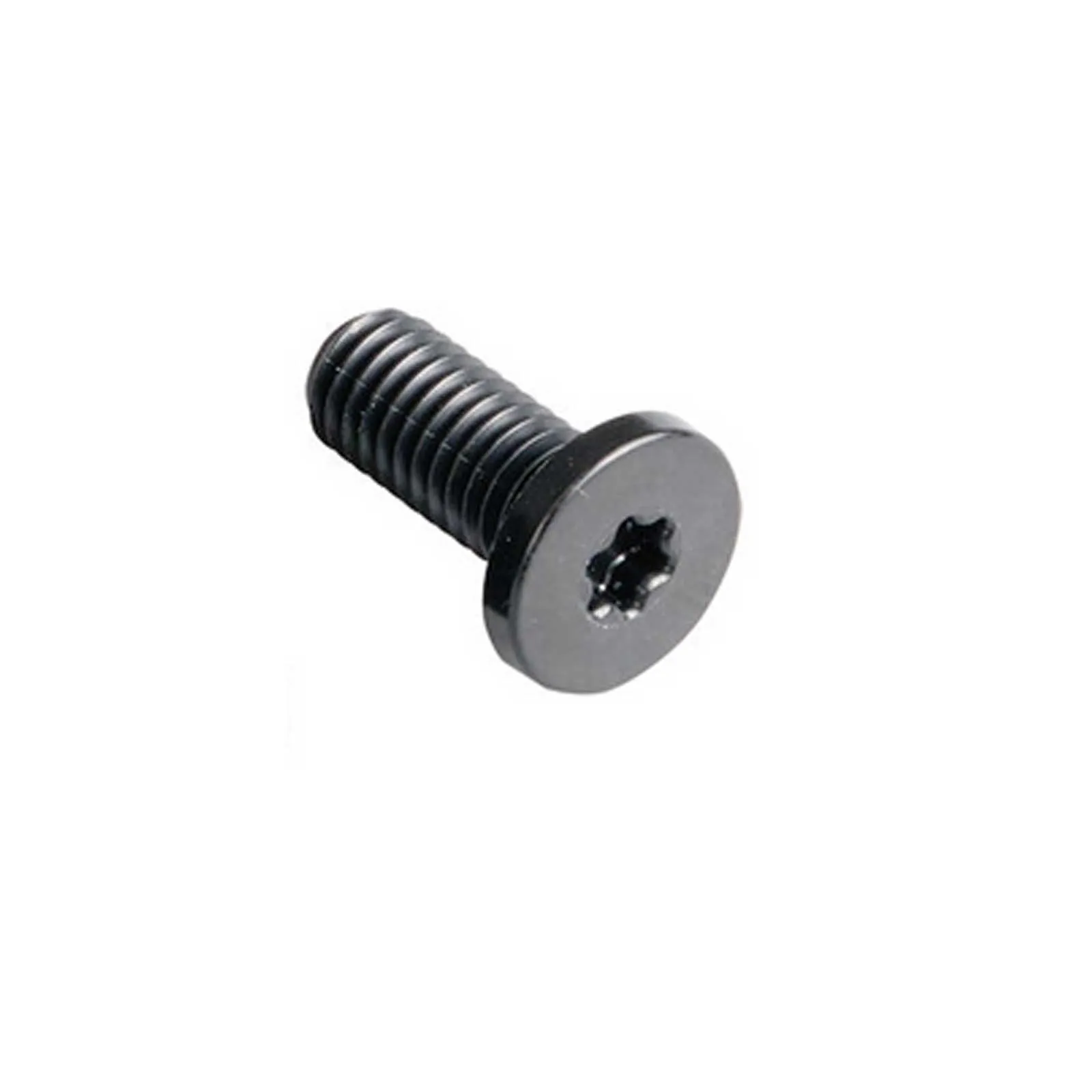

Screw for Classified Powershift Torque Support Arm

Plastic screw for mounting the torque support arm on the Classified Powershift hub.

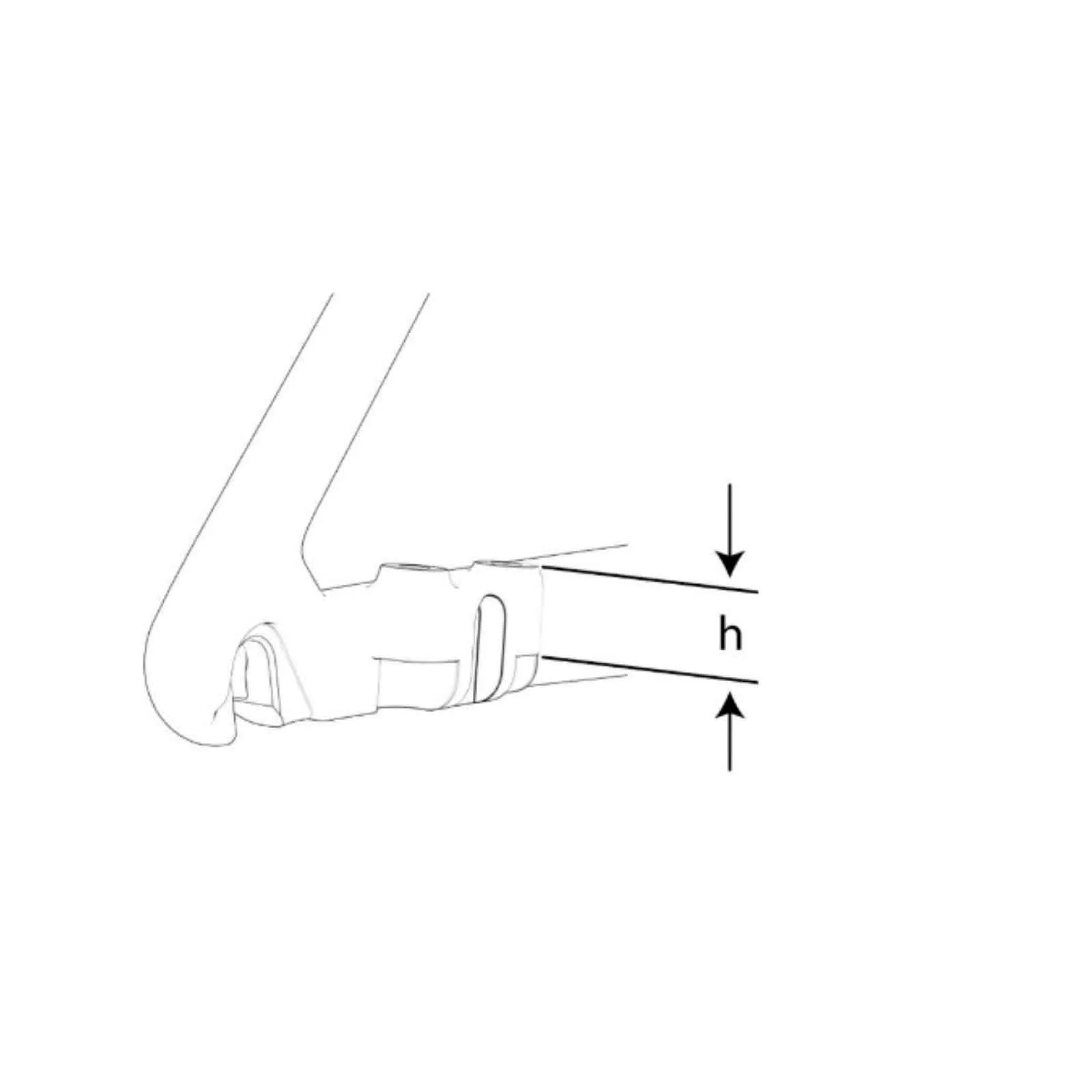

Determine the correct thread length for the torque support screw by adding 8 mm to the height specification of the flat mount bracket and rounding up to the next largest available thread length (8 mm, 12 mm or 16 mm). Example: 2 mm + 8 mm = 10 mm. Rounded up, the thread length should be 12 mm.

Tighten the plastic screw to a torque of at least 0.5 Nm and no more than 0.7 Nm

Herstellerinformation: Classified Cycling, Damplein 23, 2018 Antwerp, Belgium, https://www.classified-cycling.cc/
