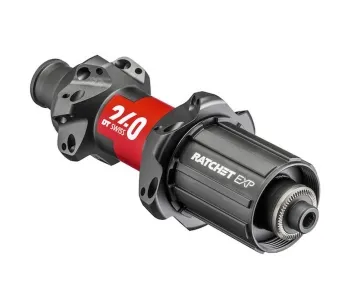

DT Swiss 240S Straightpull Non-Disc Hub

The DT Swiss 240 EXP Straightpull hubs offer minimal weight combined with exceptional durability – a rarity, particularly in hub construction. The new axle system, with 15 per cent greater support width, increases hub stiffness. The ‘EXP’ in the DT Swiss 240 hubs stands for the integration of the gear ring and threaded ring, which reduces the number of components and thus the weight. A single coil spring ensures faster, complete engagement and thus greater reliability. The complete interlocking of the ring gears creates a large contact surface and thus low point loads, resulting in superior reliability. The stainless steel ball bearings have proven to be extremely reliable and durable since the introduction of the 240 hubs. The patented freehub body operates with interlocking toothed discs. This guarantees loss-free power transmission. Straightpull refers to straight, non-offset spokes. Thanks to this technology, it is possible to achieve an ideal balance between weight and stability. The straight-pull spokes allow for very precise alignment and optimised positioning within the wheel, resulting in a stiffer and more responsive wheel.

The DT Swiss 240 EXP Non-Disc rear hubs can be easily converted to other cassette bodies using optional freehub bodies

DT Swiss Straightpull / Spline:

• Straightpull spoke positioning: Straightpull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.
• Straightpull hub shell: DT Swiss straight pull hub shells require minimal material, allowing them to be constructed to be lightweight yet stable.
• Straightpull lacing pattern: with crossed lacing, the spoke anchoring is designed so that the forces introduced almost cancel each other out. This increases the precision of the bearing race and further extends the service life of the ball bearings.

DT Swiss Star Ratchet EXP System:

The proven DT Swiss Star Ratchet System in the new EXP version, featuring a toothed freewheel body, allows for easy conversion to various rotor standards.

DT Swiss 240 EXP Straightpull Non-Disc Rear Hub Technology:

• Housing material: Aluminium
• Freewheel body: Aluminium with 2 toothed discs, specially coated
• Axle: Aluminium
• Stainless steel ball bearings
• Seal-less sealing system
• Clamping width 10x130 mm for thru-axle fitting, convertible to 10x135 mm
• EXP Ratcht Star freehub body, optional
  • HG11 freehub body compatible with Shimano 8 + 9 + 10 + 11-speed cassettes and Sram PG cassettes 8 + 9 + 10 + 11-speed
  • SRAM XDR freehub body compatible with SRAM AXS 11- and 12-speed cassettes
  • Campa ED freehub body compatible with Campagnolo 9, 10, 11 and 12-speed cassettes
• Weight: from 188 grams

Your custom wheel with the DT Swiss 240 EXP Straightpull hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
