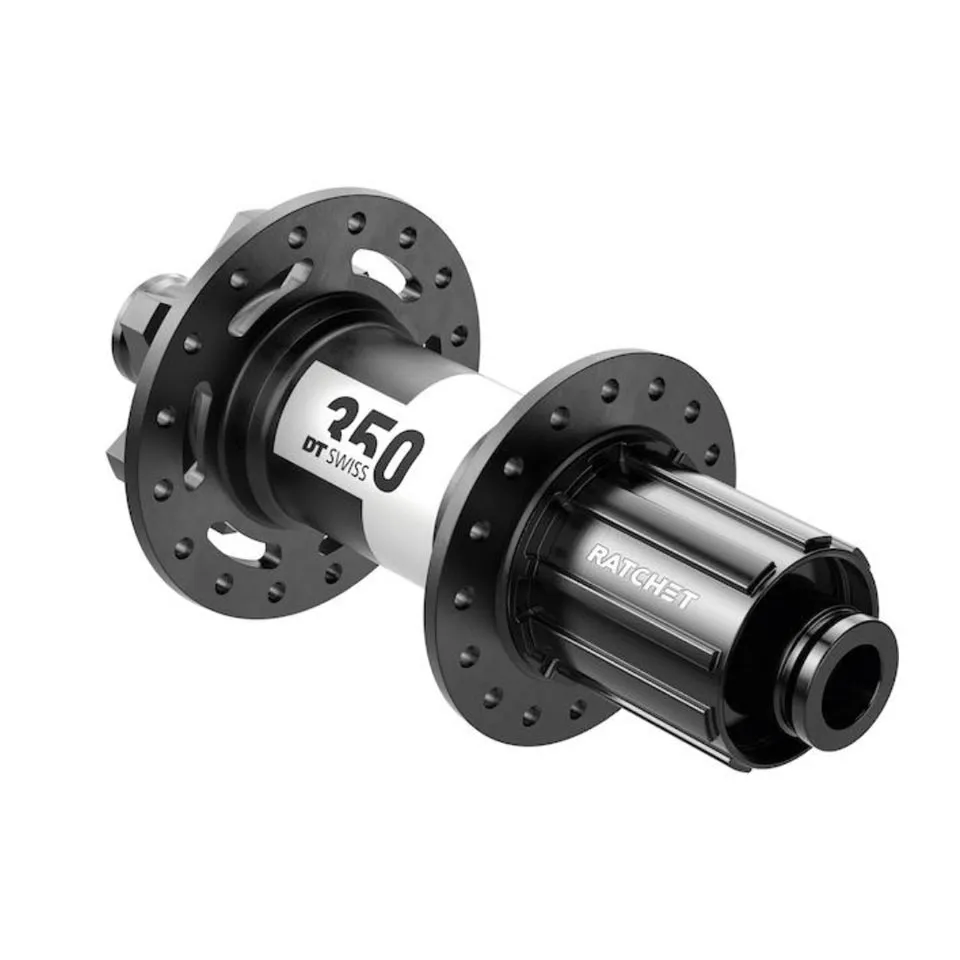

DT Swiss 350 MTB Disc Hub

The DT Swiss 350 Classic hub is available for either 12x142 mm thru-axle or 10x135 mm quick-release mounting.

DT Swiss 350 Classic Disc rear hub specifications:

• Housing material: Aluminium
• Freewheel body: Aluminium with 2 pawls, specially coated
• Ratchet System 36 SL
• Axle: Aluminium
• Industrial ball bearings
• Non-contact sealing system
• X12 clamp width 142x12 mm for thru-axle fitting or 135x10 mm for quick-release fitting
• Ratchet 36 SL freehub body:
  • HG10 aluminium freehub body compatible with Shimano and SRAM 8- to 10-speed cassettes and 11-speed Shimano MTB cassettes
• Weight 273 grams (manufacturer’s specification)

The DT Swiss 350 rear hub with new Ratchet SL freehub body, redesigned hub shell and endstops. With the 350 hubs, DT Swiss offers affordable, durable and technically high-quality hubs. From road bike to downhill versions, the 350 hub range is designed for maximum durability. Equipped with high-quality seals and bearings, this is the choice if you are looking for hubs for long-lasting and low-maintenance wheelsets.

DT Swiss Ratchet 36 SL freehub body system:

The Ratchet SL freehub body system uses two sprockets, each with 36 teeth. This ensures loss-free power transmission, extreme durability and virtually no play when pedalling. Thanks to the NoTool Concept, the freehub bodies and end caps can be fitted without tools.

The freehub bodies are available as HG10 for 8, 9, 10 and 11-speed Shimano HG MTB and Sram PG MTB cassettes, as Sram XD for Sram 11 and 12-speed XG cassettes, and as Micro Spline for Shimano 12-speed MTB cassettes

Your dream wheel with the DT Swiss 350 hub

Ask us for a personalised quote. We will build your dream wheel, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Compatible endstops for DT Swiss Disc MTB rear wheels:

• Quick-release mounting HG10 freehub, 10x135 mm: Item No.HWGXXX0001528S
• Thru-axle assembly HG10 freehub, 12x142 mm: Item No. HWGXXX0002193C
• Thru-axle mount HG10 freehub, 12x135 mm: Item No.HWGXXX00S2751S
• Quick-release mount Sram XD freehub, 10x135 mm: Item No.HWGXXX00S3115S
• Thru-axle mount Sram XD freehub, 12x142 mm: Item No. HWGXXX00S3188S
• Thru-axle mount Sram XD freehub, 12x135 mm: Item No.HWGXXX00S3382S
• Quick-release mount Micro Spline freehub, 10x135 mm: Item No. HWGXXX00S2789S
• Thru-axle mount Micro Spline freehub, 12x142 mm: Item No. HWGXXX00S3188S
• Thru-axle mount Micro Spline freehub, 12x135 mm: Item No.HWGXXX00S2793S

Compatible DT Swiss ratchet pawl freehub body

• DT Swiss freehub body, aluminium MTB ratchet Shimano/Sram HG10, without end stop Item No. HWRBBX00S1074S
• DT Swiss freehub body, hybrid steel MTB ratchet, Shimano/Sram HG10, without end stop, item no. HWRABX00S6530S
• DT Swiss freehub body, hybrid steel MTB ratchet, Sram XD 11-12-speed, without end stop, item no. HWRAAXWSS2356S
• DT Swiss Freehub Body Kit Aluminium Ratchet Sram XD 11-12-speed End Stop for 12x142/148/157 mm thru-axles Mounting Item No. HWYAAX00S3188S
• DT Swiss Freehub Body Kit Aluminium Ratchet Sram XD 11-12-speed Endstop for 12x135/150 mm thru-axle mounting Part No. HWYAAX00S3382S
• DT Swiss Freehub Body Kit Aluminium Ratchet Micro Spline 12-speed end stop for 10x135mm quick-release assembly Part No.HWGXXX00S2751S
• DT Swiss Freehub Body Kit Aluminium Ratchet Micro Spline 12-speed End Stop for 12x142 /148 / 157mm Thru-Axles Mounting Part No.HWYABL00S2562S
• DT Swiss Freehub Body Kit Steel Ratchet Micro Spline 12-speed end stop for 12x142 / 148 / 157mm thru-axle mounting Part No.HWYABL00S4935S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
