Spare part Shimano Deore XT HB-M8110, HB-M8110-B

Included in parts 3 and 4 of the exploded view.

With the exception of the axles, the spare parts for the Shimano Deore XT HB-M8110 and HB-M8110-B (B for Boost) front wheel hubs are identical. With Boost or non-Boost axles, hubs cannot be converted to the other mounting standard, as the hub bodies are of different widths.

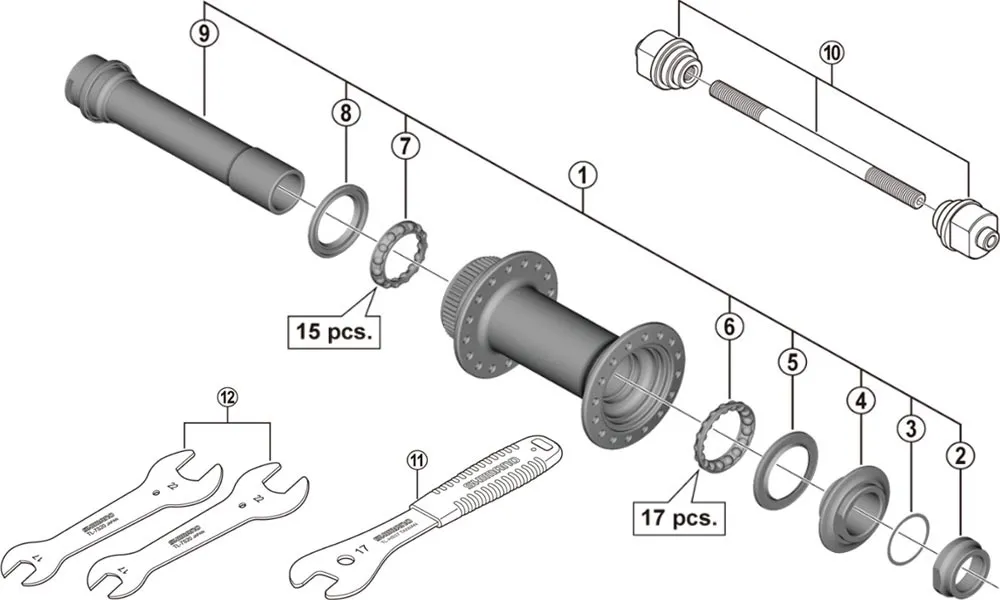

Shimano Deore XT HB-M8110 / HB-M8110-B Disc front hub spare parts:

• No. 1: Y2E398010 – Complete hollow axle for HB-M8110
• No. 1: Y2E498020 – Complete Boost thru-axle for HB-M8110-B
• No. 2: Y2A500050 - Axle nut
• No. 3: Y24613000 - Spacer for axle cone nut
• No. 4: Y24698040 – Tapered nut
• No. 5: Y27X15000 - Sealing ring, right
• No. 6: Y27X98030 - Ball bearing, right, 5/32", 17 balls (sold out)
• No. 7: Y27X98040 - Ball bearing, left, 5/32", 15 balls – sold out
• No. 8: Y27X14000 - Sealing ring, left (sold out)
• No. 9: Y2A598020 - Hollow axle for HB-M8110
• No. 9: Y2AH98020 - Boost hollow axle for HB-M8110-B
• No. 10: Y20W98020 - TL-HB16 centring aid
• No. 11: Y23098030 - TL-HS37 tapered spanner 17mm, 1 piece
• No. 12: Y13098900 - TL-7S20 cone wrench 17mm + 22mm (2 pieces)

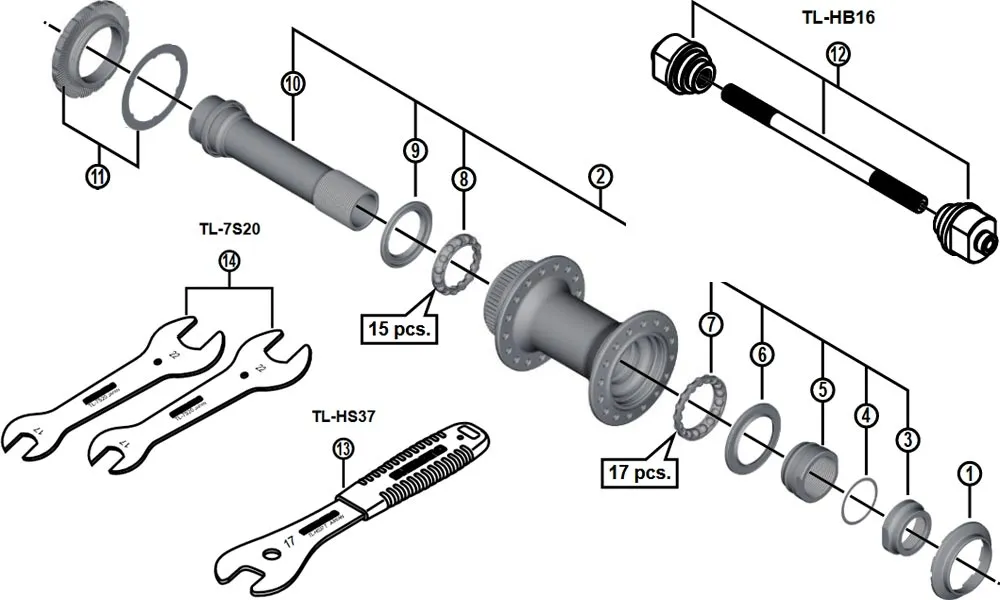

Shimano Deore XT HB-M8010 front hub spare parts:

• No. 1: Y27X17000 - Right-hand dust cap
• No. 2: Y2A598010 - Thru-axle, complete
• No. 3: Y2A500050 - Axle nut
• No. 4: Y24613000 - Adjustment washer for axle cone nut
• No. 5: Y24606000 - Cone nut
• No. 6: Y27X15000 – Sealing ring, right
• No. 7: Y27X98030 - Ball bearing, right, 5/32", 17 balls (sold out)
• No. 7: Y27X98040 - Ball bearing, left, 5/32", 15 balls – sold out
• No. 8: Y27X14000 - Sealing ring, left (sold out)
• No. 9: Y2A598020 - Hollow axle
• No. 10: Y29F98010 - Locking ring + washer – sold out
• No. 11: Y20W98020 – TL-HB16 centring aid
• No. 12: Y23098030 – TL-HS37 tapered spanner 17 mm, 1 piece
• No. 13: Y13098900 - TL-7S20 tapered spanner 17mm/22mm, 2 pieces
