EXP Freewheel Body DT Swiss Micro Spline

The hybrid steel freehub bodies are used on DT Swiss e-bike wheels and hubs, but can of course also be used on all other wheels

For converting DT Swiss 240 EXP MTB hubs and MTB rear wheels from the Ratchet EXP system to the Shimano Micro Spline system for 12-speed Micro Spline cassettes.

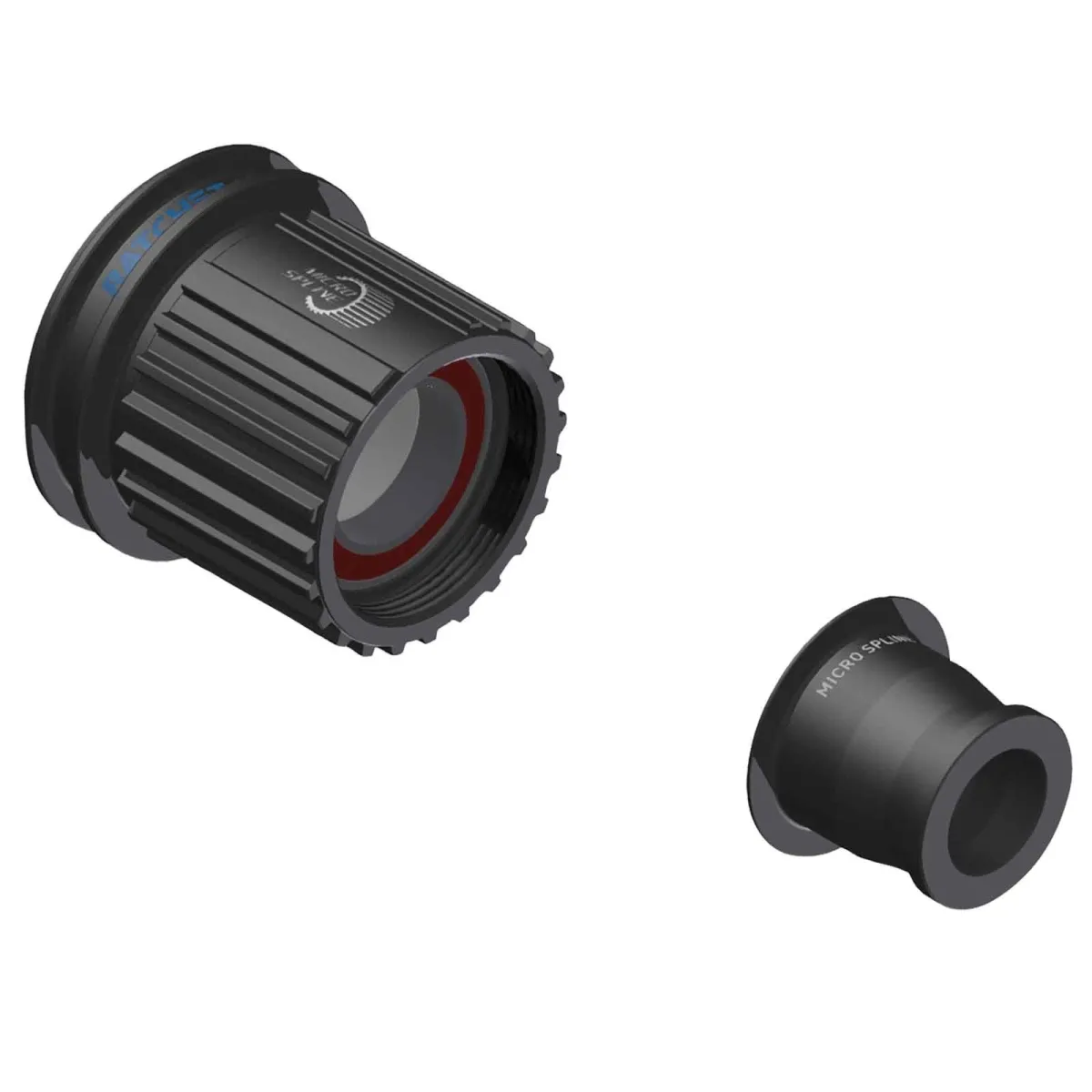

• The kit includes the freehub body and the right-hand frame stop for 12x142mm, 12x148mm or 12x157mm thru-axle mounting. The right-hand end stops for the mounting dimensions are the same; the hub widths differ.
• The Ratchet EXP freehub bodies are only compatible with DT Swiss 240 EXP, 240 EXP OS, 180 MTB hubs and rear wheels fitted with these hubs. A separate version is available for DT Swiss road bike hubs.
• DT Swiss manufactures specific right-hand end stops for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end stops for older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with Pawl / 3-pawl, Ratchet LN, Ratchet Star or Ratchet DEG hubs.
Not compatible with road bike hubs and wheelsets.
Not suitable for converting hubs to a different installation dimension.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
