DEG Freehub Body DT Swiss MTB

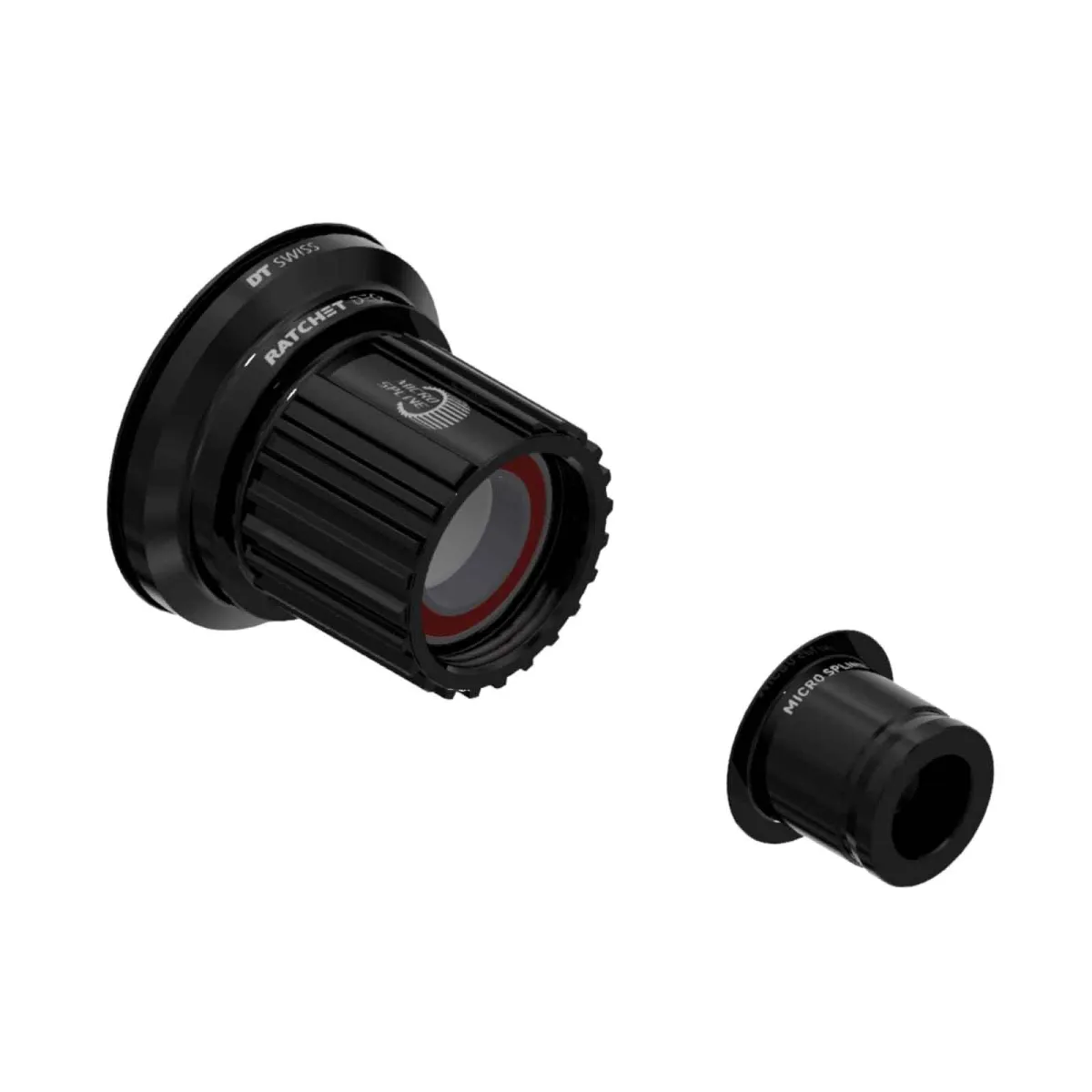

For converting DT Swiss 350 and 240 DEG MTB hubs, equipped with the Ratchet DEG system, to the Shimano Micro Spline system for 12-speed Micro Spline cassettes.

• The kit includes the freehub body and the right-hand frame stop for 12x148mm or 12x157mm thru-axle mounting. The right-hand end stops for the mounting dimensions are the same; the hub widths differ.
• The Ratchet freehub bodies are only compatible with DT Swiss 350 DEG and 240 DEG MTB hubs and MTB rear wheels fitted with these hubs.
• DT Swiss manufactures separate right-hand end caps for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end stops for older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with Pawl / 3-pawl, Ratchet LN, Ratchet Star, Ratchet DEG hubs.
Not suitable for converting hubs to a different installation dimension

These Micro Spline MTB freehub bodies for mountain bike hubs are 1 mm narrower than the version for road bike hubs and therefore cannot be used on road bike hubs or road bike rear wheels

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
