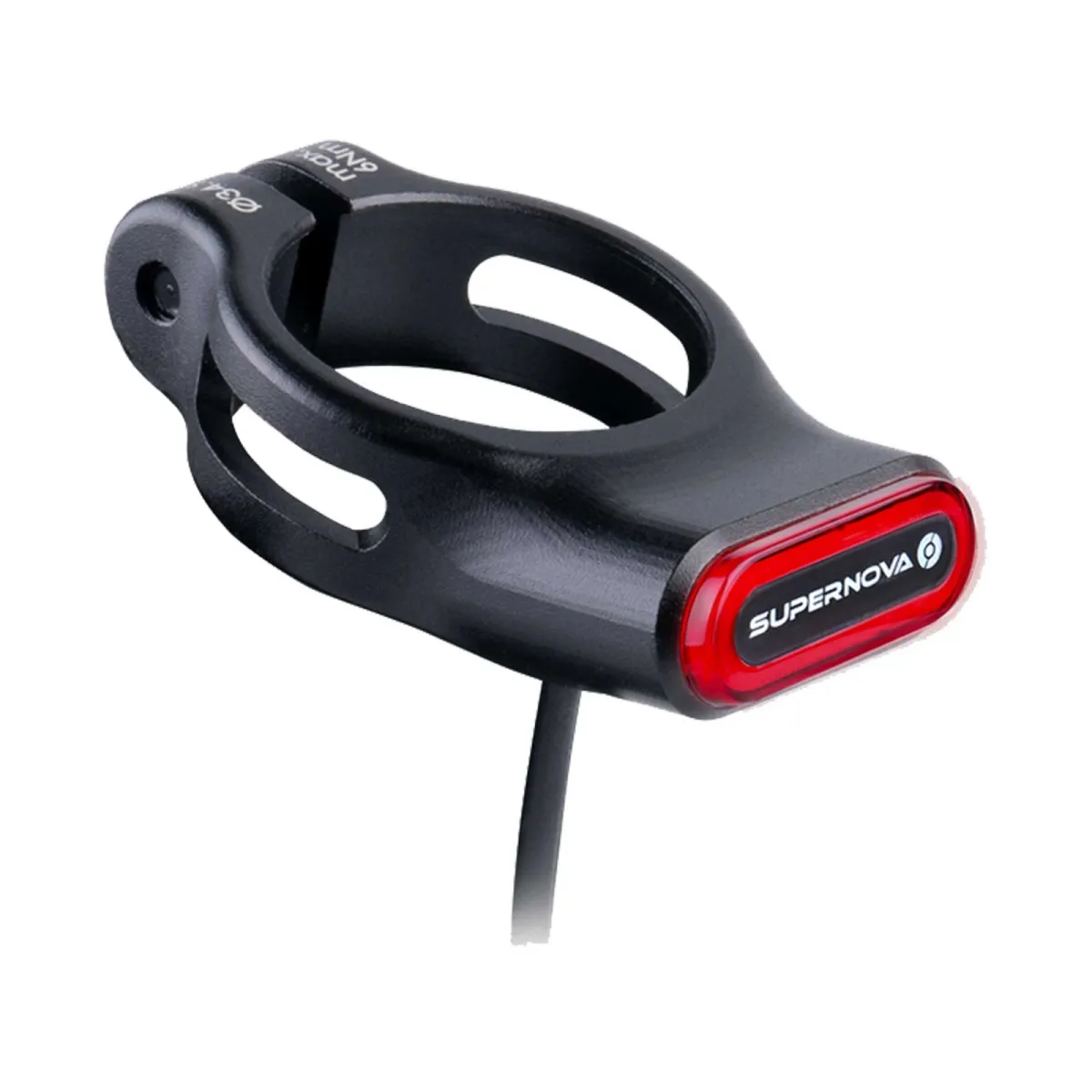

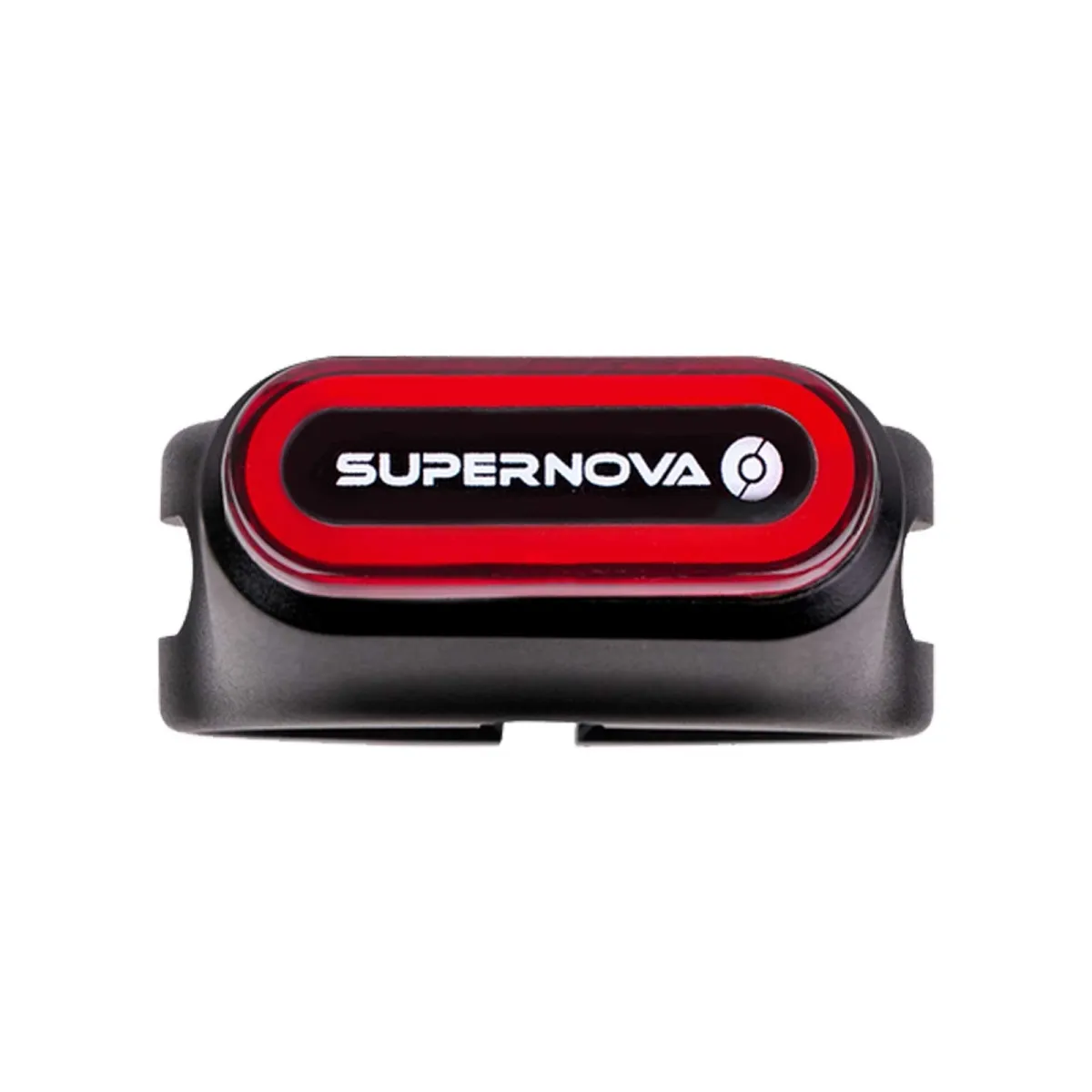

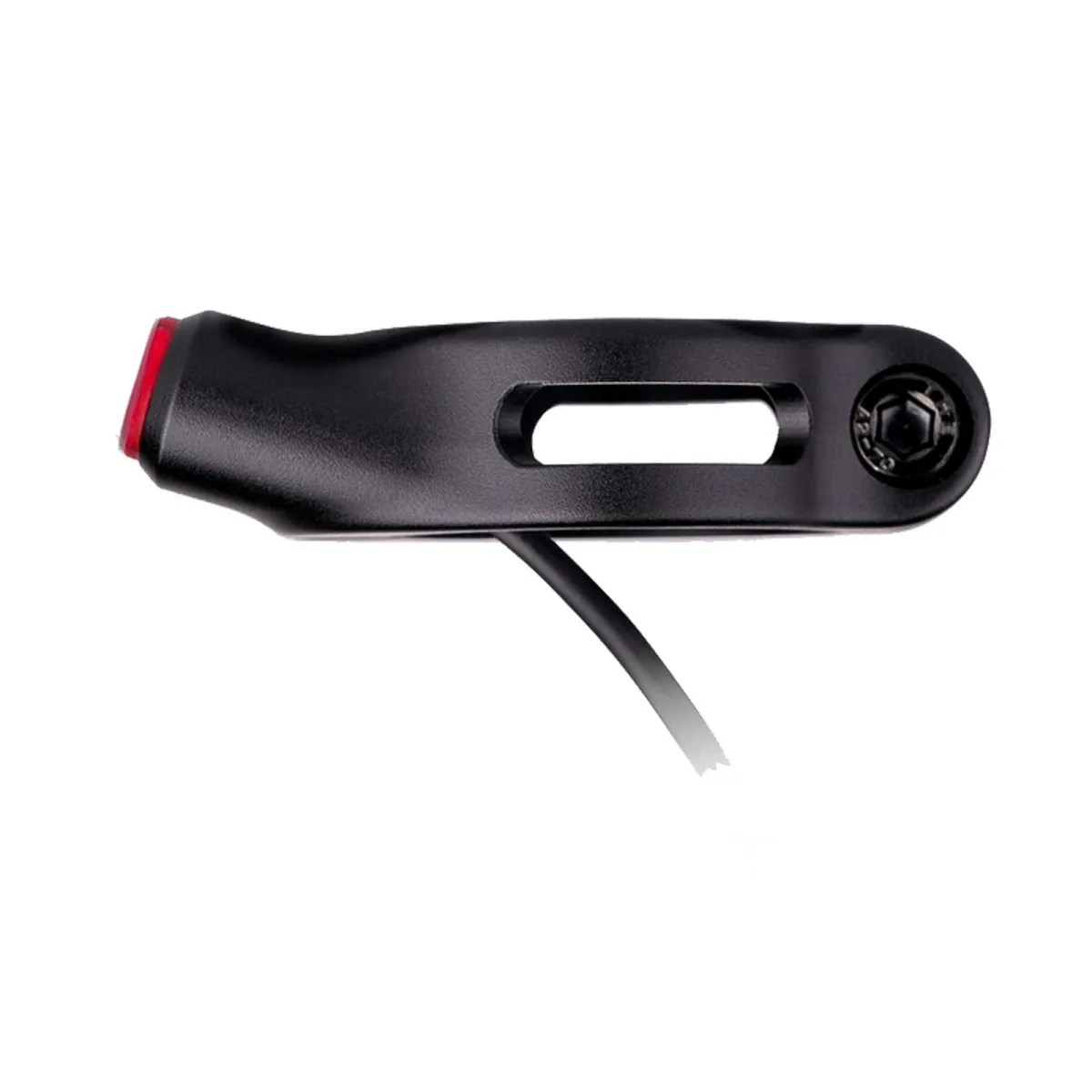

Supernova TL3 Mini Pro Seatpost Clamp E-bike Rear Light

The TL3 Mini Pro rear light from Supernova integrates a bright rear light with a brake light function into a stylish seatpost clamp.

Included in the scope of delivery:

• TL3 Mini Pro with cable
• Heat-shrink tubing, 6 mm diameter, 8 cm
• Connection crimp sleeve
• Cable ties

Supernova TL3 Mini Pro E-Bike-25 Seatpost Clamp Lamp Specifications and dimensions:

• 12 V DC
• Rear light: 0.3 W
• Brake light: 2 W
• Luminous intensity: 10 cd
• Parking light: Powered by e-bike system
• Clamping diameter 34.9 mm (for 31.6 mm seat post diameter)
• L x W x H: 67 x 41 x 17 mm
• Material: anodised aluminium, black
• Weight: 55 grams (manufacturer’s specification)
• Suitable for 27.2 or 31.6 mm seatposts
• Cable length to front light: 1400 mm
• StVZO approval

Supernova TL3 Mini Pro Seatpost Clamp

The new TL3 MINI PRO Seatpost Clamp: This rear light with brake light function is now stylishly integrated into a seatpost clamp – for maximum visibility and safety in an elegant design. Despite its small size, the high-density LED technology ensures extremely high luminance and a homogeneous light signature visible from afar, featuring the signature SUPERNOVA light ring. A robust and waterproof housing reliably protects the technology.
The SUPERNOVA MINI 2 PRO offers exceptional compactness combined with impressive performance figures. It even features a phenomenal high beam of 550 lumens and 160 lux. This ensures that even the densest undergrowth is brightly illuminated during a night ride. The low beam mode, with 235 lumens and 100 lux, also provides ample visibility without dazzling oncoming traffic.

Note: The seatpost clamp secures the seatpost within the frame. This clamp ring is not clamped at any height on the seat post, but sits on the upper edge of the vertical frame tube (seat tube). The clamping diameter of the frame clamp therefore does not correspond to the outer diameter of the seat post, but to the outer diameter of the seat tube at its highest point.

Herstellerinformation: SUPERNOVA, Industriestraße 26, 79194 Gundelfingen, Germany, https://supernova-design.com
