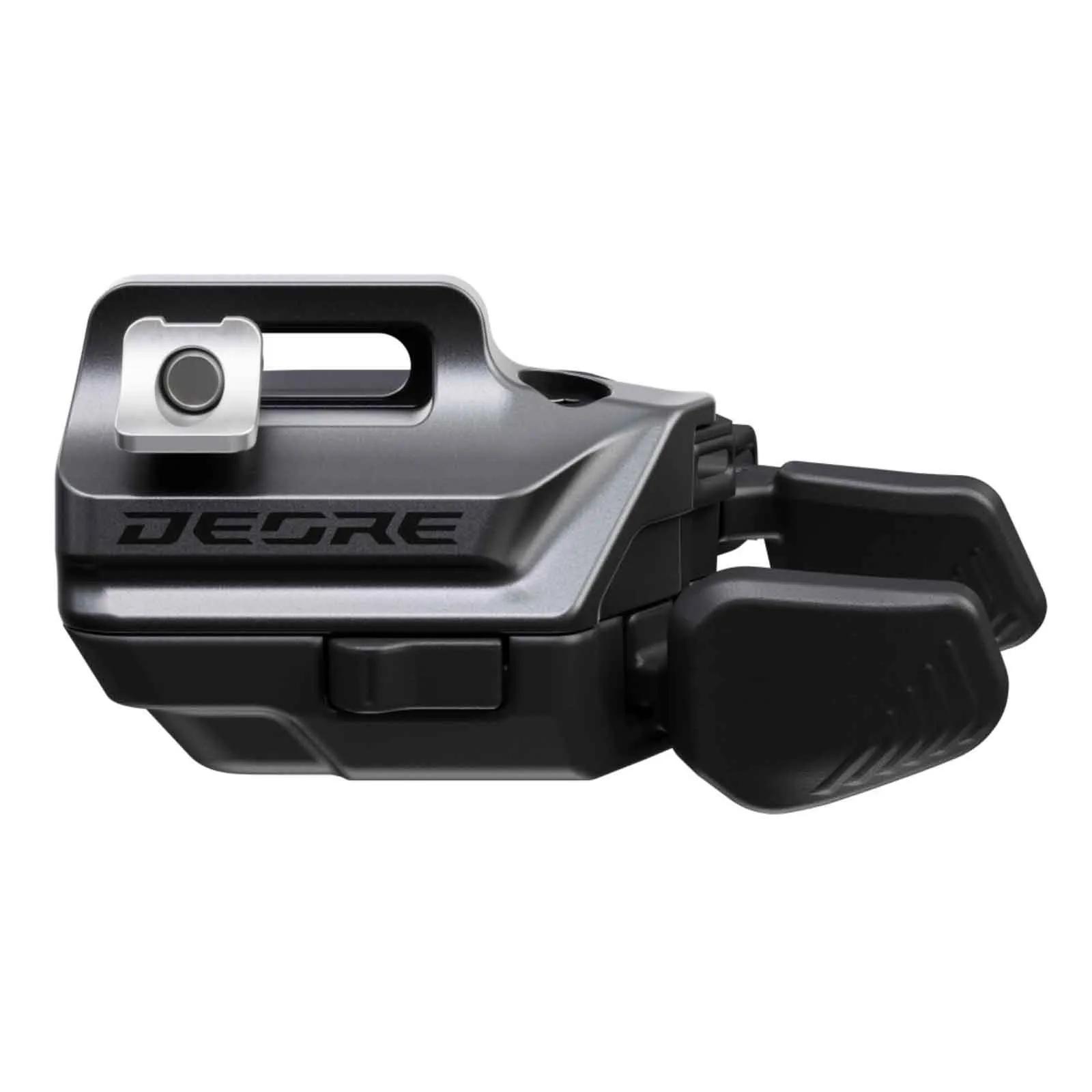

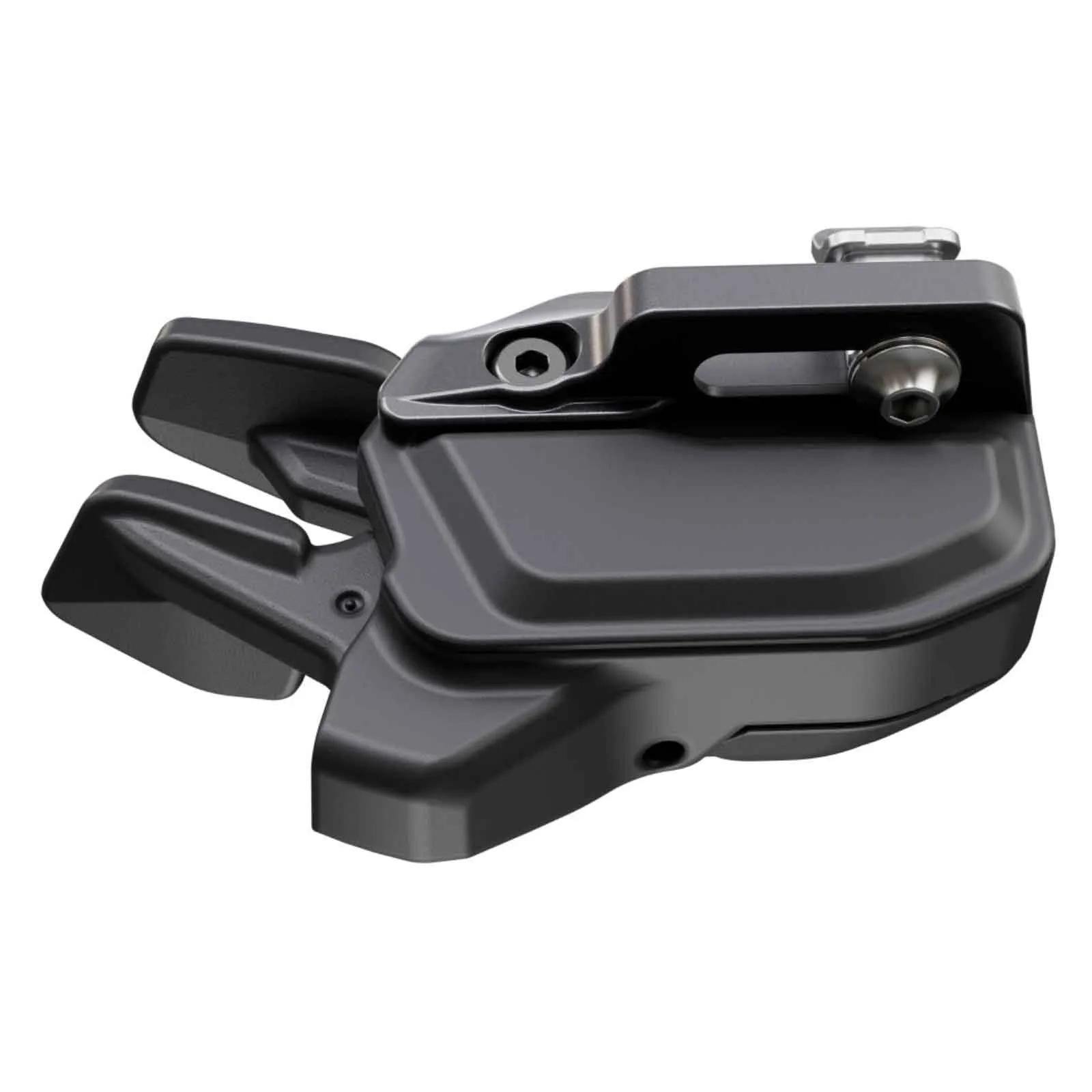

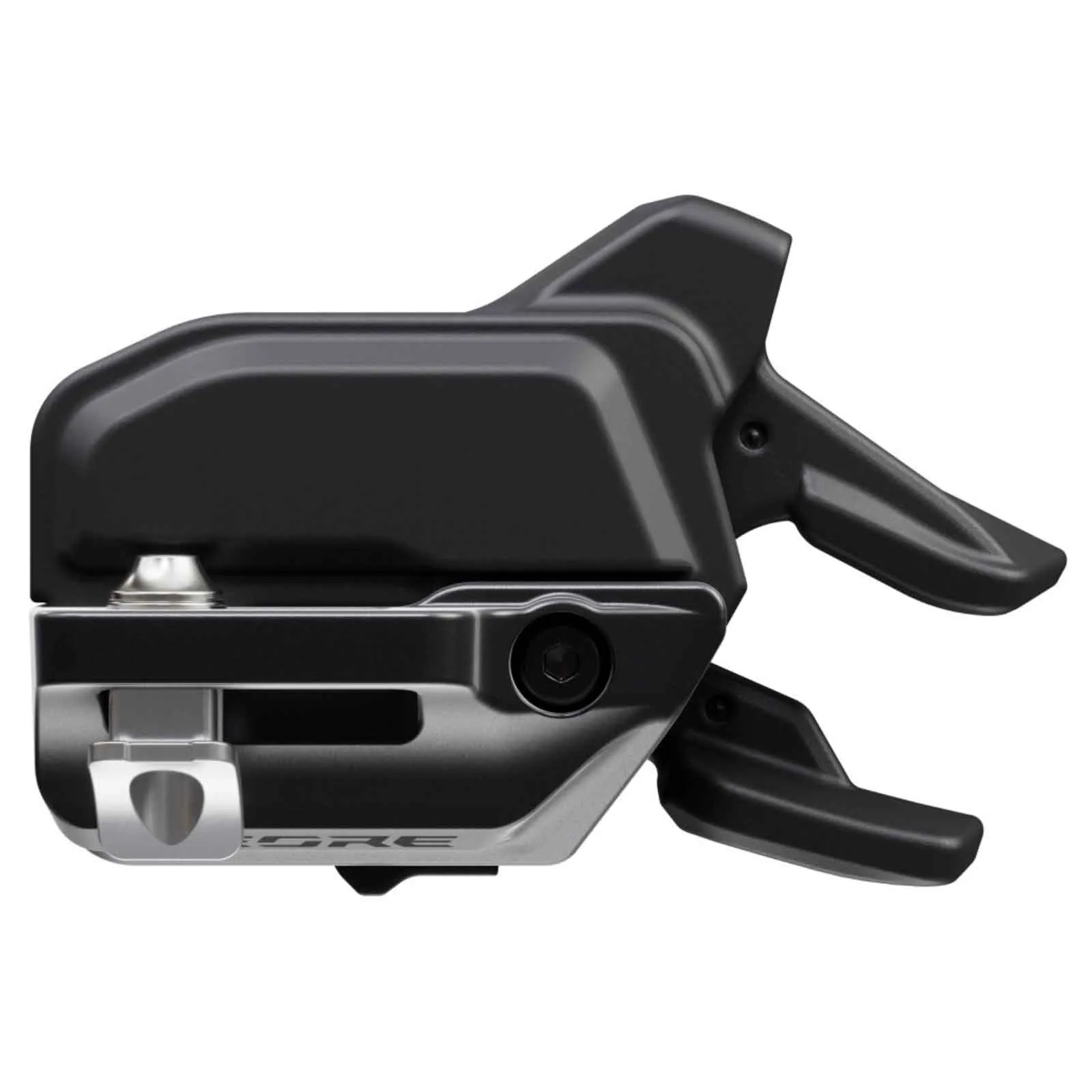

Di2 shift lever Shimano Deore SW-M6250-IR

The new Deore Di2 Rapid ES shift lever. Wireless, in the I Spec EV version for direct mounting on Shimano disc brake levers with the I Spec EV clamp

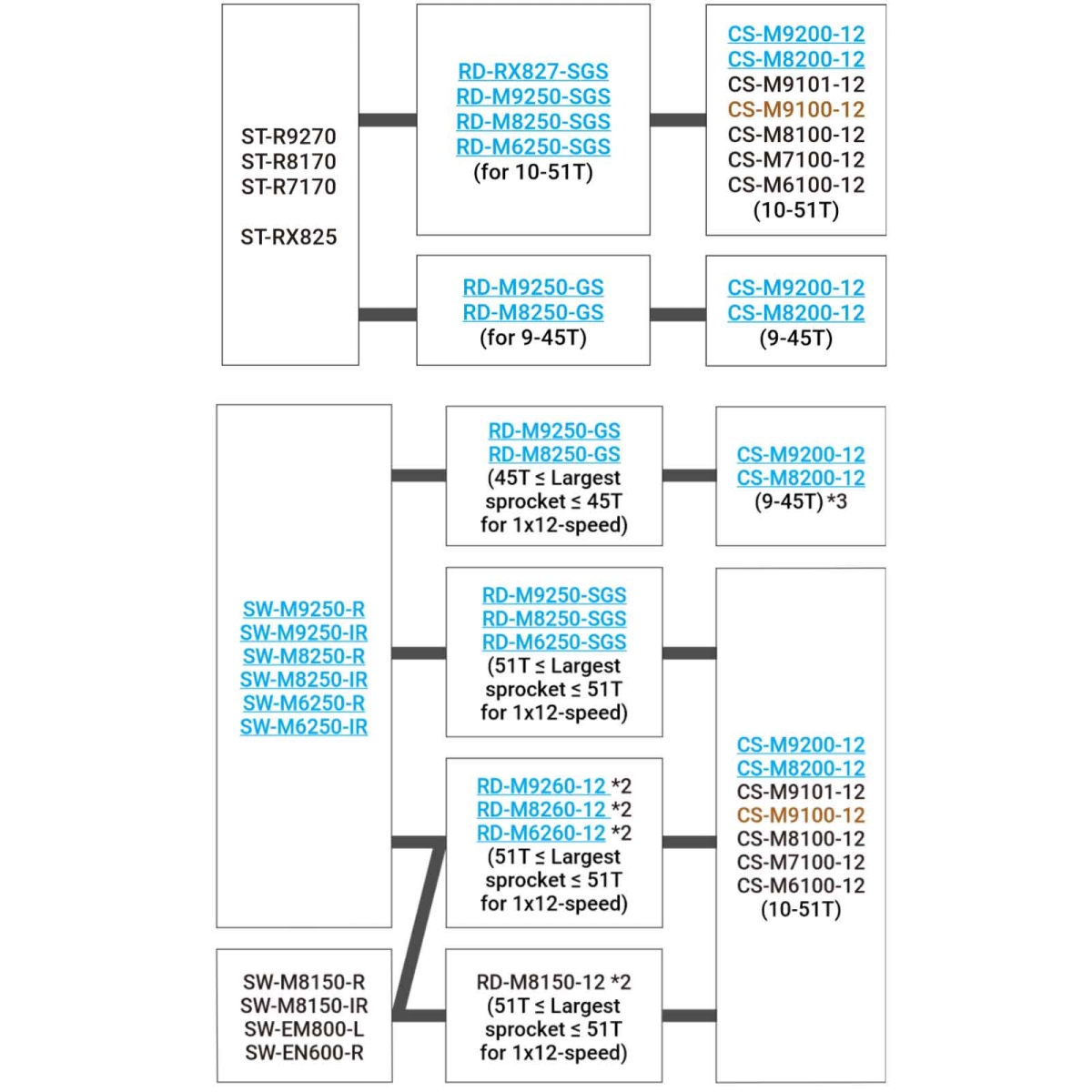

Shimano Deore M6250 Di2 Shift Lever Compatibility:

The new Shimano Deore M6250 shift lever series is compatible with Shimano 12-speed Di2 wireless rear derailleurs.

Shimano Deore SW M6250 Rapid ES Di2 shift lever technology and dimensions

• Adjustable lever position: forwards/backwards, up/down
• Basic function: Shift/adjustment mode
• Multi-shift
• Mode switch for single and double shifting
• Di2 connection wireless
• Switch1 Rear derailleur out Multi-function | 2 stages
• Switch1 Adjustable lever position Forward/backward, up/down
• Switch2 Rear derailleur inwards Multi-function | 2 positions
• Switch2 Adjustable lever position: forward/backward, up/down
• Switch3 Shift/adjustment mode Multi-function
• Compatible only with Shimano 12-speed Di2 wireless MTB rear derailleurs
• Batteries required: 2 x CR1632
• Weight approx. 90 grams, manufacturer’s specification

Shimano Rapid ES S-Deore SW-M6250-IR shifter:

The DEORE M6250 shifter offers the same precise and fast wireless shifting performance as the XTR and Deore XT groupsets, but at a lower price. The choice between single-click shifting mode and hold-down multi-shift mode ensures versatility, whilst the short-stroke shift buttons provide a natural feel. A distinct click prevents accidental shifts, and a configurable third button allows for additional system settings and adjustments via the E-TUBE app.

The Deore M6250 SHIMANO RAPID ES shifter feels natural right out of the box, but can be individually adapted to any hand thanks to its familiar fit and advanced adjustability. Different shifting modes such as Hold-Down Multi-Shift, tactile Click-Through Double-Shift or Locked-Out Single-Shift ensure precision, whilst a configurable third button allows for additional system tuning or connection to third-party devices.

• Ergonomic refinement: The familiar fit and multi-axis adjustability ensure a natural feel when shifting.
• Fast shifting: Precise, lightning-fast wireless shifting activated by SHIMANO’s most adjustable, customisable and pleasantly tactile shift levers.
• Fine-tuned: Assign a function to the programmable third button via the E-TUBE app and fully customise the shifter and e-bike to suit your needs.
• Versatile functions: With four-way adjustment, two-stage double shifting or multi-shift by holding the button, rubber traction pad, I-SPEC EV clamp and single/double mode switch.
• Long-life batteries 2 x CR1632

Shimano I-Spec EV direct mount:

Thanks to the wider adjustment range, the I-SPEC EV levers can be set to the optimal position for a wide variety of riding styles, rider preferences and rider anatomy (hand and arm position). With I-SPEC EV, the brake lever clamps are positioned further inwards. This creates an additional contact point between the handlebar and the brake lever, which increases the lever’s stiffness. This additional support significantly improves control over the bike and braking performance. At the same time, there remains space between the clamp and the support point for further handlebar-mounted accessories.

The EV I-Spec version of the Shimano shifters and brake levers offers a wide adjustment range – 14 mm sideways and 60 degrees of rotation – ensuring optimal shifter ergonomics. With the I-Spec EV version, the lever can be attached to the brake levers in a space-saving manner. The I-Spec EV version is not compatible with older Spec brake levers.

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
