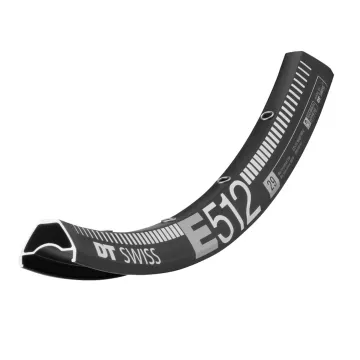

DT Swiss E 512 mountain bike rim

The Enduro rim from DT Swiss. With the E 512 rim, DT Swiss offers an extremely sturdy and wide rim for tough Enduro use. With its clean finish, the DT Swiss E 512 rim offers a very good stiffness-to-weight ratio.

DT Swiss E 512 Disc Rim Specifications and Dimensions:

• 29 inches / 700C, ETRTO: 622 x 25TC
• Hooked / Crochet tubeless
• ERD: 600 mm
• Aluminium rim, single-spoke
• Sleeve joint

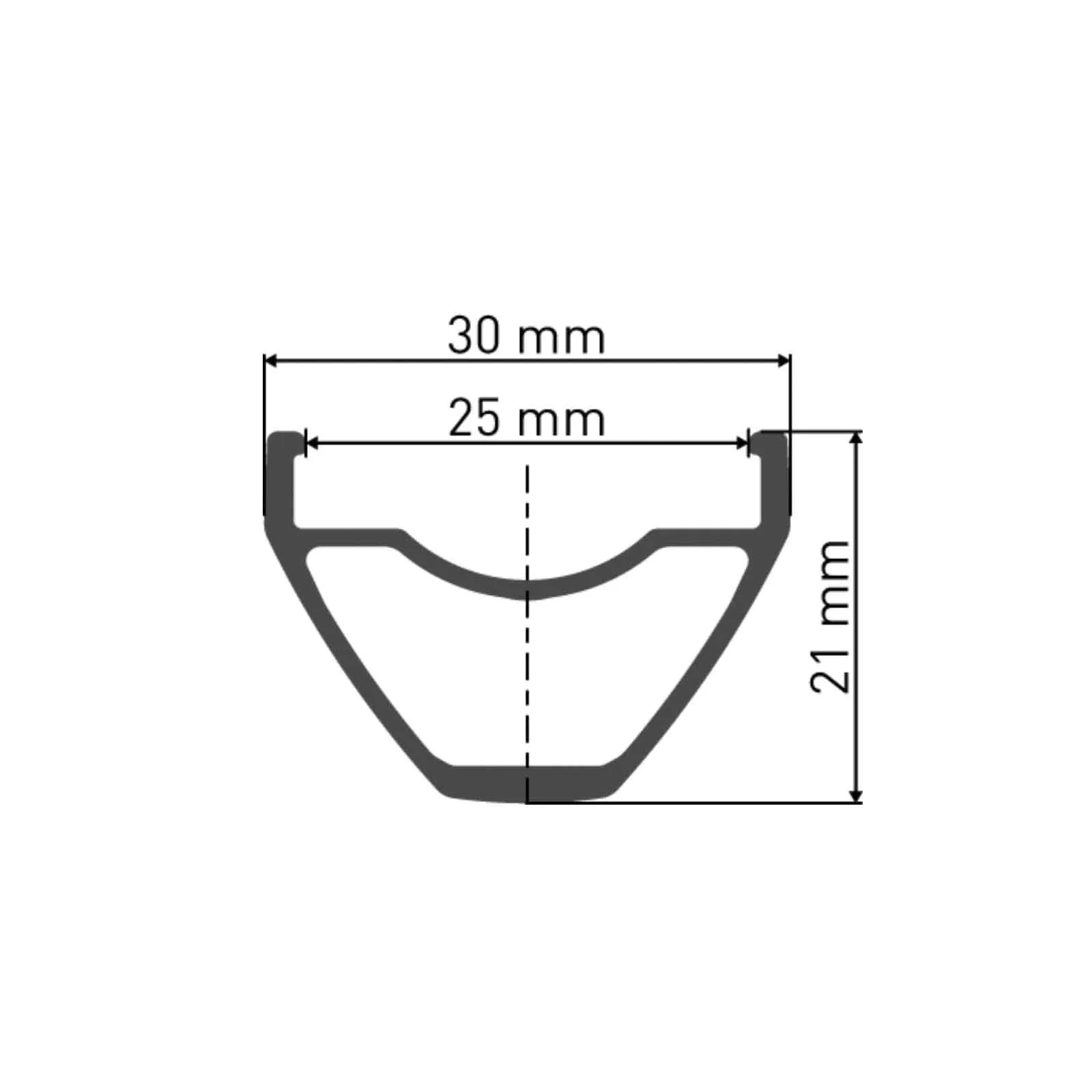

• Width: Inner 25 mm, Outer 30 mm, Height 21 mm
• Maximum recommended tyre width: 2.5
• Valve hole 6.5 mm
• Recommended rim tape: 27 mm
• Weight approx. 560g (manufacturer’s specification)
• Maximum system weight: 130 kg
• Approved for e-bikes: Yes (max. 32 km/h or max. 250 W)

Your custom wheel with the DT Swiss E 512 rim.

Ask us for a personalised quote. We’ll build your dream wheel, perfectly hand-trued. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Uphill under your own steam whilst having a leisurely chat with the lads, downhill in attack mode. That’s exactly what DT Swiss Enduro rims are designed for. Manufactured with the utmost precision from extremely durable aluminium alloys, the E 512 can handle even the most demanding trails.

The DT Swiss E 512 rim has been specially designed for enduro use and, with a 30 mm rim width and 21 mm rim height, offers optimum stability and control on demanding trails. The rim features individual eyelets and a butted rim joint, ensuring high durability. Weighing approx. 525 g (27.5") or 560 g (29"), it remains lightweight despite its robust construction. Tubeless-ready and compatible with clincher and folding tyres, it is suitable for tyre widths from 40 to 76 mm. This rim is the reliable companion for your enduro adventures.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.
