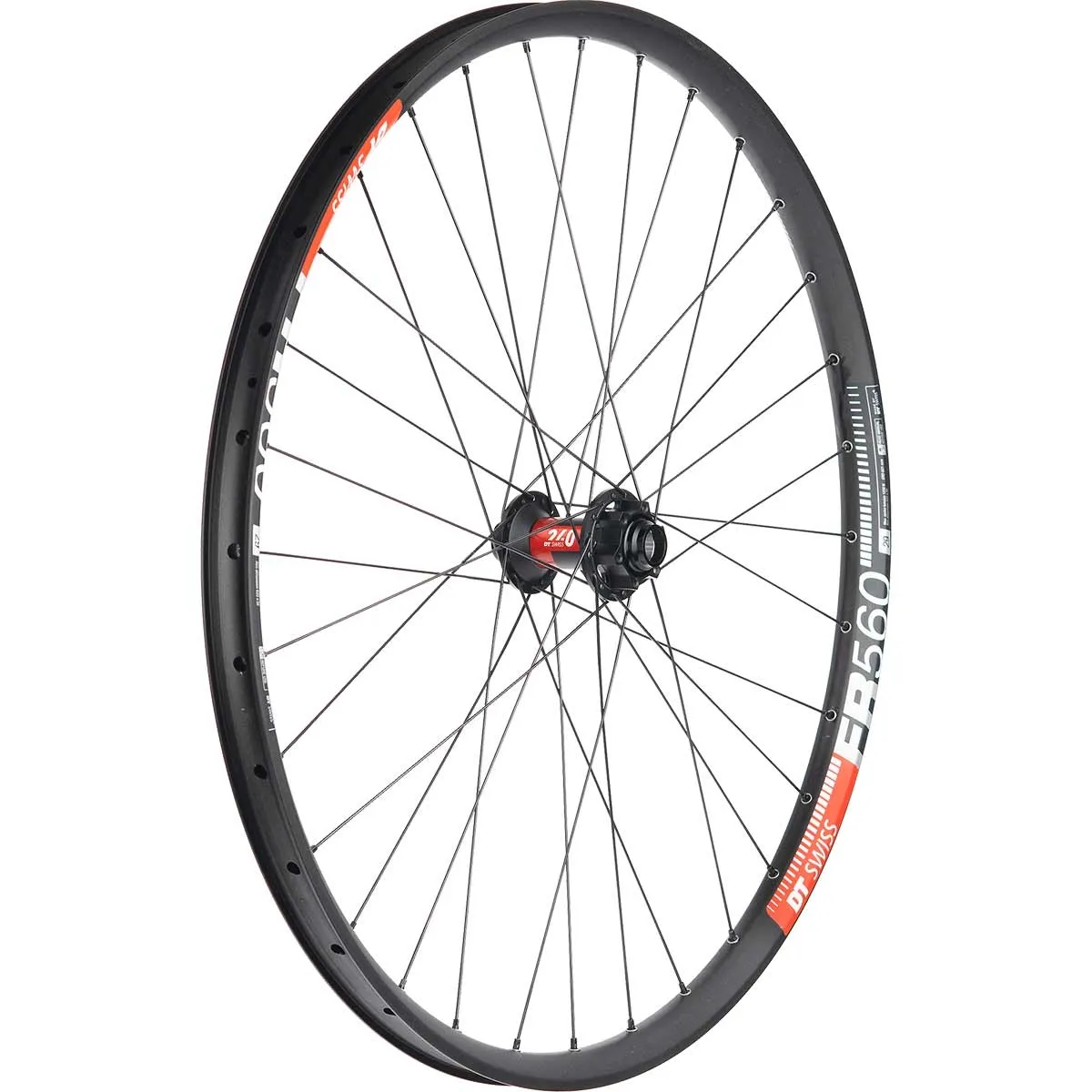

DT Swiss 240 EXP Disc Hub with FR 560 Rim

The high-end 26-inch freeride, enduro and downhill front wheel featuring the new DT Swiss 240 EXP hub and the super-sturdy DT Swiss FR 560 rim with a 30 mm rim width. The new, super-robust DT Swiss 240 EXP Classic hubs with the Ratchet EXP system, approved for a system weight of 140 kg

The DT Swiss FR 560 rims are only available with 32 holes; the matching 32-hole 240 hubs are only available in DH, Boost and Super Boost versions, Disc 6-hole and Disc Centerlock. The Centerlock hubs are only available in the Boost version

DT Swiss 240 EXP hub:

The DT Swiss 240 EXP hubs offer minimal weight combined with exceptional durability – a rarity, particularly in hub construction. The new axle system, with 15 per cent greater support width, increases hub stiffness. The ‘EXP’ in the DT Swiss 240 EXP hubs refers to the integration of the gear ring and threaded ring, which reduces the number of components and thus lowers the weight. A single coil spring ensures faster, complete engagement and thus greater reliability. The complete interlocking of the pawls creates a large contact surface and thus low point loads, resulting in superior reliability. The stainless steel ball bearings have proven to be extremely reliable and durable since the introduction of the 240 EXP hubs. The patented freehub body features interlocking toothed discs. This guarantees loss-free power transmission.

DT Swiss FR 560 rim:

The freeride and downhill rim from DT Swiss. The DT FR 560 was developed for the nastiest rock fields, roughest root sections and the steepest landings. With the FR 560 rim, DT Swiss offers an extremely stable and very wide rim with a 30 mm rim width for tough freeride and downhill use. Cleanly finished, with a welded rim joint, the DT Swiss FR rim offers outstanding strength. Troy Brosnan, Aaron Gwin and Brendan Fairclough, the fastest downhill riders with the most style, ride the FR 560. Approved by DT Swiss for a system weight of 140 kg.

Wheel building at TNC-Hamburg:

We hand-build these wheels exclusively for you. Thanks to over 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the material. These wheels are, of course, pressure-tested multiple times; we also pre-load the spokes in both the radial and lateral directions. This eliminates the need for re-truing over a long period of time. We use DT Swiss spokes exclusively. These ensure outstanding durability of the wheelsets. For DH and Enduro use, we recommend brass nipples.

These wheels are custom-made for you, so we cannot offer a right of return for them. Please feel free to enquire about other wheel configurations. We will then send you a quote.

Included in delivery:

Front wheel fully laced and hand-trued in our workshop with a DT 240 EXP hub, DT spokes, DT nipples as selected and a DT Swiss EX 511 rim. Excludes rim tape and valve

DT Swiss 240 EXP Classic MTB Disc front hub technology:

• Housing material: Aluminium
• Axle: Aluminium
• Stainless steel industrial ball bearings
• Seal-less sealing system
• Weight from 172 grams
• Front wheel hub available as:
  • DH 20x110 mm thru-axle mount, disc only, 6-bolt
  • Boost 15x110 mm thru-axle mount
  • Super Boost 20x110 mm thru-axle mount, disc 6-bolt only

DT Swiss FR 560 Disc 26-inch rims Specifications:

• ETRTO: 559 x 27.5, 26-inch
• ERD: 538 mm
• Aluminium rim, single-spoke
• Width: Inner 30 mm, Outer 35 mm, Height 22.5 mm
• Maximum recommended tyre width: 2.5
• Valve hole 6.5 mm
• Recommended rim tape: 584 x 29 mm
• Weight: 570 grams
• ASTM classification: 4

DT Competition spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheelsets. We recommend these spokes for virtually all wheelsets. Extremely durable and sufficiently lightweight, DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams

DT Swiss Aero Comp spokes:

Designed for stable, laterally stiff yet aerodynamic wheelsets, the DT Swiss Aero Comp spoke is first cold-forged in the middle section, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced combination of stiffness, aerodynamics and durability.

DT Swiss Aero Lite spokes:

The DT Swiss Aerolite spoke is flatter and lighter than any other; the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. Thanks to the 0.9 x 2.3 mm aerodynamic mid-section, this spoke can be fitted to all standard hubs. The Cold Forging Technology (CFT) developed by DT Swiss makes the reduced and forged DT Aerolite the lightest stainless steel spoke and gives it excellent mechanical properties. Particularly suitable for super-light and fast road or cross-country wheelsets. 64 DT Aerolite spokes weigh just an incredible 278 g at a length of 264 mm. Weight per spoke at a length of 264 mm: 4.31 grams

DT Squorx spoke nipples:

The DT Swiss Squorx Pro Head nipple combines ease of installation with light weight thanks to the DT Pro Head shape, combined with an additional Torx and square tool socket. The Torx socket provides a larger contact area during wheel building, ensuring that the force from the tool is better distributed across the nipple. The spherical contact area within the rim guarantees perfect alignment with the spoke.
