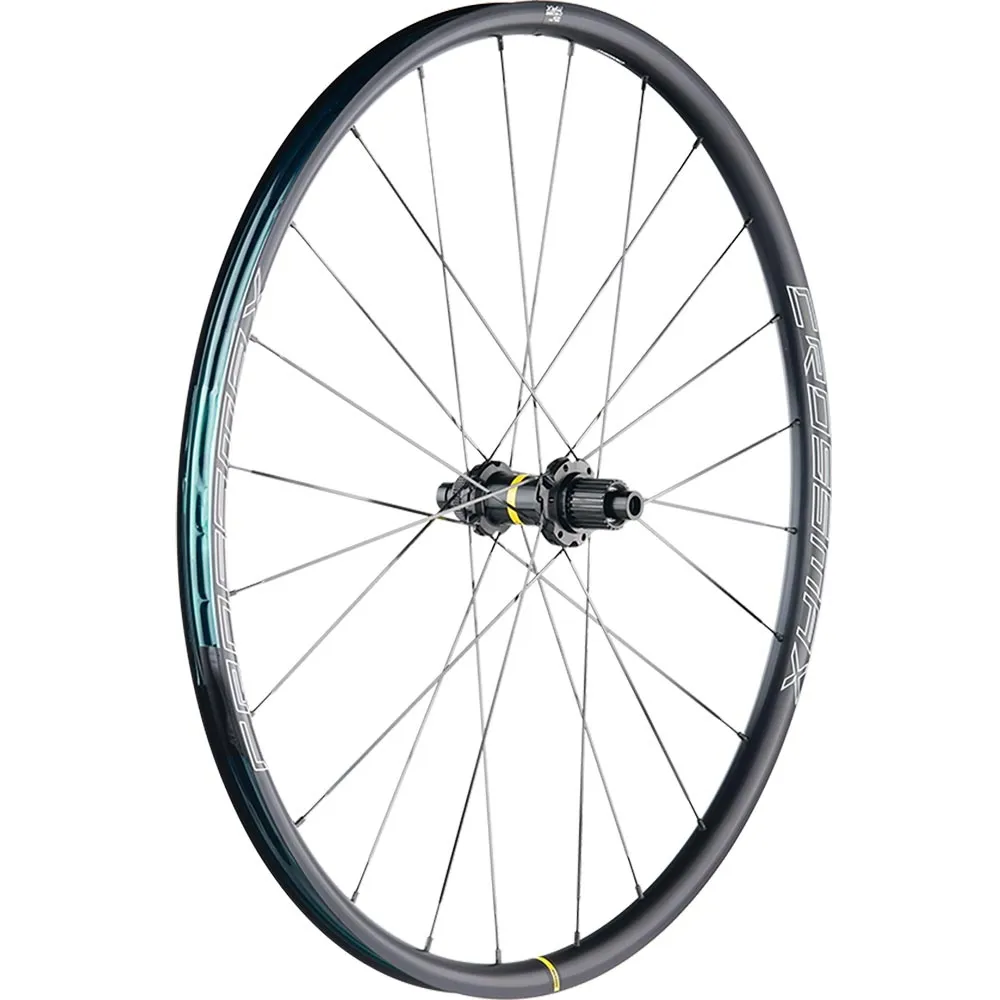

Mavic Crossmax wheelset

The affordable and sturdy Mavic Crossmax MTB wheelsets, significantly lighter at just 1680 grams for the set, featuring the super-robust Infinity hubs and new lightweight asymmetrical rims with a 25 mm rim width.

The extra-reinforced tubeless-ready rims, featuring a hookless design, make fitting tubeless tyres easier. The tubeless-ready Mavic Crossmax wheelsets – the sturdy cross-country, all-mountain and trail wheelsets – are recommended for tyre widths from 2.0 to 2.5.

One of the top features is Mavic’s UST technology, which enables a particularly user-friendly set-up with tubeless-ready tyres and offers all their benefits: from better traction and control to smoother rolling and a lower risk of punctures. To achieve this, Mavic uses a hookless rim profile with a 25 mm internal width, ideal for the latest XC tyres on the market. The wheel is built with 24 straight spokes on each side to save weight whilst maximising stability. Ultimately, this delivers the perfect balance of efficiency and durability. Power transfer is handled by our new Instant Drive 360 freehub, which is compatible with all standard axle standards.

Mavic Crossmax Infinity Disc hubs:

The proven Mavic QRM auto industrial bearings are used in the Infinity hubs. The widened bearing spacing ensures torsional stiffness of the hub, whilst the new spoke mounting ensures effective power transmission. Equipped with the Instant Drive sprocket freehub body and the ORM Auto axle system. The self-aligning bearing system of the rear hub, QRM Auto, works in conjunction with the sprocket freehub to ensure maintenance-free operation over a long period.

Mavic Instant Drive 360 freewheel body

The Instant Drive 360 freehub system is super-light and ensures rapid engagement with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two pawls ensure fast and efficient power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG10 version for Shimano 8-11-speed / SRAM 8-10-speed, SRAM XD 11- and 12-speed, and Shimano 12-speed Micro Spline

Mavic Crossmax Tubeless Ready rims:

The new Crossmax rims are now even more rigid thanks to a welded rim joint. Manufactured with the Hookless profile, these rigid aluminium tubeless-ready rims are hardened using the H2 Hammer Hardening process and designed for tyres up to 2.5” wide. The tubeless rim tape is pre-fitted. Hammer Hardening. The special cold hardening process in the critical spoke hole area effectively prevents the formation of micro-cracks and significantly extends the rims’ service life.

Mavic Crossmax spokes

High-strength spokes, secured against twisting using the Mavic Self Lock System. The special shape of the spoke thread acts as an anti-rotation mechanism. The spoke remains firmly screwed into the spoke nipple and loses no tension whatsoever. This ensures the wheel remains perfectly centred at all times.

Mavic Crossmax Wheel Technology:

• 29 inches for clincher tyres – folding tyres, tubeless ready
• ETRTO size 29 inches: 622x25c
• Rim width: 28 mm (external), 25 mm (internal)
• Brake disc mount: Centerlock
• Hubs: aluminium body, black anodised, sealed industrial bearings, adjustable, direct spoke attachment
• Rim: 6106 aluminium, black anodised, butted, tubeless ready including tubeless rim tape
• Spokes: 24 straight steel spokes each
• Spoke pattern: 2.0/2.3 mm, double-butted, black, 2-cross
• Nipples: Brass, anti-rotation
• Boost rear wheel 148 mm clamping width for 12x148 mm thru-axle assembly, not convertible
• Instant Drive 360 steel sprocket freehub body, available as
  • HG10 aluminium freehub body for Shimano MTB cassettes 8 + 9 + 10 + 11-speed and Sram MTB cassettes 8 + 9 + 10-speed
  • HG10 steel freehub body for Shimano MTB cassettes 8, 9, 10 and 11-speed and Sram MTB cassettes 8, 9 and 10-speed
  • SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
  • Micro Spline freehub body for Shimano 12-speed MTB cassettes
• Recommended tyre width: 2.0 to 2.5 inches
• Recommended rider weight: 120 kg
• ASTM Category 3: Cross Country / Trail

Mavic Crossmax wheel weights:

• Rear wheel: 950 grams

Contents of the Mavic Crossmax wheel set:

• Mavic Crossmax Disc Boost rear wheel, end caps for 12x148mm Boost mounting, tubeless rim tape

Mavic Crossmax 29-inch rear wheel 2022 spare parts

• Item No: V3766715, Replacement rim, front or rear wheel
• Item No: V2381401, rear wheel steel spoke 296 mm including nipple
• Item No: M40076, rear wheel hub bearing type 6903, dimensions 17x30x7 mm
• Item No: V2375701, Rear axle kit Boost 12x148mm Disc Centerlock with installation kit
• Item No: V2252701, Sprocket mount with retaining ring
• Item No: V00063631, Seal with grease for Instant Drive freehub body
• Item No: V2372901, Springs for Instant Drive freehub body
• Item No: V2375401, Sprocket kit 24-tooth Instant Drive
• Item No: V2372801, Instant Drive 40-tooth sprocket kit
• Item No: V3780101, Instant Drive aluminium freehub body HG10
• Item No: V3790101, Instant Drive steel freehub body HG10
• Item No: V3740101, Instant Drive aluminium freehub body Sram XD
• Item No: V3990101, Instant Drive aluminium freehub body Shimano Micro Spline
• Item No: V2373001, Left-hand bearing cover with retaining clip for QRM Auto hub
• Item No: V2510801, End stops Instant Drive hub 10x135 mm for quick-release mounting
• Item No: V2510901, End stops for Instant Drive hub 12x135 mm for thru-axle mounting
• Item No: V2510701, End stops for Instant Drive hub for 12x142/148 mm thru-axle mounting

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
