DT Swiss ARC 1100 DB 65 WTS wheelset

The third generation and the fastest yet, the ARC 1100 DICUT wheels are wider, taller and lighter, featuring new rim profiles and a 22 mm rim width, delivering a perfect blend of acceleration, aerodynamics and handling. Available as a Wheel Tire System (WTS) with Grand Prix 5000 S tyres and TPU inner tubes.

Included:

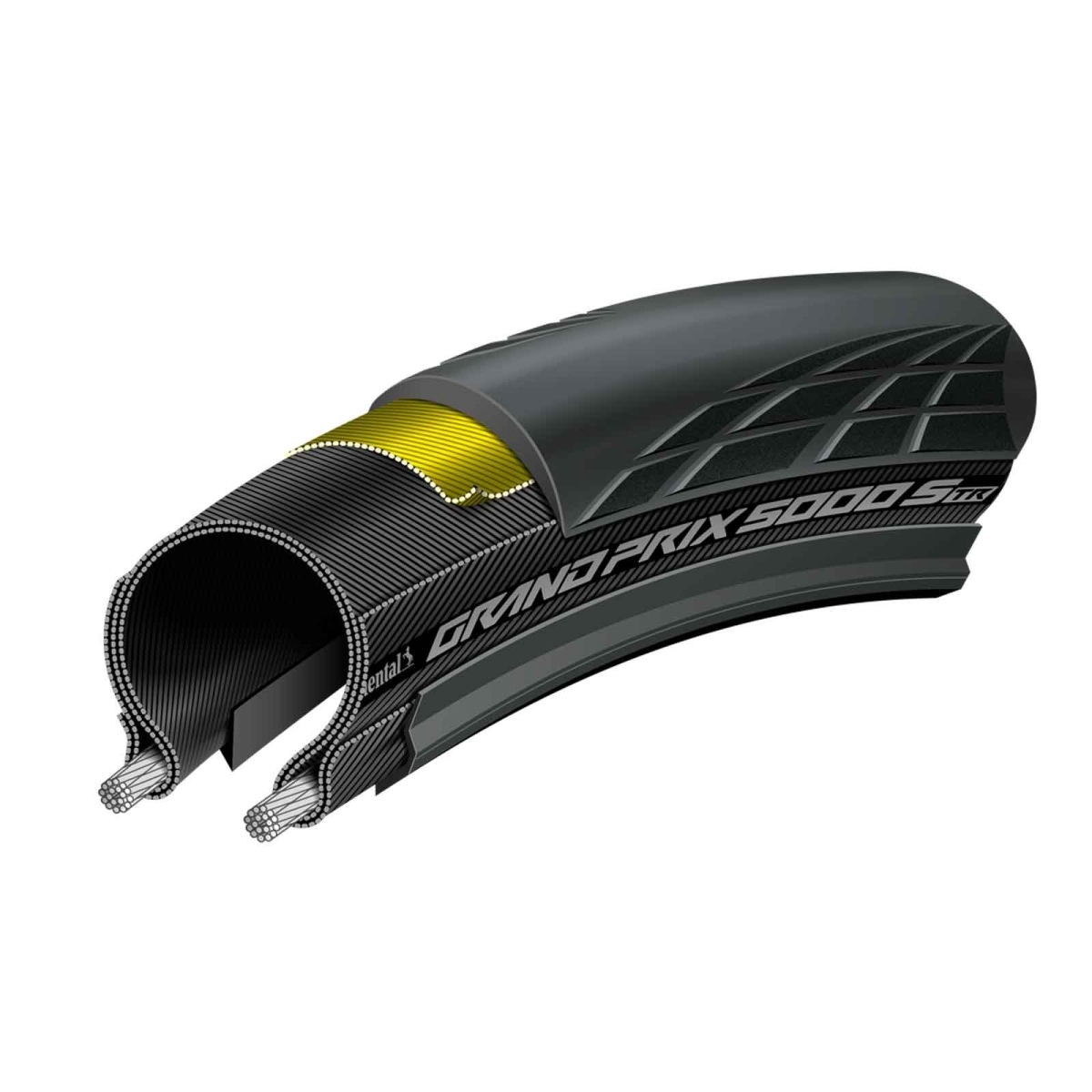

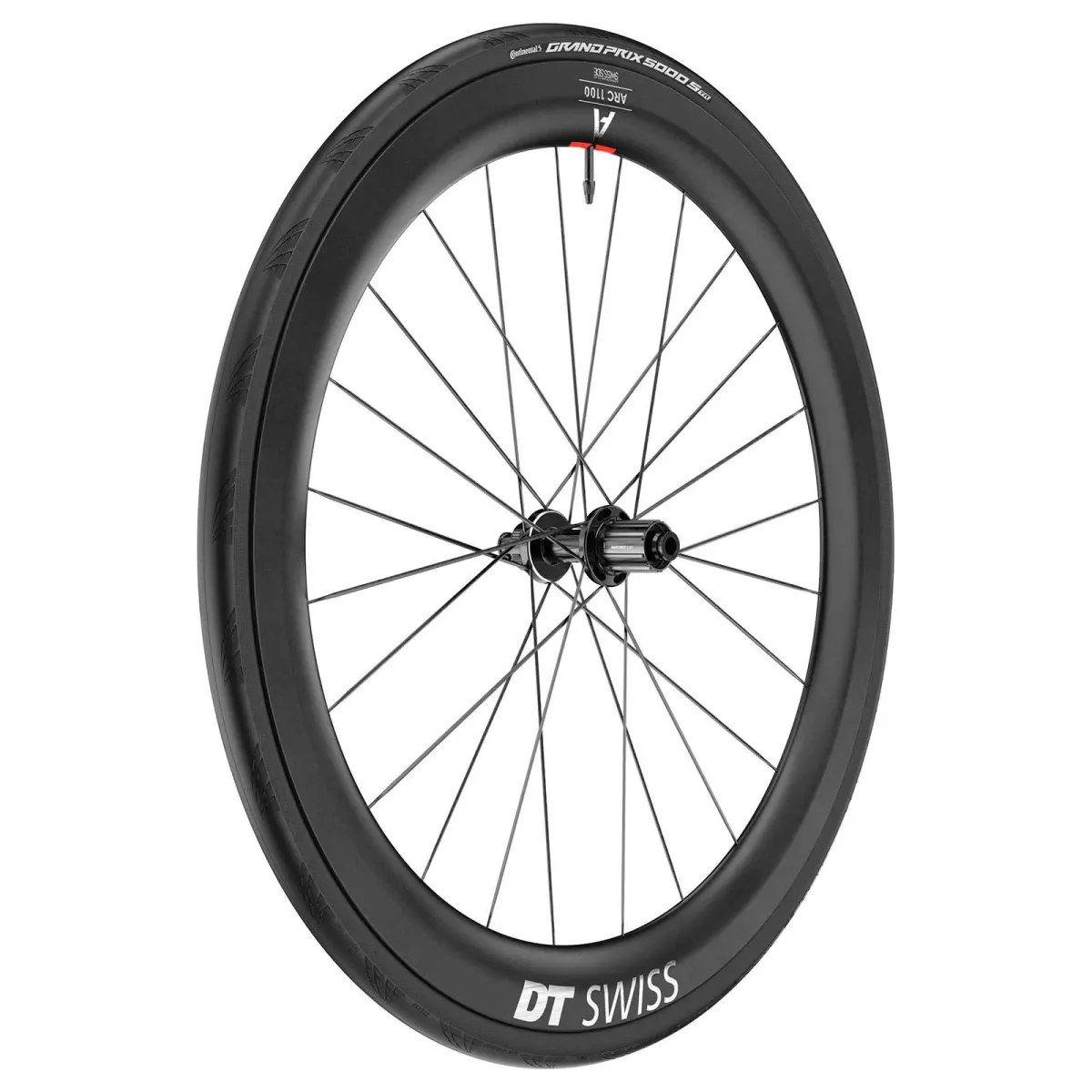

• DT Swiss ARC 1100 Dicut DB 65 rear wheel, freehub body as selected, tubeless rim tape, tubeless valve, Continental Grand Prix 5000 S TR 30mm tyre, TPU inner tube

DT Swiss ARC 1100 Dicut 65 Disc wheel technology and dimensions:

• 28 / 29 inch, 700C, ETERO 22x622 rims
• Full carbon rims for folding and clincher tyres, tubeless ready
• Rim type: Hooked / Crotchet tubeless TC

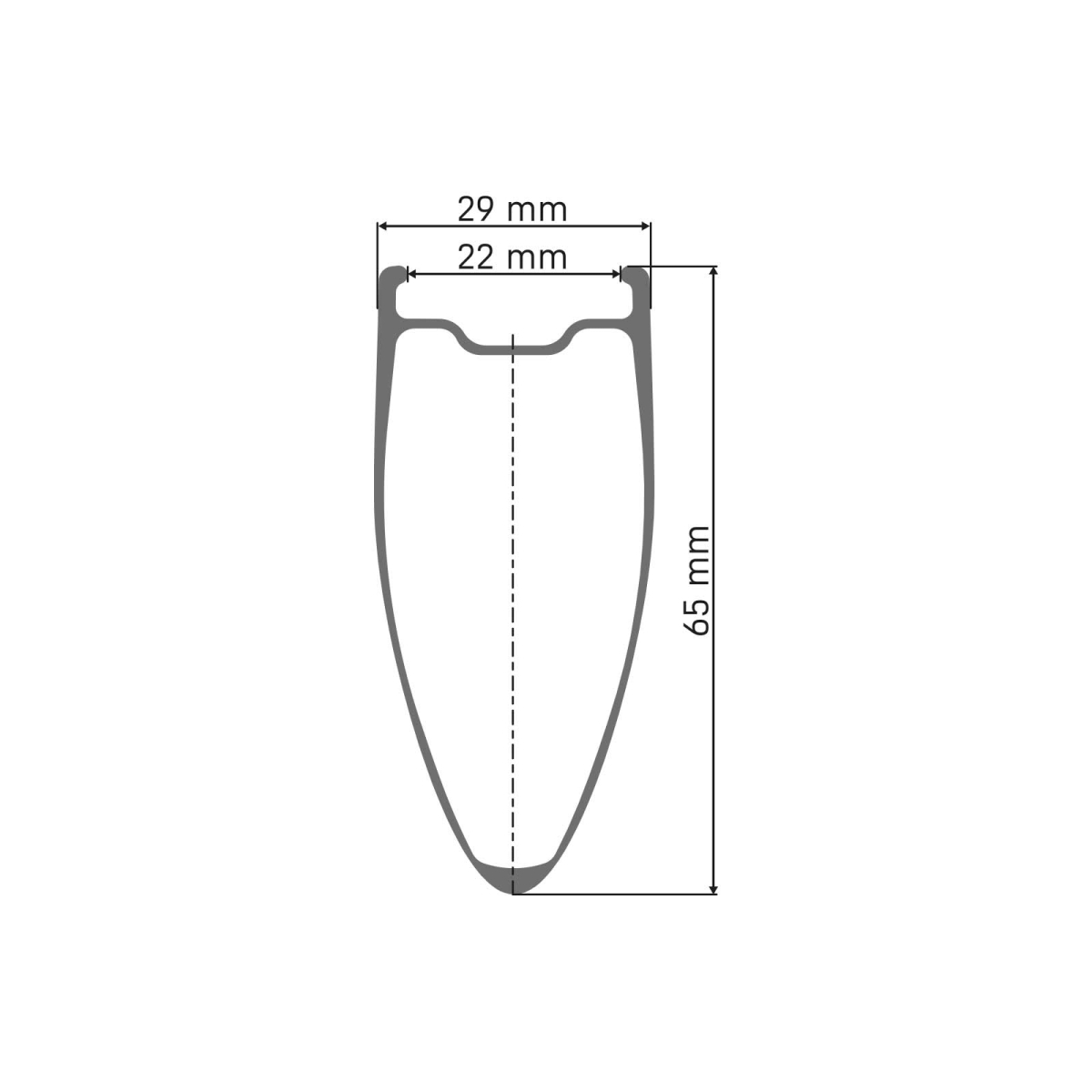

• Rim dimensions 622x22, outer width 29mm, height 65mm
• High-end hubs based on 180mm with sprockets and ceramic ball bearings
• Disc Centerlock brake disc mount, Centerlock adapters are available as an option
• Cold-forged DT Swiss Aerolite II spokes
• Pro Lock hidden special nipples
• Spoke pattern: Front wheel 20 spokes, 2-cross lacing; Rear wheel 24 spokes, 2-cross lacing
• Aero front hub Dicut 180, optionally with 12x100mm thru-axles and 9x100mm quick-release hub stops
• Dicut 180 aero rear hub, optionally with 12x142mm or 12x135mm thru-axles or 10x135mm quick-release hub end caps
• Ratchet EXP aluminium freehub body, available as:
  • HG11 freehub body compatible with Shimano and SRAM road cassettes (8, 9, 10 and 11-speed), including Shimano 12-speed road
  • Campa ED freehub body compatible with Campagnolo 9-, 10-, 11- and 12-speed cassettes
  • Campa N3W freehub body for Campagnolo 13-speed cassettes
  • SRAM XDR freehub body compatible with SRAM road bike AXS 12-speed and MTB XG 11- and 12-speed cassettes
• Weight without and with tyres: Set 1519 / 2159 grams, front wheel 706 / 1021 grams, rear wheel 813 / 1138 grams Manufacturer’s specification
• Maximum recommended rider weight 110 kg
• ASTM classification 1
• Delivered with tyres and inner tubes fitted
• NOT approved for e-bikes!

The lead is taken, not given ARC third generation: wider, higher, lighter. If you want to be at the top, you have to be able to hold your own. The pursuers are hot on your heels, trying to take the lead. Since we launched our benchmark-setting ARC wheels on the market, we haven’t rested on our laurels and have continuously improved them. With the 3rd generation of wheels, we have reached a new high point in our development. Wider tyres offer better grip and greater riding comfort. To enable the use of such tyres, we have adapted the rim shape accordingly and continue to ensure a competitive edge. The third generation is characterised by a larger inner rim width and a unique V-shape, without compromising on aerodynamics. Thanks to our Wheel-Tire-System technology (WTS technology), the ARC wheels can be used with AERO 111 tyres, thereby optimising aerodynamics. Wider, taller and lighter: with our new wheels, we can achieve our development goals and are well on our way to the top. Experience a thrilling ride with these wheels that will lead you to your personal victory. Victory isn’t handed to you on a plate. You have to earn it.

A wider rim width has a direct effect on the frontal area of the wheel. The V-shaped rim compensates for this and optimises aerodynamic drag. Wind tunnel tests show that this shape minimises aerodynamic drag. At the same time, the steering torque – i.e. the force acting on the steering under crosswinds – remains low. This has a positive effect on handling characteristics. DT Swiss WTS, Wheel Tire System

When Swiss Side’s aerodynamic expertise, Continental’s tyre know-how and DT Swiss’s wheel expertise come together, the result is not just the AERO 111 tyre, but a perfected storm. Specially designed aero chambers form the basis for the tyre’s patented tread pattern and generate a turbulent airflow on the surface, which keeps the oncoming air flowing along the rim shape for longer. The result is an optimisation of the sail effect, which delays early flow separation from the rim and thus forms the basis for the most advanced aero wheel-tyre system. It doesn’t matter whether you or your friends are aiming for personal bests or competing in professional races: the tyre reduces wind resistance whilst improving handling and ride characteristics, propelling you forward.

Conti AERO 111 tyres:

The next generation of aerodynamic road bike tyre performance, developed in close collaboration with the experts at DT Swiss and Swiss Side. The AERO 111 is based on the race-proven technologies of the GP5000 TR series and sets new standards in aerodynamics. The race-optimised Black Chili Compound ensures excellent grip and lower rolling resistance, whilst the proven Vectran Breaker provides puncture protection. The patented, aerodynamically optimised tread design features 48 precision-moulded air chambers. These so-called ‘vortex generators’ create controlled turbulence, causing the airflow to cling to the rim for longer, which reduces drag and optimises handling in crosswinds.

DT Swiss Sinc Ceramic Bearings:

the high-end ceramic bearings from DT Swiss, specially optimised for DT Swiss hubs, offer maximum smoothness and minimal weight. In a special manufacturing process, the balls are rolled until their surface exhibits perfect roundness. Whilst the surface of conventional ceramic balls is not 100 per cent smooth, SINC Ceramic balls exhibit extremely high smoothness and, thanks to their perfect roundness, achieve extremely low rolling resistance. By combining these ceramic balls with high-quality steel bearing cups, the full potential of the bearings can be realised.

DT Swiss ARC 1100 Dicut rims:

The ARC 1100 carbon rims, developed entirely in collaboration with Swiss Side, offer excellent aerodynamics and superior handling in all wind conditions. Extensively tested and optimised in the wind tunnel, the ARC 1100 rims provide the best compromise between aerodynamics and handling. The finish is applied using a new process and does not affect aerodynamics in any way. With a 20 mm inner rim width, they are ideal for tyres from 25 mm wide and, of course, tubeless-ready.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

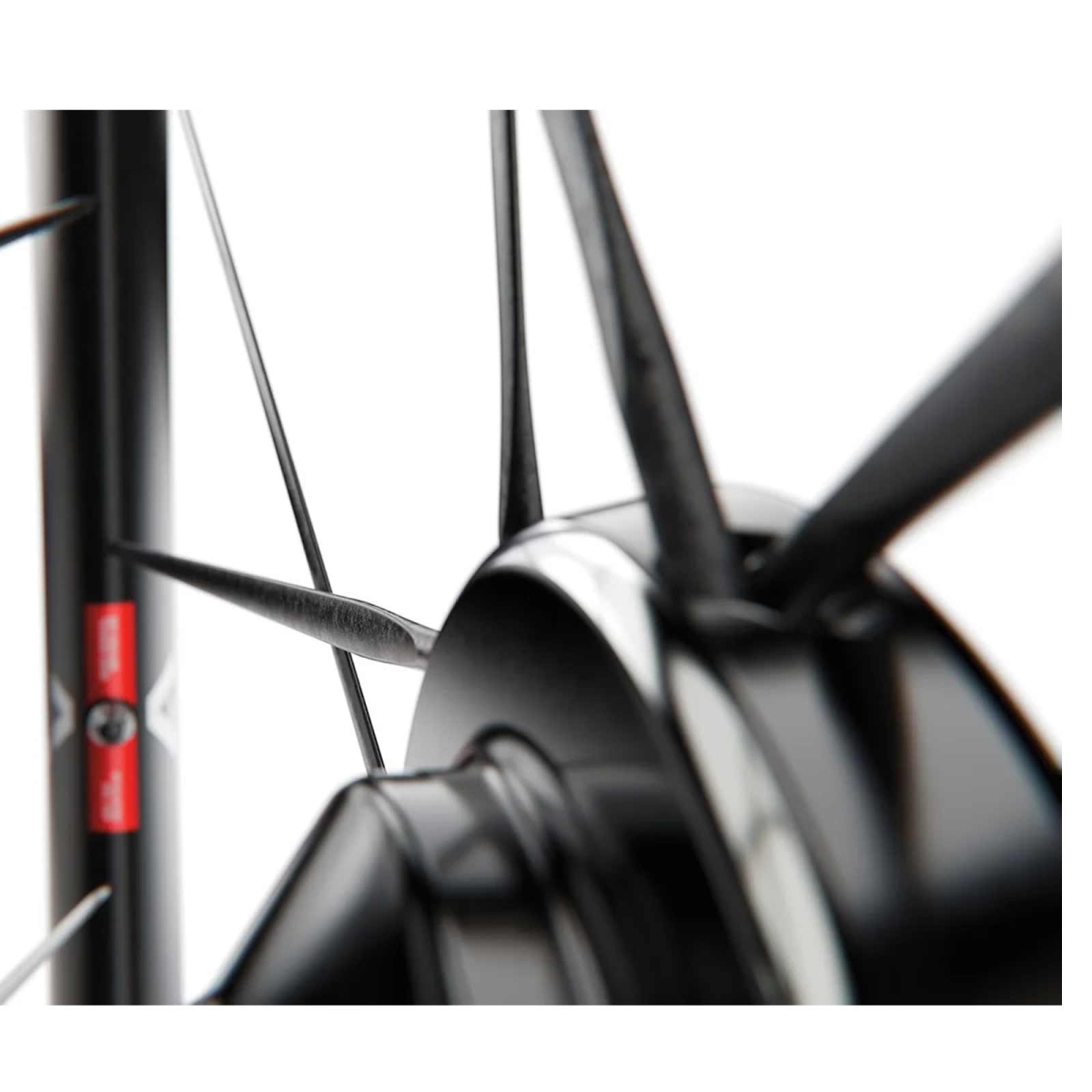

DT Swiss ARC 1100 Dicut spokes:

The lacing using the Nail Head System ensures that the spokes cannot twist under load, so the spokes always remain at the most aerodynamically favourable angle. Flatter and lighter than all others, the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. On the freehub side of the Dicut wheels, the slightly heavier and even more stable DT Ärcomp spokes are fitted.

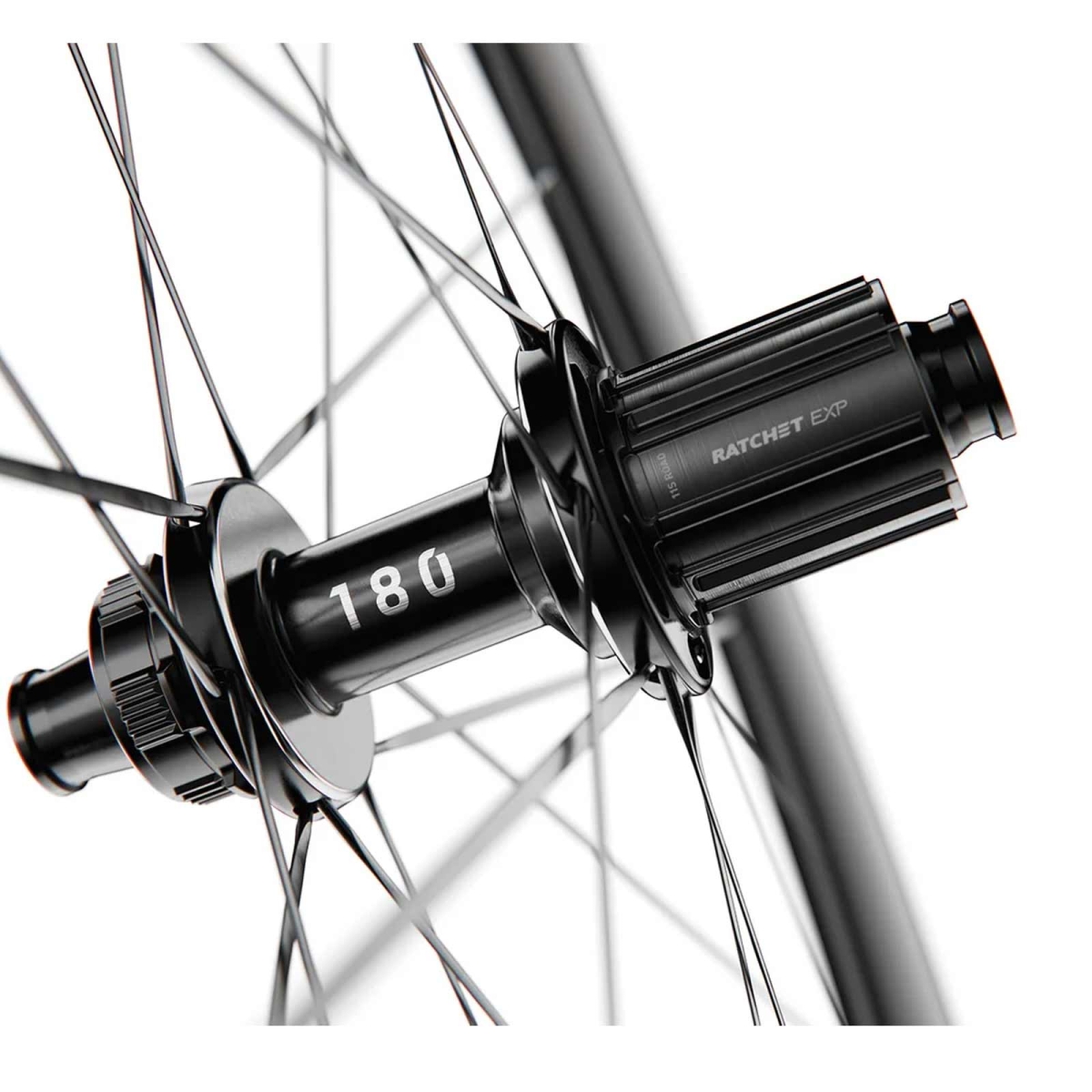

DT Swiss Ratchet EXP Freewheel:

Ratchet EXP is DT Swiss’s lightest freehub system and is therefore used in DT Swiss products designed for the most demanding requirements. It is fitted to the 180 and 240 hubs. The DT Swiss EXP Ratchet System hub system allows for easy conversion to various axle or rotor standards. The multi-tooth ratchet freehub body ensures loss-free power transmission. The rear hubs can be converted to Campagnolo ED and N3W, Shimano HG and Microspline, Sram XD and XDR freehub bodies without the need for tools.

Compatible freehub bodies for DT Swiss Disc Road rear wheels:

• HG11 freehub, 10x135 mm quick-release mount, Part No: HWGXXX00S7446S
• Microspline Road, 10x135 mm quick-release freehub, Part No: HWGXXX00S5623S
• Campa ED freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2766S
• Campa N3W freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S3191S
• Sram XD freehub, thru-axle mount, 12x142 mm, Item No: HWGXXX00S2790S
• SRAM XD freehub, 10x135 mm quick-release mount, item no.: HWGXXX00S2760S
• HG11 freehub thru-axle mount 12x142 mm, Item No: HWGXXX00S2770S
• Microspline Road, freehub 12x142 mm quick-release mount, Item No: HWGXXX00S5624S
• Campa ED freehub thru-axle mount 12x142 mm, Item No: HWYABX00S7154S
• Campa N3W freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S5641S
• Sram XD freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S3188S
• SRAM XDR freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S2771S

DT Swiss EXP Road Freehub Body

• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop, 12x142 mm thru-axle mount, Item No: HWYCBL00S5380S
• DT Swiss EXP Ceramic Bearing Rotor HG11 with End Stop 10x135mm Quick-release Mounting, Item No: HWYCBL00S5400S
• DT Swiss EXP Rotor HG11 with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S5378S
• DT Swiss EXP Rotor HG11 with end stop, 10x135mm quick-release mount, Item No: , Item No:
• DT Swiss EXP Ceramic Bearing Rotor Micro Spline Road with 12x142mm thru-axle mount, Item No: HWYCBL00S1959S
• DT Swiss EXP Rotor Micro Spline Road with end stop, 12x142mm thru-axle mount, Item No.: HWYABL00S1960S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo N3W with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S5705S
• DT Swiss EXP Rotor Campagnolo N3W with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S2993S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop, 12x142mm thru-axle mount, Item No.: HWYCBL00S7075S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 10x135mm quick-release mounting, Item No: HWYCBL00S7068S
• DT Swiss EXP Rotor Campagnolo ED with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S7074S
• DT Swiss EXP Rotor Campagnolo ED with end stop, 10x135mm quick-release mount, Item No: HWYABL00S7073S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 12x142mm thru-axle mount, Item No: HWYCBL00S5383S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop, 10x135mm quick-release mount, Item No: HWYCBL00S5402S
• DT Swiss EXP Rotor Sram XDR with end stop 12x142mm thru-axle mount, Item No: HWYABL00S5401S
• DT Swiss EXP Rotor Sram XDR with end stop, 10x135mm quick-release mount, Item No: HWYABL00S5382S
