DT Swiss Dicut ARC 1100 Disc 55 wheelset

The third generation and the fastest yet, the ARC 1100 DICUT wheels are wider, taller and lighter, featuring new rim profiles and a 22 mm rim width, delivering a perfect blend of acceleration, aerodynamics and handling.

Included:

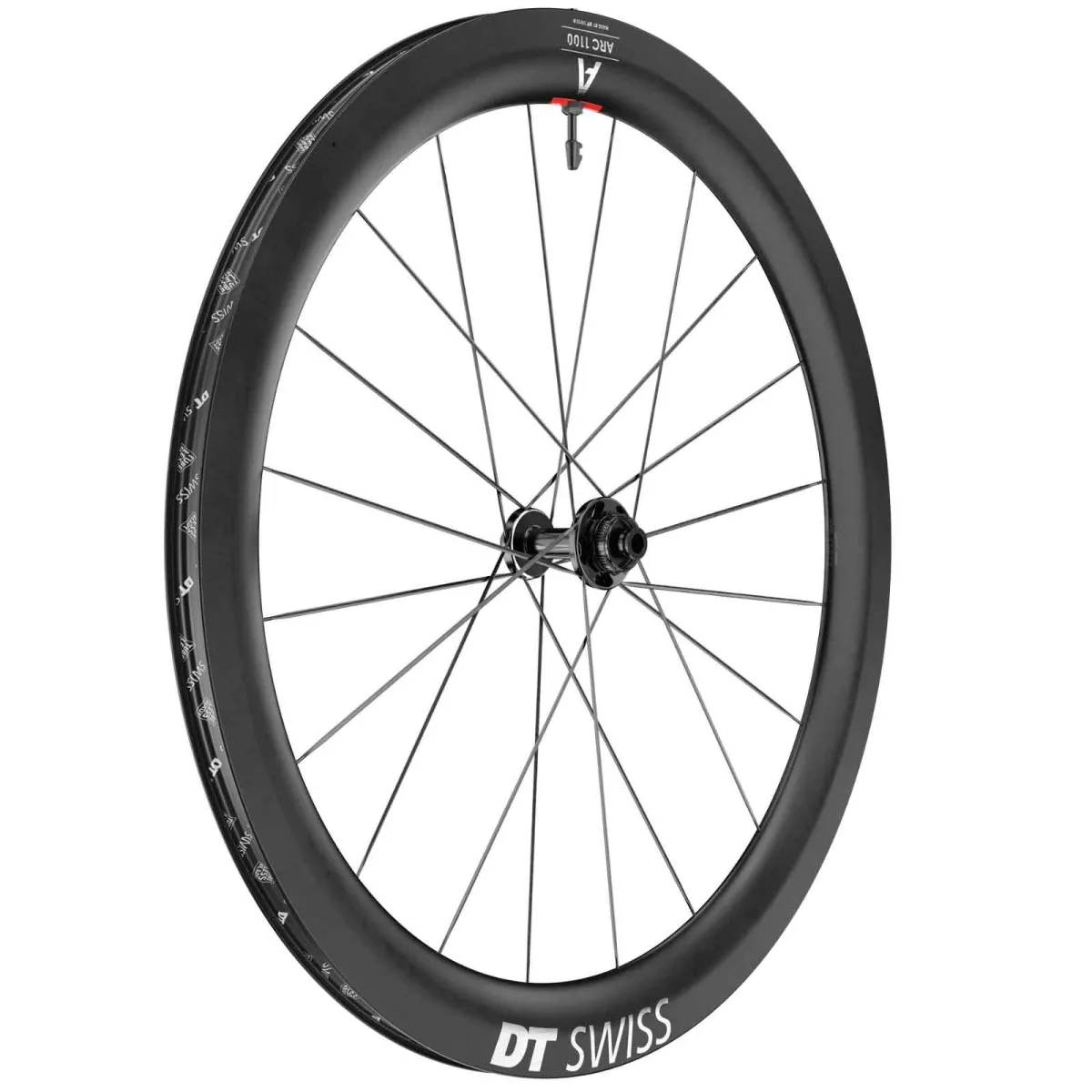

• DT Swiss ARC 1100 Dicut 55 Disc front wheel, tubeless rim tape, tubeless valve

DT Swiss ARC 1100 Dicut 55 Disc wheel technology and dimensions:

• 28 / 29 inches, 700C, ETERO 22x622 rims
• Full carbon rims for folding and clincher tyres, tubeless ready
• Rim type: Hooked / Crotchet tubeless TC
• Rim dimensions 622x22, outer width 28 mm, height 50 mm
• High-end hubs based on 180 mm with sprockets and ceramic ball bearings
• Disc Centerlock brake disc mount, Centerlock adapters are available as an option
• Cold-forged DT Swiss Aerocomp spokes
• Pro Lock hidden special nipples
• Spoke pattern: Front wheel 20 spokes, 2-cross lacing; Rear wheel 24 spokes, 2-cross lacing
• Aero front hub Dicut 180, optionally with 12x100mm thru-axles and 9x100mm quick-release hub end caps
• Weight: Front wheel 686 grams, manufacturer’s specification
• Maximum recommended rider weight 110 kg
• ASTM classification 1
• Approved for e-bikes

ARC 1100 DICUT® DB

Take the lead in the overall standings: these wheels offer excellent aerodynamic performance and optimal handling characteristics. They are particularly lightweight and therefore ideal for challenging climbs. With the 3rd generation of wheels, we have reached a new pinnacle in our development. Wider tyres offer better grip and greater riding comfort. To enable the use of such tyres, the rim shape has been adapted accordingly and continues to provide advantages in competition. The third generation is characterised by a larger inner rim width and a unique V-shape, without compromising on aerodynamics. Wider, taller and lighter: experience a thrilling ride with these wheels that will lead you to your personal victory. Victory isn’t handed to you on a plate. You have to earn it.

Countless tests were necessary for the successful development of wider, taller and lighter wheelsets. For the development of the latest ARC wheelsets, DT Swiss drew on the knowledge gained from previous wheel generations as well as the experience of numerous top athletes across various cycling disciplines.

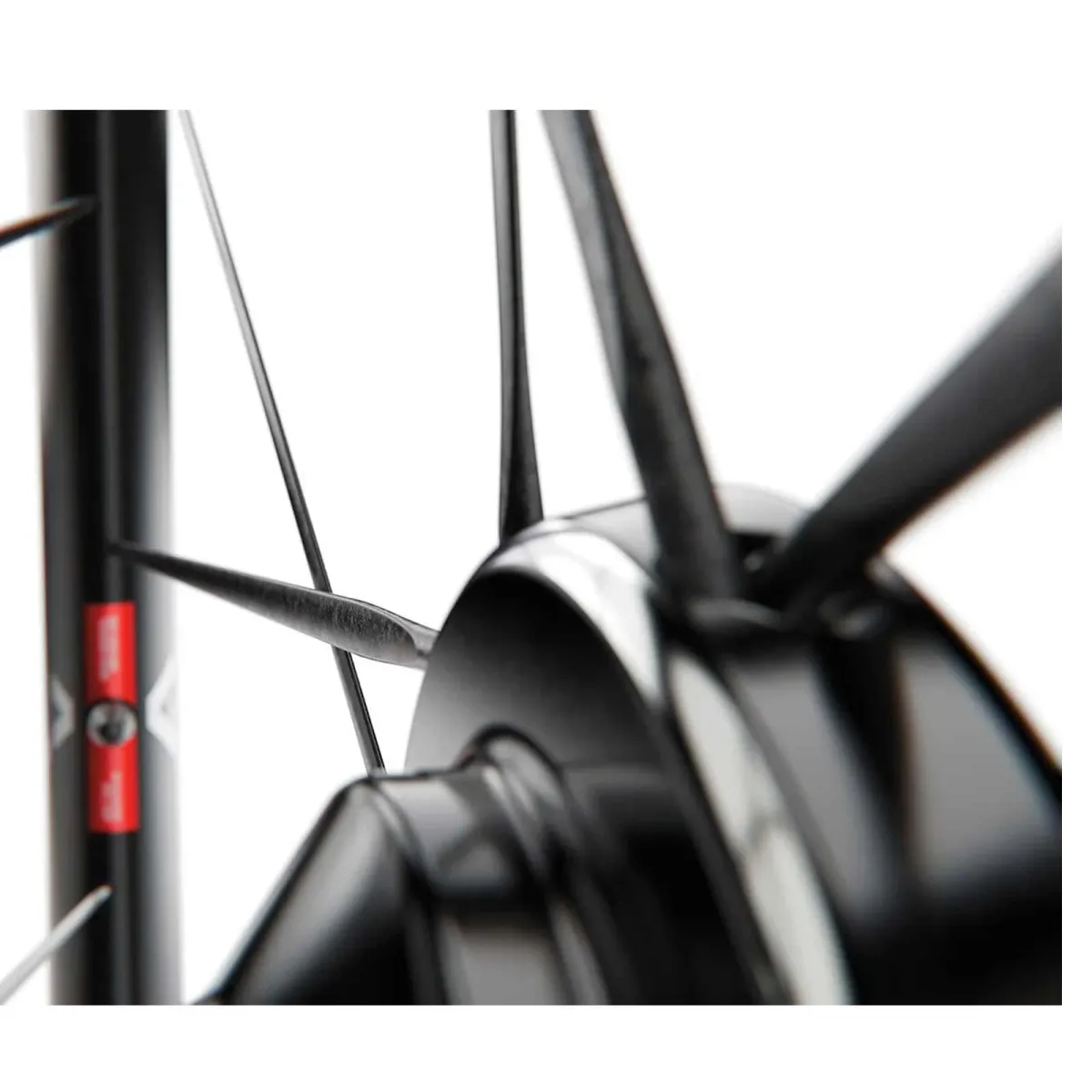

DT Swiss ARC 1100 Dicut hubs:

The ARC Dicut hubs are perfectly matched to the Nail Head spoke system and offer the best aerodynamics of any DT Swiss hub. Equipped with high-end Sinc Ceramic ball bearings and a wider flange spacing for optimum lateral stiffness at a low weight. The ratchet body with EXP Ratchet Star pawl is virtually maintenance-free and easy to convert.

DT Swiss Ratchet EXP Freehub:

The proven DT Swiss Ratchet system in the new EXP version, featuring the ratchet body, allows for easy conversion to various axle or rotor standards. The integration of the ratchet disc and threaded ring reduces the number of components, thereby lowering the weight. A single coil spring ensures faster, complete engagement and thus greater reliability.

The DT Swiss Ratchet EXP rear hubs can be easily converted to standard mountings, 10x135mm quick-release and 12x142mm thru-axle mountings. The new end caps with an even more precise fit ensure even greater durability. The rear hubs can be converted to Campagnolo ED, Shimano HG, Microspline and Sram XDR, XD freehub bodies without the need for tools. The complete list of available freehub bodies and end stops can be found further down in the product description.

DT Swiss ARC 1100 Dicut rims:

In professional cycling, there has been a trend towards wider tyres in recent years. This requires rims with a larger inner rim width. The 22 mm rim width is optimised for use with the AERO 111 tyre in a 29 mm width. However, a wider tyre must not come at the expense of aerodynamic performance.A larger rim width has a direct effect on the wheel’s frontal area. The V-shaped rim compensates for this and optimises aerodynamic drag. Wind tunnel tests show that this shape minimises aerodynamic drag. At the same time, the steering torque – the force acting on the steering under crosswinds – remains low. This can have a positive impact on handling characteristics. Whatever your riding preferences: the three rim heights offer a wide range of applications. Do you enjoy riding at high speeds over varied terrain and don’t want to worry about the occasional steep climb? Then the 55 mm rim height is ideal for you. With a rim height of 65 mm, the aero-optimised profile gives you the edge in sprints and also benefits you on predominantly flat terrain. The 85 mm high rims are our fastest wheels. They offer the lowest aerodynamic drag and are ideal for triathlons and time trials.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This helps secure the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

DT Swiss ARC 1100 Dicut spokes:

Using an internally developed measuring device, we determined the influence of a lower number of spokes on rotational air resistance. Rotational air resistance can be described as the additional friction that arises when the wheel, with its rotating components, ‘cuts through’ the air. The measurements were carried out at relative approach angles of 0° (head-on, direct airflow) and 10° (crosswind) at 45 km/h. The result is a reduction in aerodynamic drag of 0.2 watts (5.5%) at 0° yaw and 0.5 watts (12%) at 10° yaw (measurement accuracy: < 0.1 watts). The significantly improved figures for the new ARC 1100 DICUT 55 wheelsets can be attributed to the lower number of spokes and the shorter spokes resulting from the 5 mm higher rim profile.

Lacing with the Nail Head System and straight-pull spokes ensures that the spokes cannot twist under load, meaning the spokes are always at the most aerodynamically favourable angle. The DT Swiss Aerocomp spokes, in combination with the internal Prolock Hidden spoke nipples, ensure outstanding aerodynamics.

Compatible endstops for DT Swiss Disc Road rear wheels:

• HG11 freehub, 10x135 mm quick-release mount, item no.: HWGXXX00S7446S
• Microspline Road, 10x135 mm quick-release freehub, Part No: HWGXXX00S5623S
• Sram XDR freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2760S
• SRAM XD freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2790S
• Campa ED freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2766S
• Campa N3W freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S3191S
• HG11 Freehub Thru-Axle Mounting 12x142 mm, Item No: HWGXXX00S2770S
• Microspline Road, freehub 12x142 mm quick-release mount, item no.: HWGXXX00S5624S
• Sram XDR freehub thru-axle mount 12x142 mm, Item No: HWGXXX00S2771S
• SRAM XD freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S3188S
• Campa ED freehub thru-axle assembly 12x142 mm, Item No: HWYABX00S7154S
• Campa N3W freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S5641S

DT Swiss EXP Road Freehub Body

• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop, 12x142mm thru-axle mount, Item No: HWYCBL00S5380S
• DT Swiss EXP Ceramic Bearing Rotor HG11 with End Stop 10x135mm Quick-release Mounting, Item No: HWYCBL00S5400S
• DT Swiss EXP Rotor HG11 with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S5378S
• DT Swiss EXP Rotor HG11 with end stop, 10x135mm quick-release mount, Item No: HWYABL00S5399S
• DT Swiss EXP Ceramic Bearing Rotor Micro Spline Road with end stop, 12x142mm thru-axle mount, Item No.: HWYCBL00S1959S
• DT Swiss EXP Rotor Micro Spline Road with end stop, 12x142mm thru-axle mount, Item No.: HWYABL00S1960S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo N3W with End Stop 12x142mm Thru-Axle Mounting, Item No: HWYABL00S5705S
• DT Swiss EXP Rotor Campagnolo N3W with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S2993S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop, 12x142mm thru-axle mount, Item No: HWYCBL00S7075S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 10x135mm quick-release mounting, Item No: HWYCBL00S7068S
• DT Swiss EXP Rotor Campagnolo ED with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S7074S
• DT Swiss EXP Rotor Campagnolo ED with end stop, 10x135mm quick-release mount, Item No: HWYABL00S7073S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 12x142mm thru-axle mount, Item No: HWYCBL00S5383S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop, 10x135mm quick-release mount, Item No: HWYCBL00S5402S
• DT Swiss EXP Rotor Sram XDR with end stop 12x142mm thru-axle mount, Item No: HWYABL00S5401S
• DT Swiss EXP Rotor Sram XDR with end stop, 10x135mm quick-release mount, Item No: HWYABL00S5382S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
