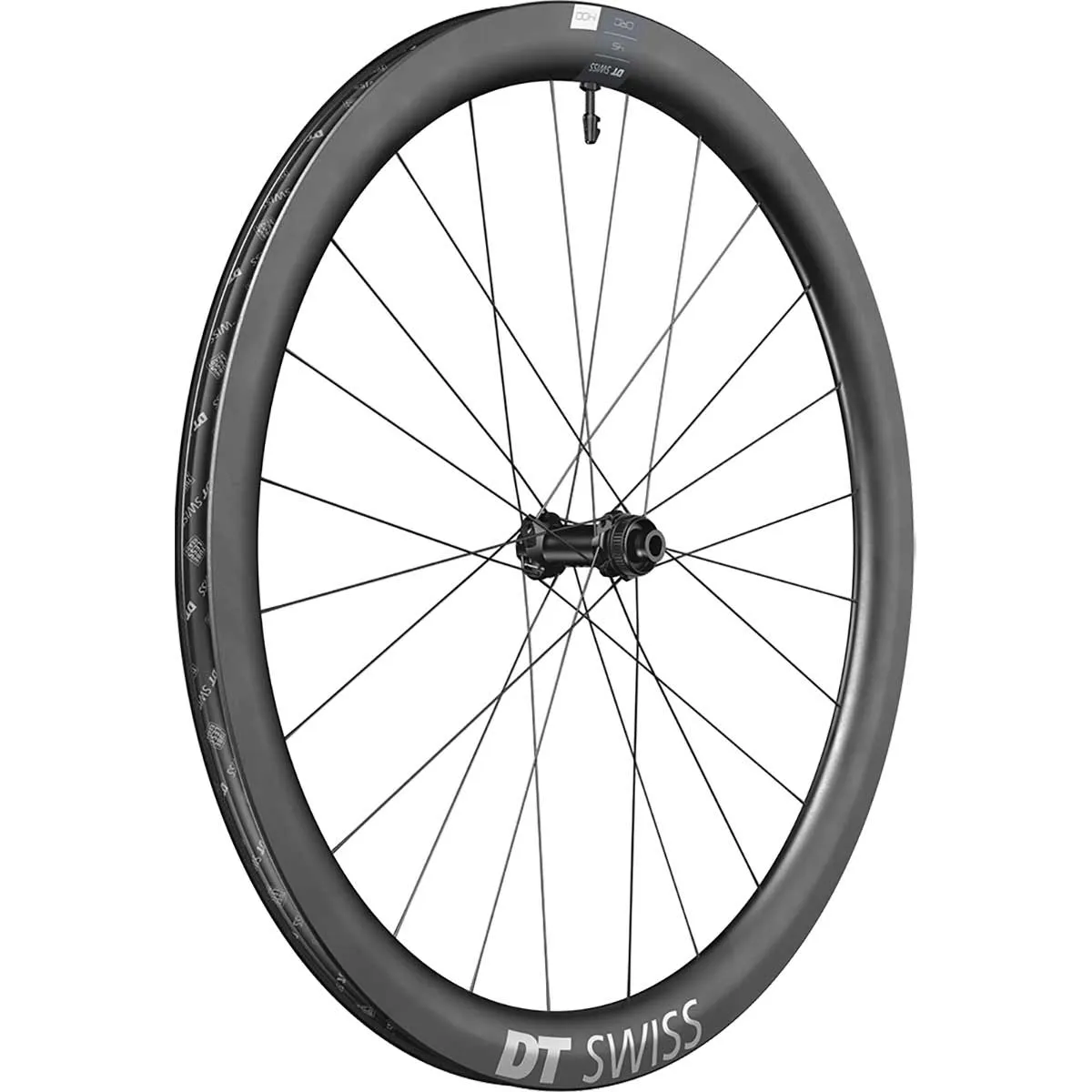

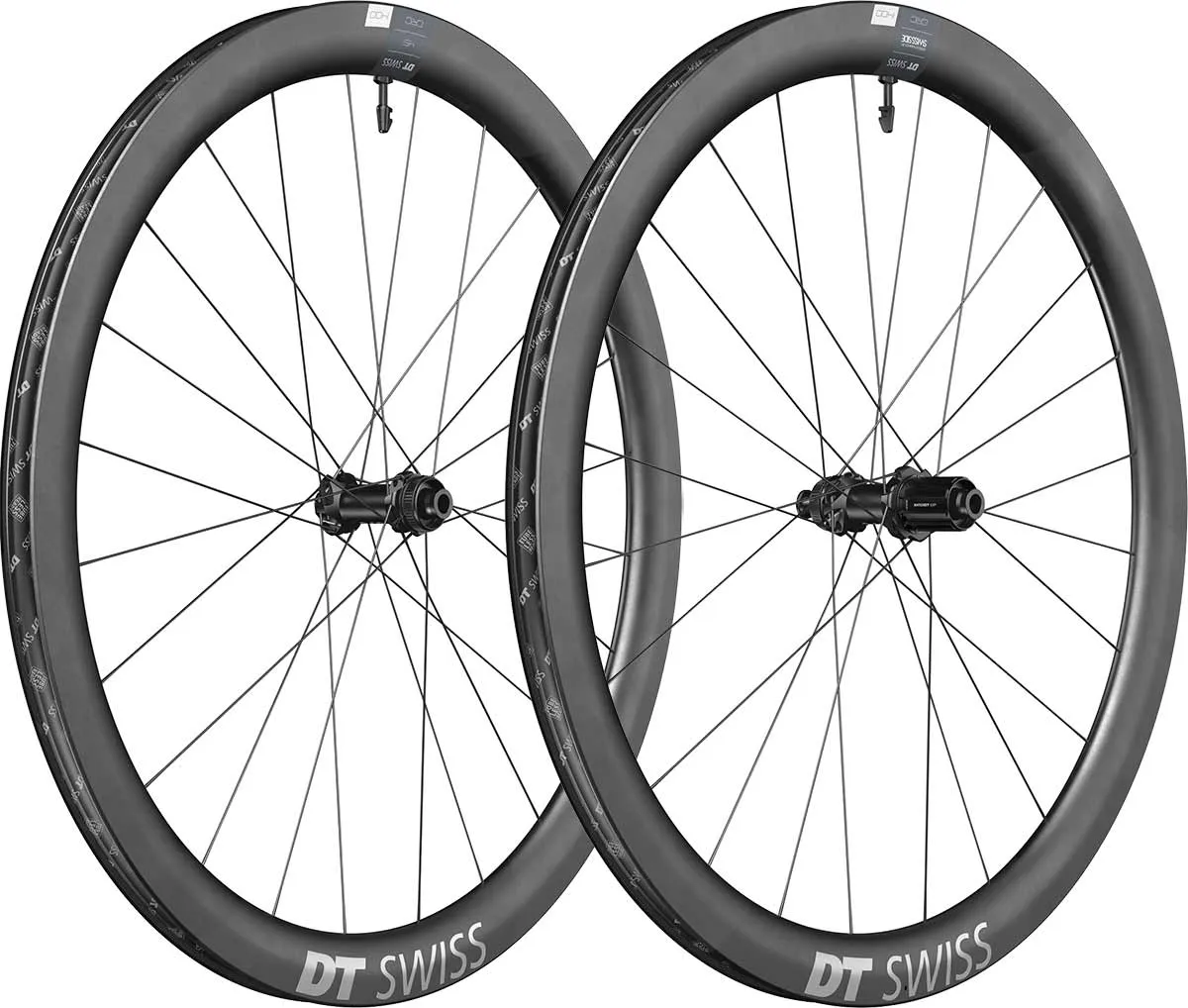

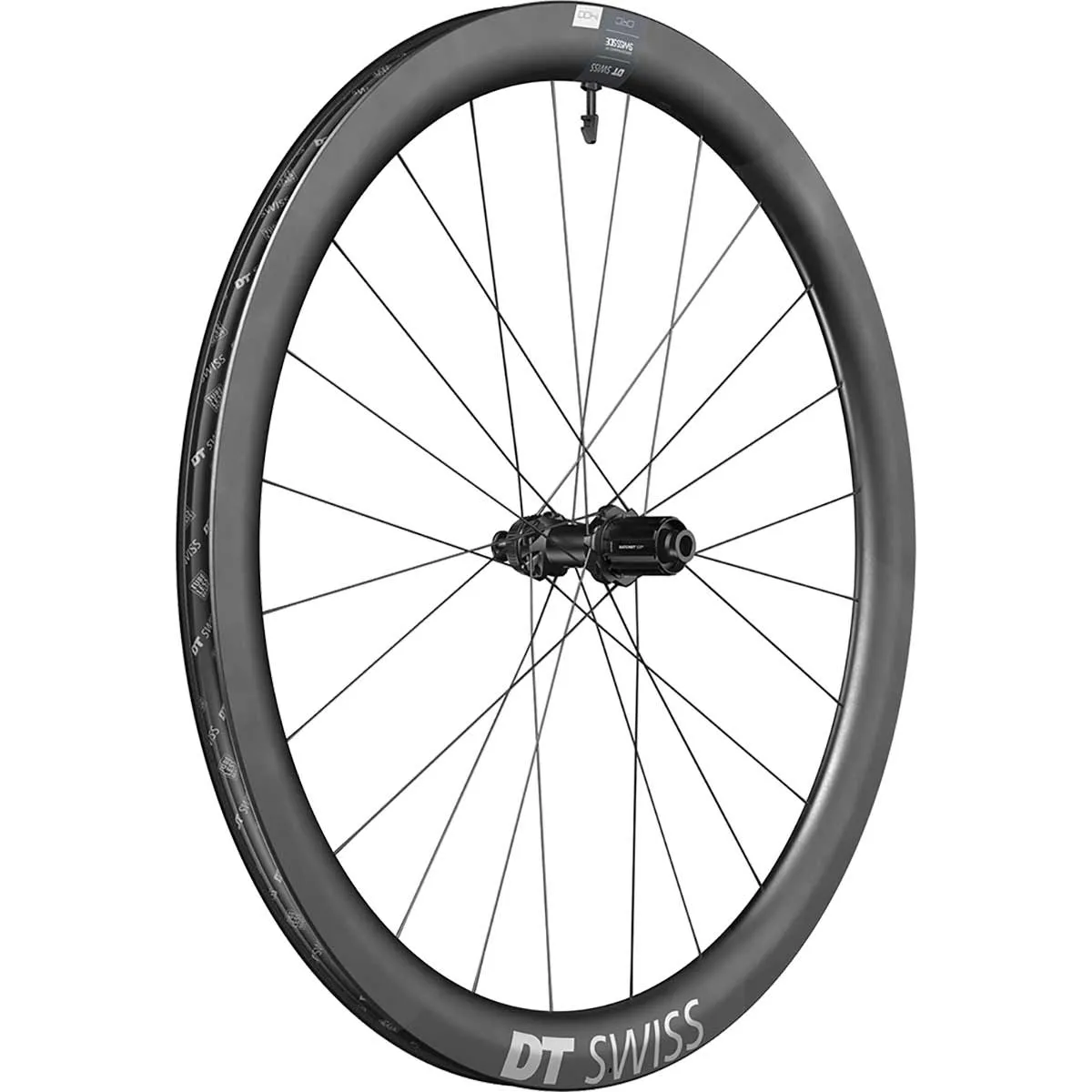

DT Swiss CRC 1400 Spline 45 Disc Carbon wheelset

The gravel and cross wheelset with 45 mm high Aero+ carbon rims and a 22 mm rim width.

Wind, mud or rain: the CRC 1400 Spline wheels are ready for all conditions. The aerodynamically optimised rim provides support at high speeds on descents as well as in the final sprint, no matter how strong the wind blows.

The CRC wheels from DT Swiss, built for cyclocross and gravel use, are exceptionally sturdy. Equipped with the new EXP hubs from the 240 series and a new aerodynamic rim profile, the lightweight 1466-gramme full-carbon disc Cross Road wheelset DT Swiss Spline CRC 1400 Spline 45 features a 22 mm rim width for tyres ranging from 28–47 mm in width. The completely newly developed CRC 1400 wheelset series offers minimal weight, outstanding aerodynamics and very high lateral stiffness. The CRC 1400 Spline carbon disc wheels feature a 45 mm high-end full-carbon rim from DT Swiss for folding and clincher tyres, with straight spoke lacing and the proven, lightweight Ratchet EXP rear hub technology.

DT Swiss CRC 1400 Spline 45 C Disc Wheel Technology:

• For folding and clincher tyres, tubeless-ready
• Rims: unidirectional carbon ERTRO 622 x 22
• Rim type: Crotchet tubeless TC
• Rim width: 28.5 mm (external), 22 mm (internal)
• Rim height: 45 mm
• Top-end 240 EXP hub with stainless steel ball bearings and EXP ratchet freewheel
• Spokes: butted, cold-forged Aerolite and Arö Comp flat spokes
• Nipples: DT Swiss Prolock hexagonal special nipples
• Lacing: 2-cross
• Recommended tyre width 28–47 mm
• Front hub optionally available with end stops for 12x100mm thru-axles or 9x100mm quick-release mounting
• Rear hub optionally with end stops for 12x142mm thru-axles or 10x135mm quick-release mounting
• Ratchet EXP aluminium freehub body, available as:
  • HG11 freehub body compatible with Shimano and SRAM road cassettes (8, 9, 10 and 11-speed), including Shimano 12-speed road
  • Campa ED freehub body compatible with Campagnolo 9-, 10-, 11- and 12-speed cassettes
  • Campa N3W freehub body compatible with Campagnolo 13-speed cassettes
  • SRAM XDR freehub body compatible with SRAM AXS road cassettes (12-speed)
• Weight approx. set 1466 grams, front wheel: 673 grams, rear wheel: 793 grams, manufacturer’s specification
• ASTM classification 2
• Manufacturer’s recommended maximum system weight: 120 kg

Scope of delivery DT CRC 1400 Spline 45 carbon wheelset:

DT Swiss CRC 1400 Spline 45 front wheel, end caps as selected, DT Swiss 25 mm tubeless rim tape, DT Swiss tubeless valve
DT Swiss CRC 1400 Spline 45 rear wheel, freehub body and end caps as selected, DT Swiss 25 mm tubeless rim tape, DT Swiss tubeless valve

DT Swiss Straight Pull Spokes

To achieve an ideal balance between weight and stability, SPLINE wheelsets use Aero Lite and Arö Comp straight-pull spokes. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools.

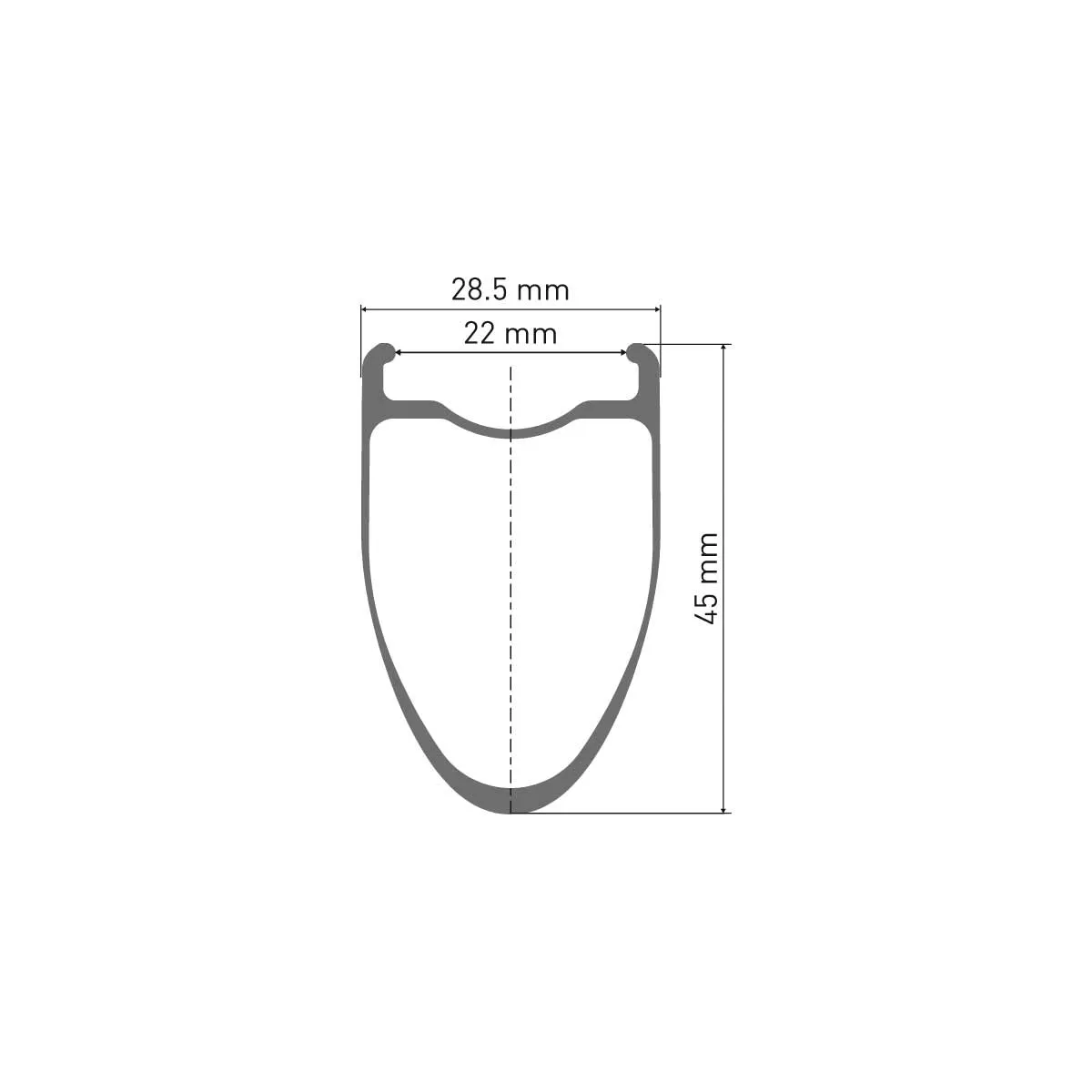

DT Swiss CRC 1400 Spline 45 Disc rims

Developed for maximum performance and aerodynamics. The 45 mm high Aro+ rims with a 22 mm rim width are built for tough cyclocross and gravel use, and the Aero+ design offers excellent acceleration and off-road handling. In the CRC 1400 Spline, the rims are laminated from carbon fibres using a new resin. The NCAC profile, derived from aircraft construction, offers optimum aerodynamics. The 1466-gram lightweight wheelset, suitable for both folding and clincher tyres, is completed by straight knife spokes with hidden spoke nipples. The DT Swiss CRC 1400 Spline Clincher wheels: the ultimate choice for competitive use

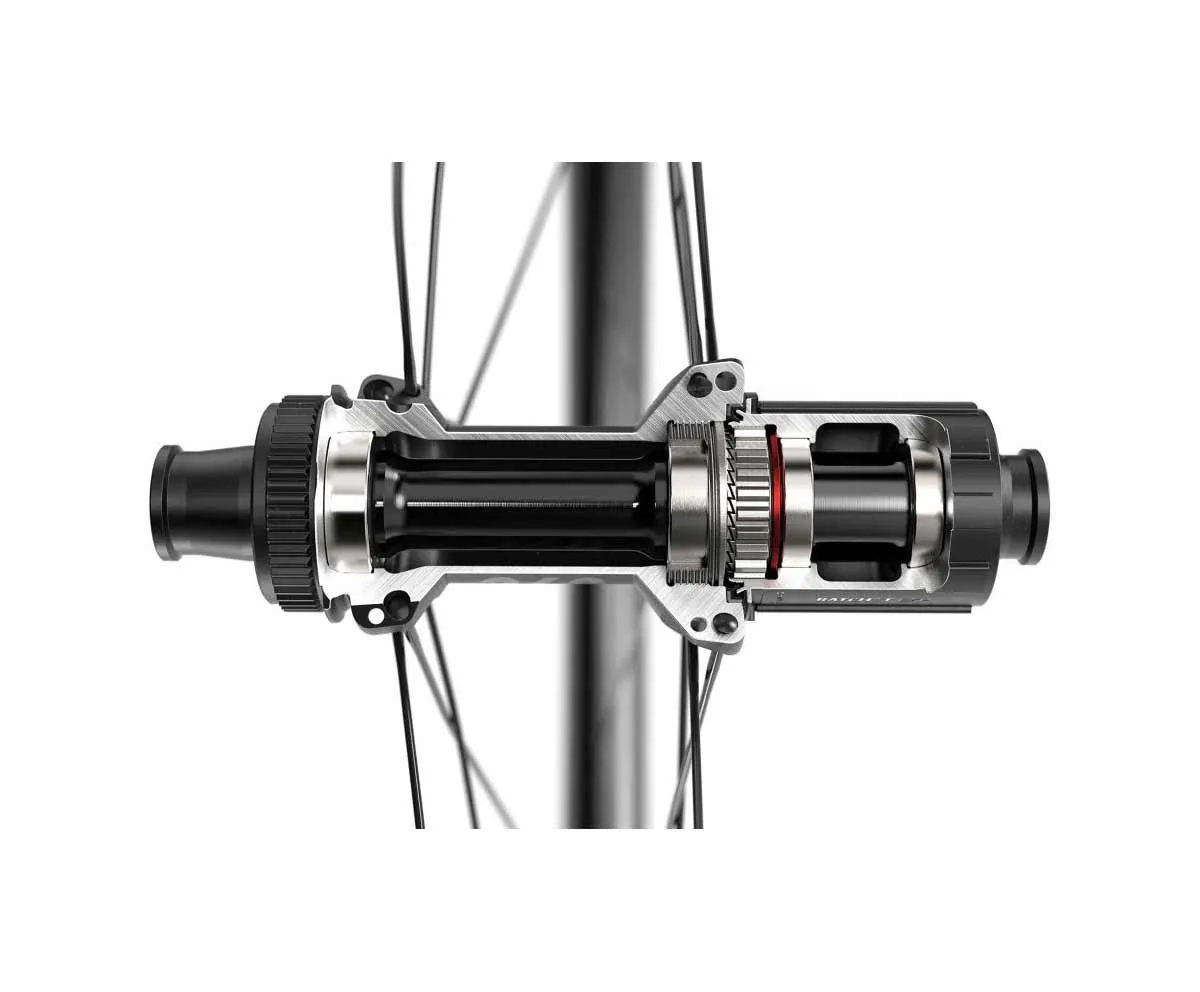

DT Swiss Spline 240 EXP Disc Hubs

The DT Swiss Spline hubs are based on the high-end 240 EXP hub series; with an optimised hub shell and wider hub flanges, they offer greater lateral stiffness. Designed for straight-pull spokes and the Ratchet EXP freehub system, based on the DT Swiss high-end hubs with Swiss industrial stainless steel bearings, they are exceptionally durable and can be serviced and converted to Shimano, Sram, Campagnolo and Sram XD freehub bodies without tools.

DT Swiss EXP front wheel disc end stops:

• 9x100 mm quick-release mount: Item No. HWGXXX00S8852S
• 12x100 mm thru-axle mount: Item No: HWGXXX00S7564S

DT Swiss EXP Road rear wheel disc endstops:

• 10x135 mm quick-release mounting HG11 freehub Part No. HWGXXX00S7446S
• 10x135 mm quick-release mounting Campa ED freehub Part No. HWGXXX00S2766S
• 10x135 mm quick-release mount Sram XDR freehub, Part No. HWGXXX00S2760S
• 12x142 mm thru-axle mount for HG11 freehub, Item No: HWGXXX00S2770S
• 12x142 mm thru-axle mountfor Campa ED freehub, Item No.HWGXXX0004617S
• 12x142 mm thru-axle mountfor SRAM XDR freehub, Item No.HWGXXX00S2771S

DT Swiss EXP Road freehub body

• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop, 12x142 mm thru-axle mount, Item No. HWYCBL00S5380S
• DT Swiss EXP Ceramic Bearing Rotor HG11 with End Stop 10x135mm Quick-release Mounting, Item No. HWYCBL00S5400S
• DT Swiss EXP Rotor HG11 with end stop 12x142mm thru-axle Mounting Type No. HWYABL00S5378S
• DT Swiss EXP Rotor HG11 with end stop 10x135mm quick-release Mounting type No. HWYABL00S5399S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 12x142mm thru-axle Mounting Type No. HWYCBL00S7075S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 10x135mm quick-release Mounting type No. HWYCBL00S7068S
• DT Swiss EXP Rotor Campagnolo ED with end stop 12x142mm thru-axle Mounting type No. HWYABL00S7074S
• DT Swiss EXP Rotor Campagnolo ED with end stop 10x135mm quick-release Mounting type No. HWYABL00S7073S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo N3W with end stop 12x142mm thru-axle Mounting Type No. HWYABL00S5705S
• DT Swiss EXP Rotor Campagnolo N3W with end stop 12x142mm thru-axle Mounting Type No. HWYABL00S2993S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with End Stop 12x142mm Thru-Axle Mounting Type No. HWYCBL00S5383S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S5402S
• DT Swiss EXP Rotor Sram XDR with end stop 12x142mm thru-axle Mounting Type No. HWYABL00S5401S
• DT Swiss EXP Rotor Sram XDR with end stop 10x135mm quick-release Mounting type No. HWYABL00S5382S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
