Cane Creek Forty Headset

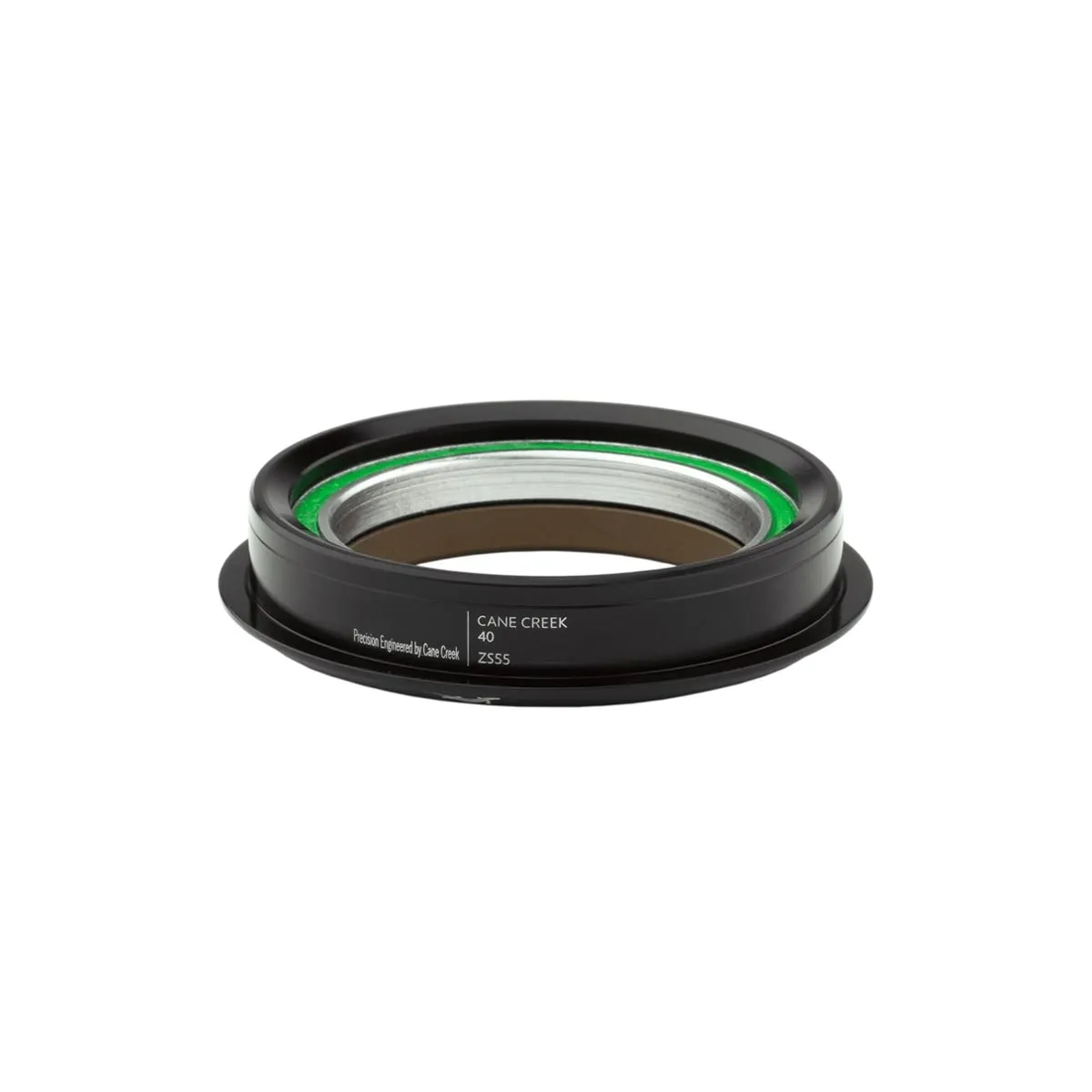

The Cane Creek Forty ZS55 bottom bracket for frames with a 55 mm installation dimension at the head tube and forks with a 1.5-inch / 40 mm steerer tube diameter at the bottom.

Cane Creek Forty headset specifications:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge / angular contact ball bearings, zinc-plated, multi-sealed
• Height: 4 mm
• Weight: 65 grams (manufacturer’s specification)
• Contents: Cane Creek headset

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it includes all the features that characterise a reliable headset. Available in various heights, as top or bottom cups for any frame and fork steerer – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Fitted with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

ZS55/40 bottom thread:

The ZS headset is pressed into the head tube from below; the press-fit dimension in the frame is 55 mm and the fork steerer tube diameter is 1.5 inches at the bottom. The headset cone requires a 40 mm seat on the fork.

ZS/Zero Stack – semi-integrated headset:

Headset sets designated ZS / Zero Stack are also referred to as semi-integrated headsets. They require a frame designed for this purpose with an exact match for the bearing cups. Zero Stack refers to the minimal protrusion of the bearing cups from the head tube, whilst ZS44, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups within the frame. The headsets can usually be fitted without special tools; the frame simply needs to be cleanly pre-milled.

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
