Spare part for Mavic Instant Drive 360 QRM+ and QRM Auto

The seal for the Mavic Instant Drive freehub body

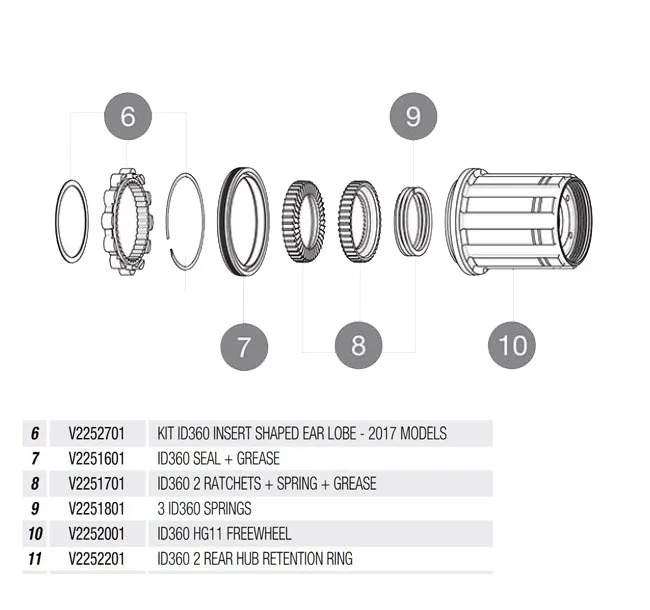

Scope of delivery No. 7 in the illustration

Available Mavic Instant Drive 360 rear hub spare parts

• No. 5: V2560101 ID360 BEARINGS SMALL
• No. 6: V2252701 KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601 ID360 SEAL + GREASE
• No. 8: V2251701 ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201 ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501 3 ID360 WAVE WASHERS
• No. 13: V2251201 ID360 AXLE UB
• No. 14: V2250901 ID360 HUB BOLT UB SMALL
• No. 15: B4989401 Rear axle adapters 9mm QR

Available Mavic Instant Drive 360 rear disc hub spare parts:

• No. 5: V2560201, ID360 BEARINGS BIG
• No. 6: V2252701, KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601, ID360 SEAL + GREASE
• No. 8: V2251701, ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801, 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201, ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501, 3 ID360 WAVE WASHERS
• No. 13: V2251401, ID360 AXLE DISC CL
• No. 14: V2251101, ID360 HUB BOLT DISC CL
• No. 15: B4989801, Rear axle adapters 9mm/135 QR, centre lock
• No. 17: V2251301, ID360 AXLE DISC 6T
• No. 18: B4989401, Rear axle adapters 9mm QR
• No. 18: B4989801, Rear axle adapters 9mm QR CL
• No. 18: B4989601, Rear axle adapters 12/142
• No. 18: B4989901, Rear axle adapters 12/142 CL
• No. 19: V2251001, ID360 HUB BOLT UB+DISC 6T BIG

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
