Spare parts for Mavic Instant Drive 360 QRM+ and QRM Auto

Spring for Mavic Instant Drive freehub body

Compatible with QRM+ and QRM Auto Instant Drive rear hubs

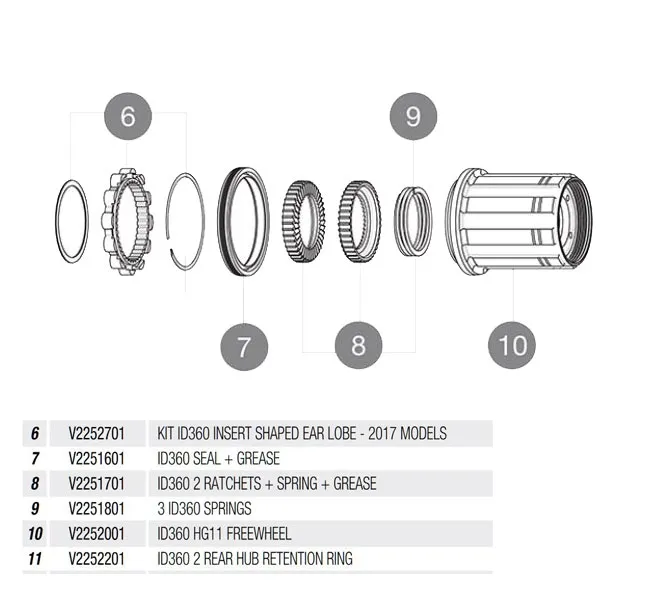

Contents of package No. 9 in the illustration

Mavic Instant Drive 360 QRM Plus and Auto rear disc hub spare parts:

• Item No: V2560201, ID360 hub bearing, dimensions 17x28x7mm and 15x28x7mm
• Item No: V2540410, ID360 ceramic hub bearings, dimensions 17x28x7mm and 15x28x7mm
• Item No: V2251701, ID360 toothed discs (2 pieces) with spring and pad for noise reduction
• Item No: V2251801, ID360 toothed discs spring
• Item No: V2252601, Freehub body seal
• Item No: V2252001, ID360 toothed discs, freehub body HG11
• Item No: V2252101, ID360 sprockets freehub body ED11
• Part No: V2580101, ID360 toothed disc freewheel body Sram XD
• Part No: V2252201, Spacer ring for 9- and 10-speed cassettes
• Item No: V2251501, Sprocket for axle
• Item No: V2251401, ID360 rear axle with splined disc hub, Centerlock
• Item No: V2251301, ID360 rear axle with splined disc 6-bolt
• Item No: V2251101, Left bearing cap for Centerlock hubs
• Item No: V2251001, Left bearing cap for Disc 6-hole hubs
• Item No: B4989801, End stops 10x135mm quick-release mounting, Disc Centerlock
• Item No: B4989901, End stops 12x142 mm thru-axle mount, Disc Centerlock
• Item No: B4989401, End stops 10x135mm quick-release mount, Disc 6-hole
• Item No: B4989601, End stops 12x142 mm thru-axle mount, Disc 6-hole
• Item No: B4989501, End stops 12x135 mm thru-axle fitting, Disc 6-hole and Centerlock

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
