Spare part: Mavic Instant Drive 360 freehub body

The new freehub bodies for Mavic road bike rear wheels with the Instant Drive 360 sprocket system. The XDR freehub bodies are 1.8 mm wider than the MTB XD freehub bodies and are compatible with the new Sram Red AXS 12-speed cassettes.

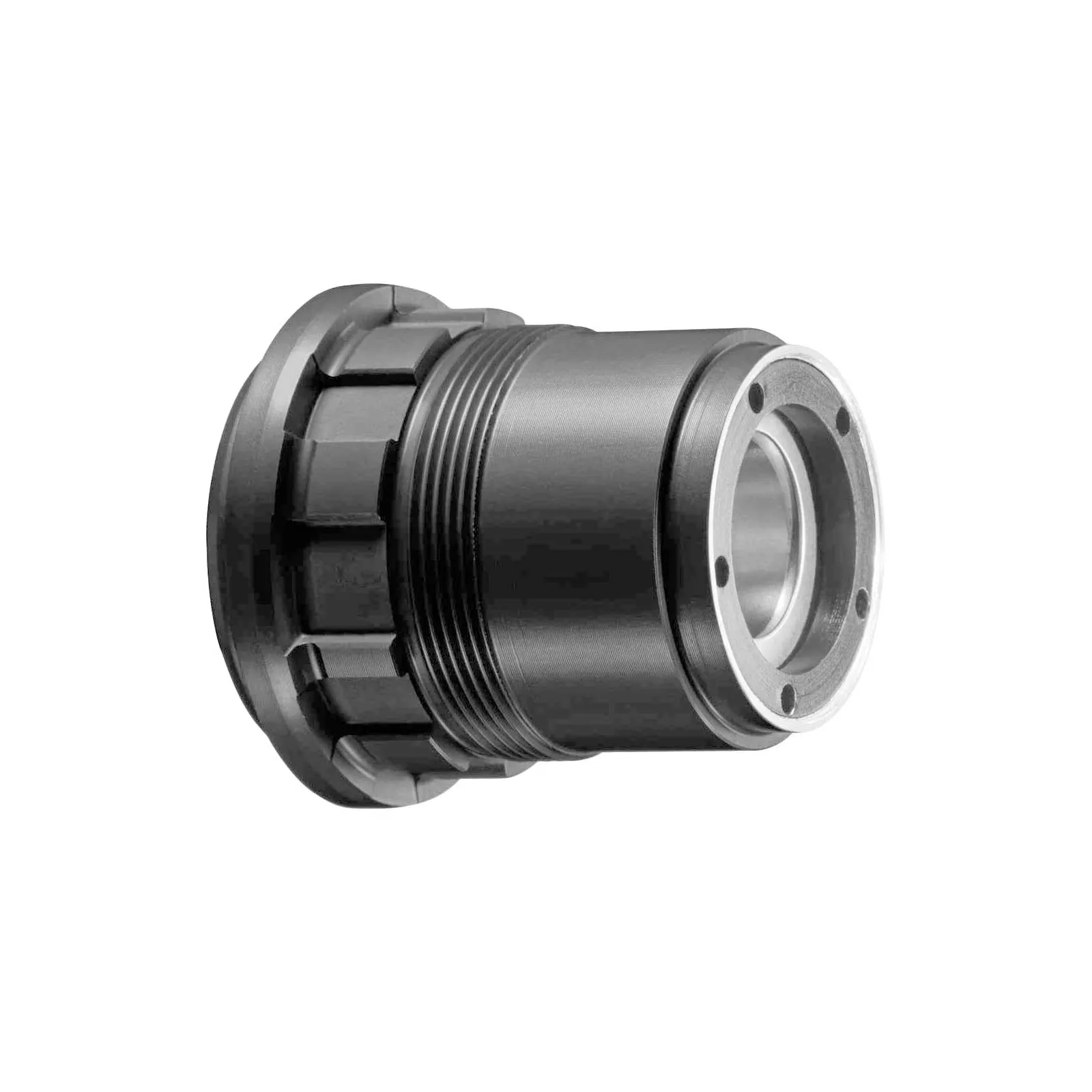

SRAM XDR freehub body for SRAM RED AXS 12-speed cassettes

The Instant Drive 360 freehub bodies for MTB, road bike and gravel cassettes are compatible with all Mavic Instant Drive 360 hubs. Whether road bike, mountain bike or gravel hub/wheel.
The hub end stops are the same for all freehub bodies.

If you have an HG / HG 11 freehub body fitted and wish to switch to a different system, you must remove the black plastic cap from the end stop on the freehub body side. This is simply pressed on and can be pulled off. Otherwise, the freehub body will not run freely.

Mavic Instant Drive 360 freehub body:

• Item No: V3780101, Aluminium HG10 freehub body
• Item No: V3790101, Steel freehub body HG10
• Item No: V3430101, Aluminium freehub body HG11
• Item No: V3850101, Aluminium freehub body HG11 Light
• Item No: V3740101, Aluminium Sram XD freehub body
• Item No: V2580101, Aluminium Sram XDR freehub body
• Item No: V3990101, Aluminium freehub body, Shimano 12-speed Micro Spline
• Item No: A00090231, Steel freehub body, Shimano 12-speed Micro Spline
• Item No: V3440101, Aluminium freehub body, Campagnolo ED 12-speed
• Item No: V2375201, Aluminium freehub body, Campagnolo N3W 13-speed

Available Mavic Instant Drive 360 rear hub spare parts

• No. 5: V2560101 ID360 BEARINGS SMALL
• No. 6: V2252701 KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601 ID360 SEAL + GREASE
• No. 8: V2251701 ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201 ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501 3 ID360 WAVE WASHERS
• No. 13: V2251201 ID360 AXLE UB
• No. 14: V2250901 ID360 HUB BOLT UB SMALL
• No. 15: B4989401 Rear axle adapters 9mm QR

Available Mavic Instant Drive 360 rear disc hub spare parts:

• No. 5: V2560201, ID360 BEARINGS BIG
• No. 6: V2252701, KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601, ID360 SEAL + GREASE
• No. 8: V2251701, ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801, 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201, ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501, 3 ID360 WAVE WASHERS
• No. 13: V2251401, ID360 AXLE DISC CL
• No. 14: V2251101, ID360 HUB BOLT DISC CL
• No. 15: B4989801, Rear axle adapters 9mm/135 QR, centre lock
• No. 17: V2251301, ID360 AXLE DISC 6T
• No. 18: B4989401, Rear axle adapters 9mm QR
• No. 18: B4989801, Rear axle adapters 9mm QR CL
• No. 18: B4989601, Rear axle adapters 12/142
• No. 18: B4989901, Rear axle adapters 12/142 CL
• No. 19: V2251001, ID360 HUB BOLT UB+DISC 6T BIG
