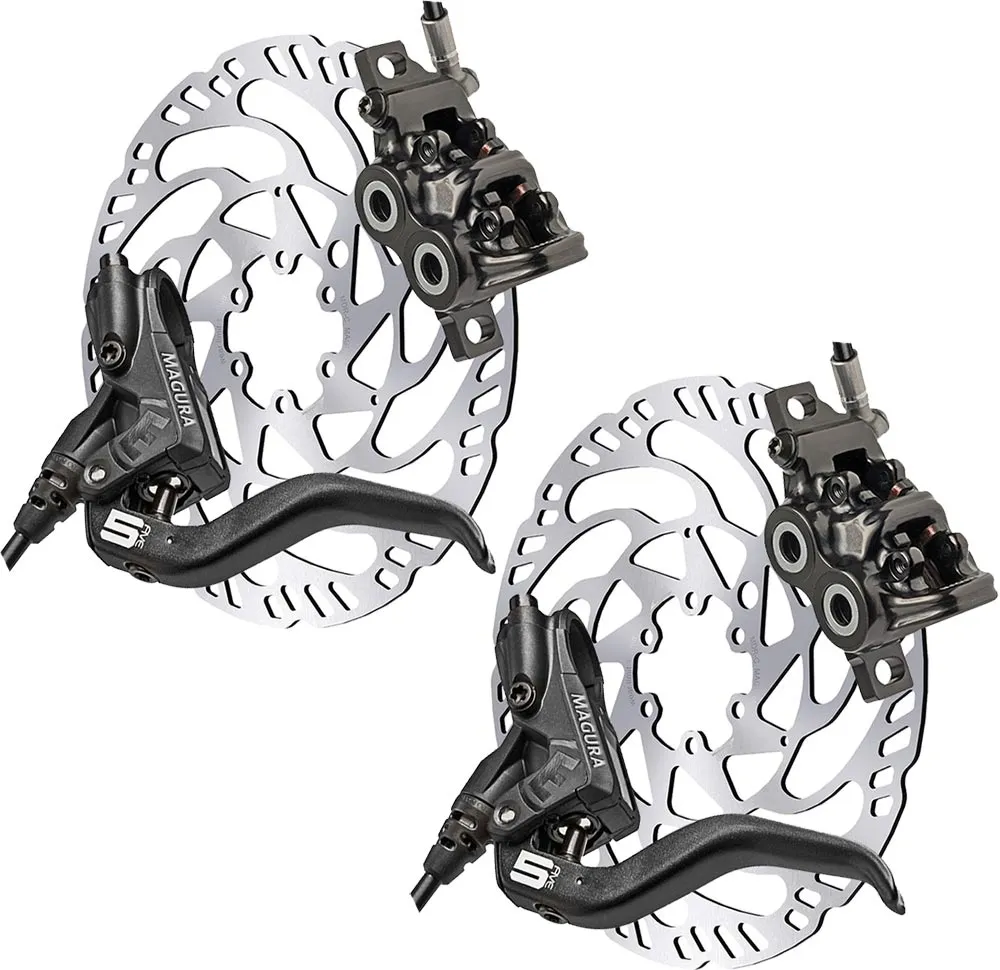

Magura MT5 disc brake set + MDR-C discs

The Magura MT 5 enduro and freeride disc brake with 4-piston caliper and Carbotecture brake lever housing, as a disc brake set with Magura MDR-C brake discs and optional adapters

Included in delivery:

• Magura MT 5 front brake, 2200 mm hose length, fully pre-assembled and bled, Magura MDR-C brake discs, 160–220 mm, optional adapters for disc size and mounting, Magura 9.P brake pads
• Magura MT 5 rear brake, 2200 mm hose length, fully pre-assembled and bled, Magura MDR-C Centerlock brake discs, 160–220 mm, optional adapters for disc size and mounting, Magura 9.P brake pads
• Screws and small parts required for assembly

Magura MT 5 disc brake technology and dimensions:

• Colour: Black carbon logo on lever and caliper
• Application: XC to DH
• Technology: Fully hydraulic high-pressure disc brake with integrated reservoir.
• Braking system: Four-piston brake caliper with automatic pad adjustment, brake disc runs free of friction.

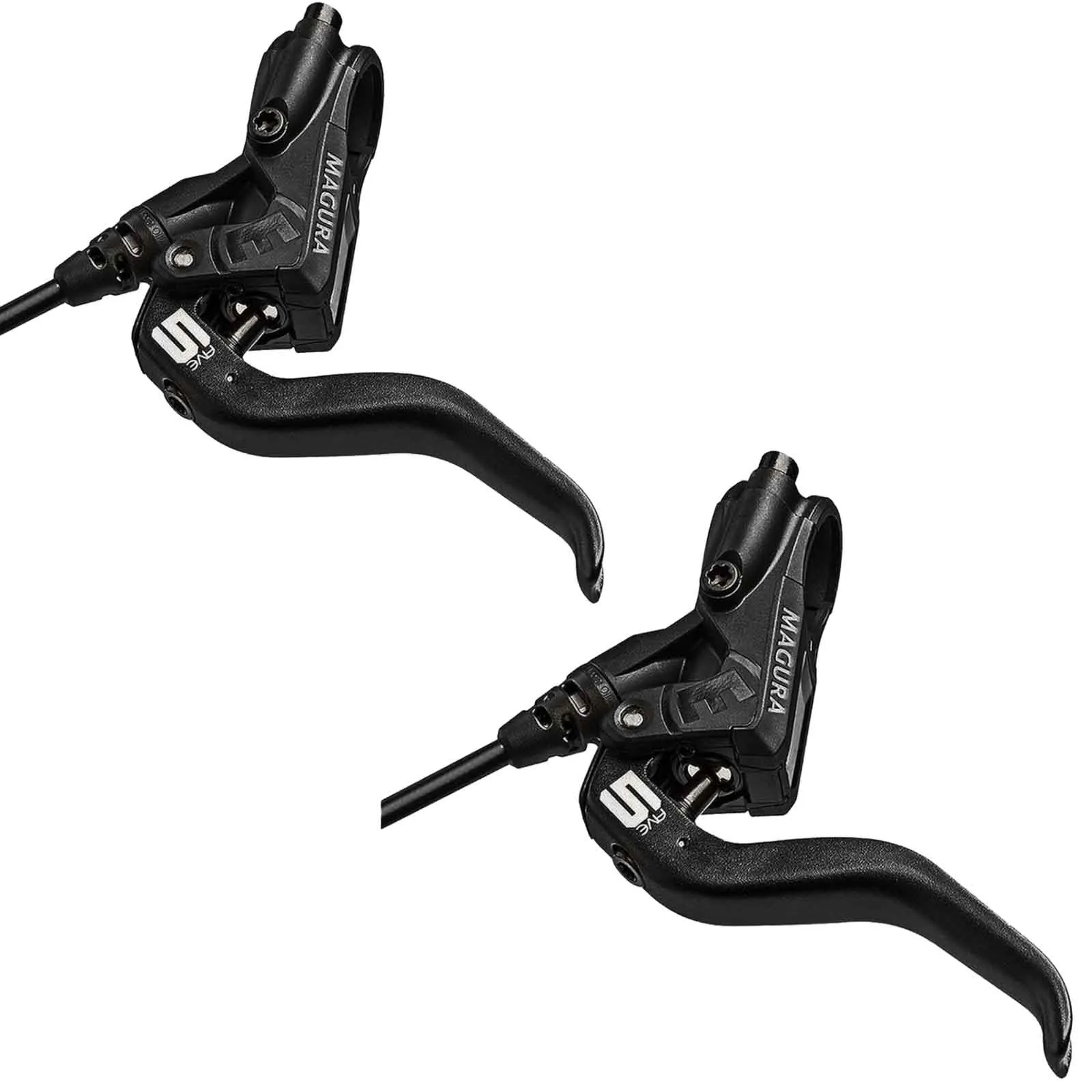

• Brake lever: Carbotecture lever, radial piston, aluminium 2-finger brake lever, lever reach adjustment.

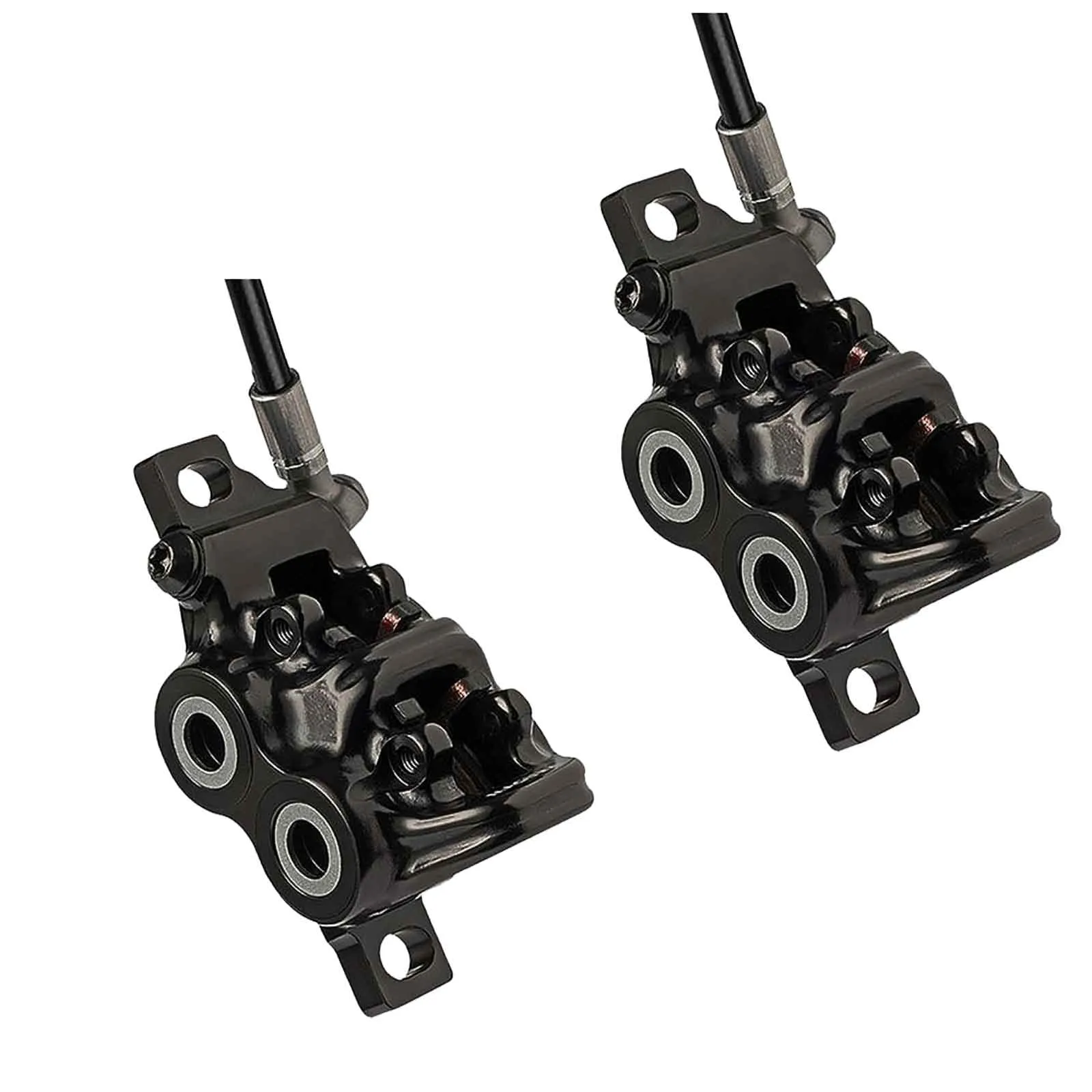

• Brake caliper: Post Mount 74/6
• Easybleed Technology for easy bleeding
• Hollow Pin Technology
• Brake hose 220 cm

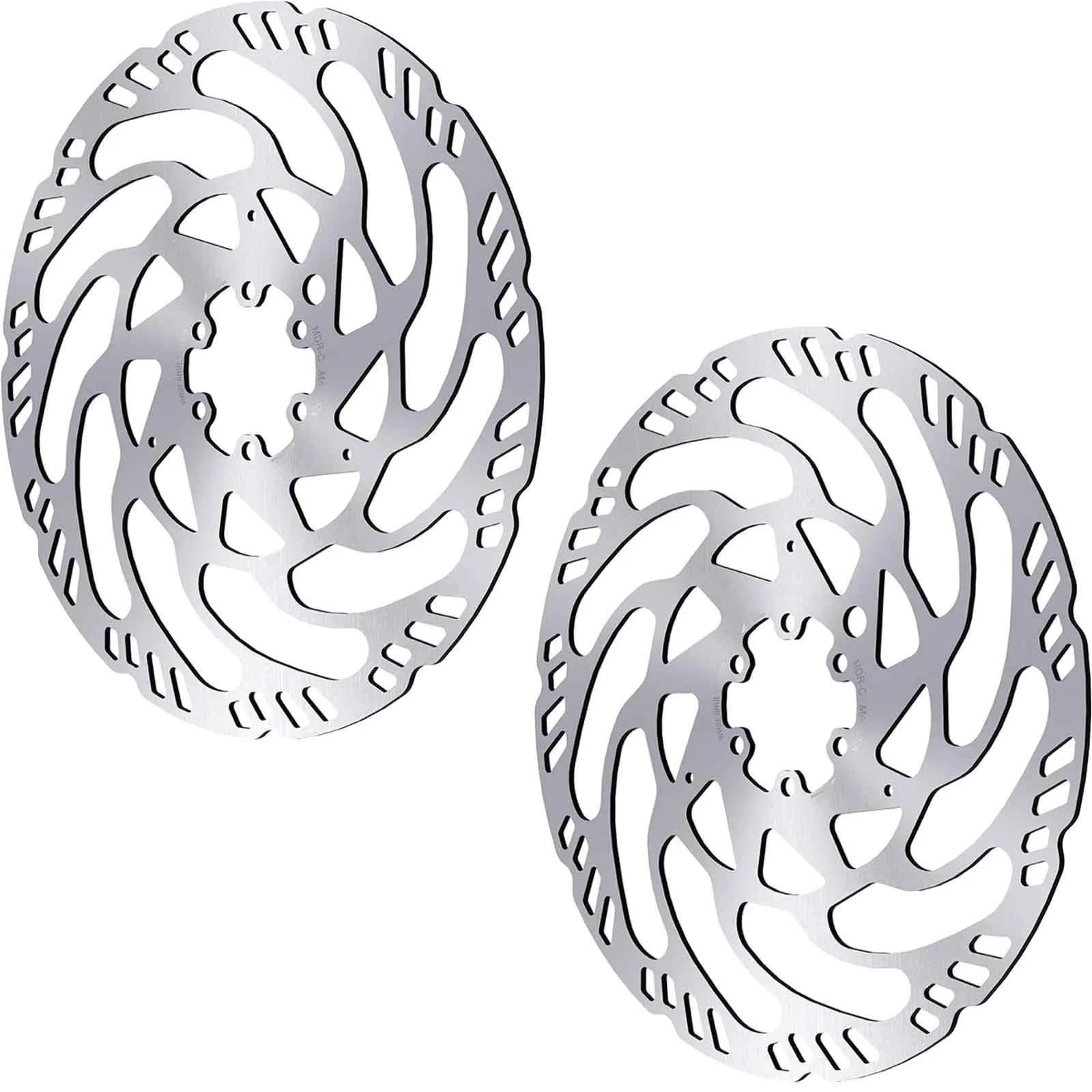

• Brake disc: Storm HC
• Piston diameter: Brake lever: 10.5 mm,
• Brake caliper: 4x22 mm Braking force: 6.2 m/s, DIN 79100
• Weight: 380 g, per unit incl. 160 mm Storm disc
• Oil: Magura Royal Blood, mineral oil
• 5-year warranty on the seal integrity of the brake lever and cylinder.

Contents of Magura MT 5 disc brake set:

Magura MT 5 front and rear brakes, each with 2200 mm hose length, fully pre-assembled and bled, Magura MDR-C 6-hole brake discs, size selectable, external lock rings, optional adapters for disc size and mounting, Magura brake pads, screws and small parts required for assembly.

The Magura MT 5 Disc is supplied with Post Mount 6 brake calipers.

You can select the appropriate adapter for your frame and brake disc size. Currently, almost all frames use the Post Mount standard.

IS 2000: Side mounting. An adapter is always required to fit the Magura MT5; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle frames

Post Mount, PM5: Direct mounting of the Magura MT5 with 140 mm brake discs without an adapter. Maximum 180 mm, minimum 140 mm disc size. Currently only found on rear triangle frames

Post Mount, PM6: Direct mounting of the Magura MT5 with 160 mm brake discs without an adapter. Maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Currently the most common standard on forks, and on some rear triangle frames.

Post Mount, PM7: Direct mounting of the Magura MT5 with 180mm brake discs without an adapter. Maximum 203mm, minimum 180mm disc size. 140mm and 160mm disc sizes are not possible. Found on some enduro suspension forks such as the Magura Thor and on some rear triangle frames such as the Liteville 301.

Post Mount, PM8: Direct mounting without an adapter for the Magura MT5 with 203mm brake discs. Can only be used with 203mm brake discs. Found only on downhill suspension forks and frames

Herstellerinformation: Magura, Stuttgarter Straße 48, 72574 Bad Urach, Germany, http://www.magura.com
