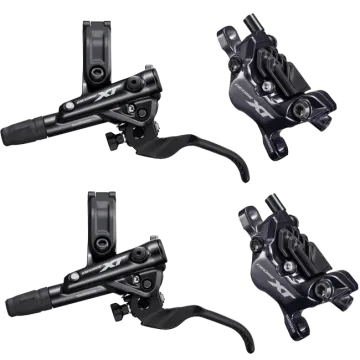

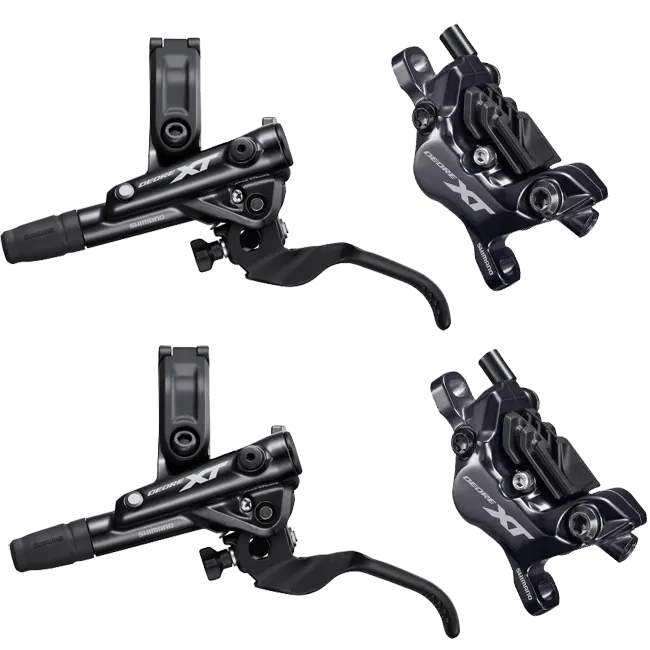

Shimano XT Disc Brake Set M8120 I Spec EV

The Shimano XT Disc M8120 disc brake set with 4-piston calipers for trail and enduro use.New I-Spec EV mount for 12-speed XT, SLX and XTR I-Spec EV shifters, high braking power, excellent heat dissipation, easier bleeding, ergonomic brake lever design, high-strength SM-BH90-SBM disc brake hose

Shimano Deore XT BL M8100 - BR M8120 disc brake technology:

• Forged aluminium 4-piston BR M8120 brake caliper, Post Mont 6
• Ice Tec H03A brake pads
• Adjustable pressure point
• Adjustable reach
• Brake pads with metal backing plates
• Weight of BR M8120 brake caliper with BL M8100 brake lever and hose: 300 grams
• Compatible brake pads: Shimano D02S, D03S, N03A, N04C, H04A
• Brake hose SM-BH90-SBM
• Hose length 100–170 cm

Included in the Shimano Deore XT disc brake set:

We offer the XT disc brake as a disc set, comprising the XT disc brake levers BL M8100 and brake caliper BR M8120, including brake pads and the SM-BH90-SBM brake hose. The screws, washers, spare hose nipples and hose sleeves are included in the delivery.

These brakes are supplied without oil. The One-Way Bleeding Funnel TL-BR003 and SMDBOIL oil are required for bleeding.

Shimano XT M8100:

The new Shimano XT 12-speed components, designed for use ranging from cross-country to enduro. The XT components designated 8100 are designed for 1x12 and 1x12-speed drivetrains. The legendary durability and performance of XT MTB parts is now also available in 12-speed. The new Deore XT M8100 series boasts a host of technical highlights, including Shimano’s groundbreaking 12-speed Micro Spline cassettes, available with a range of 10-45T or 10-51T, 1x12- or 2x12-speed Hollowtech II cranksets, powerful two- and four-piston brakes, I-Spec EV shift levers, high-precision 12-speed rear derailleurs and front derailleurs, Ice Tech Frezza brake discs with their outstanding heat dissipation, as well as the WH-M8100 and WH-M8120 wheelsets for XC and enduro use.

Shimano Deore XT brake lever BL M8100:

The XT BLM 8000 brake levers, featuring a 1.5-finger lever for ergonomic handling, are suitable for direct mounting with I-Spec EV shifters. The Shimano Deore XT brake levers operate both caliper versions with a single model and feature Shimano’s Servo-Wave technology. Furthermore, the free travel has been reduced once again, resulting in even more direct responsiveness. The brake levers follow the design of the XTR brake levers and are also mounted at an angle rather than parallel to the handlebars, so that they are supported at a second point on the handlebars in addition to the clamp, making them significantly stiffer than before. For individual adjustment, the levers are equipped with a tool-free grip width adjustment and a dead-travel adjustment.

Shimano Deore XT 4-piston brake caliper BR M8120:

The Deore XT BR-M8120 brake calipers feature 4-piston technology from the current 12-speed M8100 component series, fitted with N03 A-Resin brake pads with cooling fins. The Deore XT BR-M8120 brake caliper, designed for all-mountain to enduro use with particularly smooth-operating ceramic pistons, is torsion-resistant and approved for brake discs up to 220 mm. The brake calipers feature the Post Mount standard and are compatible with adapters for Post Mount and IS2000 frame and fork mounts. Approved for road and transport bikes.

Shimano I Spec EV:

The new I-Spec version of the Shimano XTR shifters and brakes offers a wide adjustment range – 14 mm laterally and 60 degrees of rotation – ensuring optimal shifter ergonomics. With the I-Spec EV version, the shifter can be mounted on XTR M9100/9120 brake levers in a space-saving manner. Furthermore, mounting via the new standard offers a 14-millimetre lateral adjustment range, and the shifter can also be rotated by 60 degrees. The new I-Spec EV version is not compatible with older brakes.

The Shimano XT Disc is supplied with Post Mount 6 brake calipers.

You can order the correct adapter for your fork and brake disc size separately

IS 2000: Side-mounted. An adapter is always required to fit the Shimano XT Disc BR-M8120; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle frames

Post Mount, PM5: Direct mounting of the Shimano XT Disc BR-M8120 with 140 mm brake discs without an adapter. Maximum 180 mm, minimum 140 mm disc size. Currently only found on rear triangle frames

Post Mount, PM6: Direct mounting of the Shimano XT Disc BR-M8120 with 160 mm brake discs without an adapter. Maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Currently the most common standard on forks, and on some rear triangle frames.

Post Mount, PM7: Direct mounting without an adapter of the Shimano XT Disc BR-M8120 with 180mm brake discs. Maximum 203mm, minimum 180mm disc size. 140 and 160 mm disc sizes are not possible. Found on some enduro suspension forks such as the Magura Thor and on some rear triangle frames such as the Liteville 301.

Post Mount, PM8: Direct mounting without an adapter for the Shimano XT Disc BR-M8120 with 203mm brake discs. Can only be used with 203mm brake discs. Found only on downhill suspension forks and frames

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
