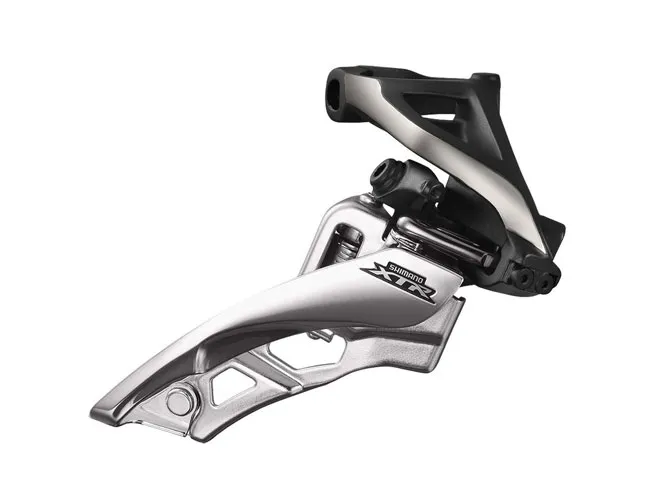

Shimano XTR FDM 9000 front derailleur

The new Shimano XTR 11-speed components, designed for use ranging from cross-country to enduro. Available with a crankset featuring 1–3 chainrings and an 11-speed cassette with an 11–40 tooth range.

The triple derailleurs in the XTR 9000 series feature the new front-pull cable linkage and are only compatible with frames designed for this system.

Shimano FD-M9000 front derailleur

The XTR 11-speed FD-M9000 derailleurs utilise a completely new derailleur system: Side-Swing technology delivers 100 per cent better shifting performance. Designed specifically with modern trail bikes in mind, the Side-Swing derailleur offers 15mm more clearance between the seat tube and tyre, whilst the completely new and optimised cable routing and control drastically reduces the force required for shifting.

Shimano XTR FD-M9020 Side Pull derailleur:

These XTR Side Pull derailleurs are only compatible with frames designed for them. The shift cable linkage is routed from the front and the outer cable housing is routed all the way to the derailleur.

Shimano XTR High Clamp Front Derailleur:

The seat tube clamp is mounted approximately 14 cm above the centre of the bottom bracket. The inner diameter of the clamp is 34.9 mm; reducer sleeves to 31.8 and 28.6 mm are included in the scope of delivery.

Shimano XTR 9000 Front Derailleur Compatibility:

The new Shimano 11-speed XTR front derailleur series is only compatible with the XTR 11-speed RDM9000 rear derailleurs and SLM9000 shift levers. The HG-900 chain is recommended. The 11-speed XTR cassettes are also compatible with 9-10-speed Shimano-compatible freehub bodies.

Shimano XTR FD-M9000 front derailleur technology

• 3x11-speed
• Clamp size 34.9 mm, including adapters for 31.8 and 28.6 mm
• SidePull, cable routing possible from the front only
• Side Swing,
• High Clamp Mounting approx. 14 cm above the centre of the bottom bracket
• Aluminium parallelogram
• Stainless steel pivot pin
• Compatible with all Shimano 11-speed MTB shifters
• Mounting angle 66–69 degrees
• Largest sprocket to be shifted: 40 teeth
• Total capacity: 18 teeth
• Weight: FDM-9000: 137 grams
