Sram Apex 1 HRD disc brake

The key to having a great time on every ride is being able to rely on your brakes. You can only really let loose when you know for sure that you’ll be able to stop whenever you want. That’s where the Apex 1 HydroR comes in. With our tried-and-tested HydroR braking system, it gives you exactly that peace of mind on every ride.

Sram Apex 1 HRD Reach Adjust: The fit and ergonomics of the brake lever are a very personal matter. Riders have individual positioning preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be adjusted with ease – for maximum control with just one finger

SRAM Apex 1 HRD Brake Lever Technology:

• Left-hand hydraulic brake lever
• Material: Aluminium brake lever
• Other: Ergonomic design and improved comfort with reach adjustment at minimal weight, internally and externally routed shift cables and longer, optimised levers
• Easy bleeding
• Compatible brakes: Sram Red, Force, Rival, Apex hydraulic rim and disc brakes
• Must only be used with DOT brake fluid

SRAM Apex 1 HRD disc brake technology:

• Post Mount caliper
• Optimised power and modulation for road bikes and cyclocross
• 18 mm brake caliper piston
• Hydraulic brake cylinder
• Fully sealed system protects against contamination
• Recommended brake discs: Sram Centerline
• Recommended brake disc sizes: 140 mm, 160 mm
• Must only be used with DOT brake fluid

Included:

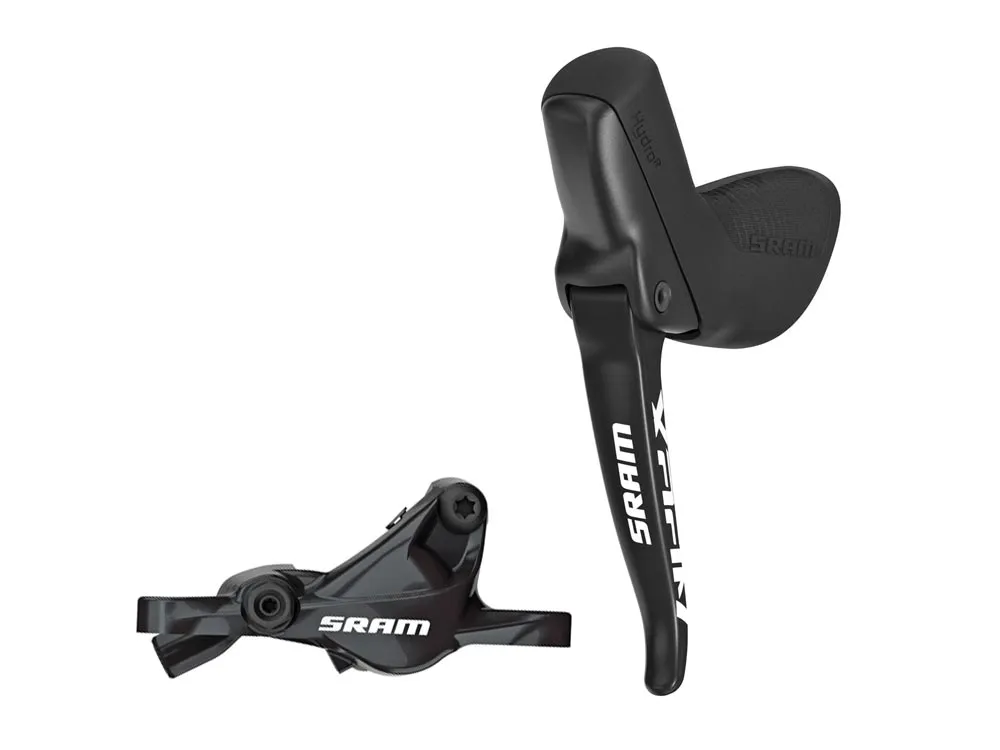

Sram Apex 1 HRD left brake lever, Apex Post Mount brake caliper including brake pads, 950 mm brake hose, fully pre-assembled and bled

Post Mount caliper standard:

The standard Post Mount brake caliper was originally developed for MTB disc brakes, but is also found on older road and gravel bikes with disc brake mounts. The bolt spacing for mounting the calipers is 74 mm. These calipers can be mounted directly depending on the frame/fork mount. An adapter is required for larger discs and/or IS2000 mounts.

IS 2000: Side-mounted. An adapter is always required to mount the brake caliper; 160 mm on the fork and 140–160 mm disc size on the frame. Found on older forks and rear triangle frames

Post Mount, PM5: Direct mounting of the brake caliper without an adapter for 140 mm brake discs. Maximum 160 mm, minimum 140 mm disc size.

Post Mount, PM6: Direct mounting of the brake caliper without an adapter for 160 mm brake discs. Maximum 160 mm, minimum 160 mm on the fork and frame.
