Shimano XTR FH-M9111, FH-M9111-B, FH-M9111-BS

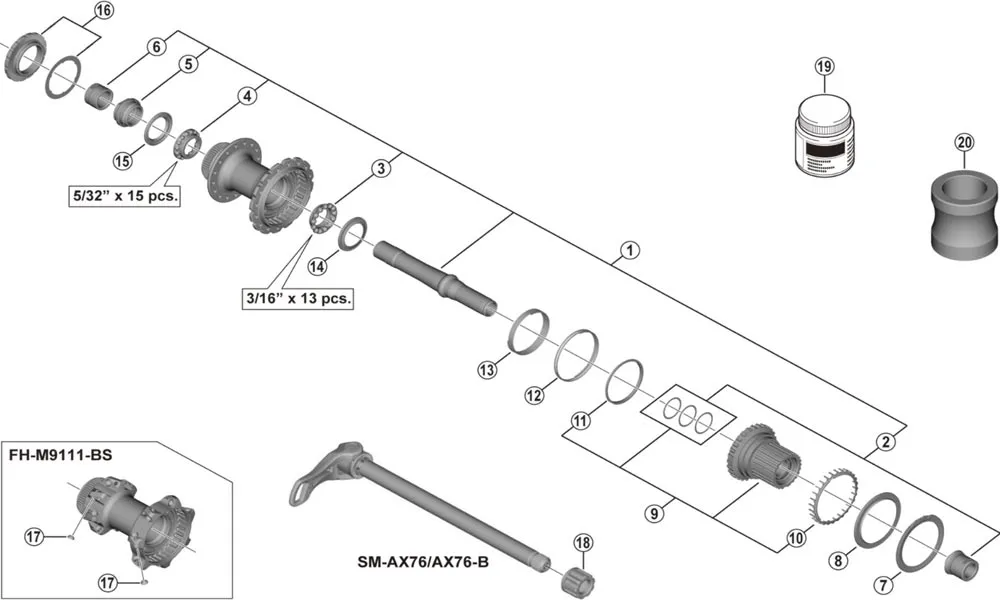

Part No. 14 in the exploded view.

Shimano XTR FH-M9111, FH-M9111-B, FH-M9111-BS Disc rear hub spare parts:

• No. 1: Y3GW98010 – Complete thru-axle for FH-M9111
• No. 1: Y3GX98010 – Complete Boost hollow axle for FH-M9111-B, FH-M9111-BS
• No. 2: Y3FL98020 - Complete axle nut assembly
• No. 3: Y3FL98030 - Right-hand ball bearing 3/16"
• No. 4: Y3FL98040 - Ball bearing, left, 5/32"
• No. 5: Y3GW98020 - Tapered nut, left
• No. 6: Y3GX31000 – Left-hand axle nut
• No. 7: Y3FL98060 – C-ring incl. dust cap for freewheel body
• No. 8: Y3FM26000 - Sealing ring for freewheel body
• No. 9: Y3GW98040 – Complete freewheel body
• No. 10: Y3FM14000 – Spacer for freewheel body
• No. 11: Y3FM11000 – Sliding ring for freewheel body
• No. 12: Y3FM10000 - Coil spring 1
• No. 13: Y3FM12000 – Coil spring 2
• No. 14: Y3FM25000 – Sealing ring, right
• No. 15: Y27X14000 – Sealing ring, left
• No. 16: Y2CW98050 – Lock ring + washer
• No. 17: Y44801000 – Straightpull washer for FH-M9111-BS
• No. 18: Y27Y02000 - Axle nut for SM-AX76, SM-AX76-B
• No. 19: Y38Z98000 – Special grease 50g
• No. 20: Y1Y100010 - TL-FH16 press-fit tool for freehub body sealing ring
