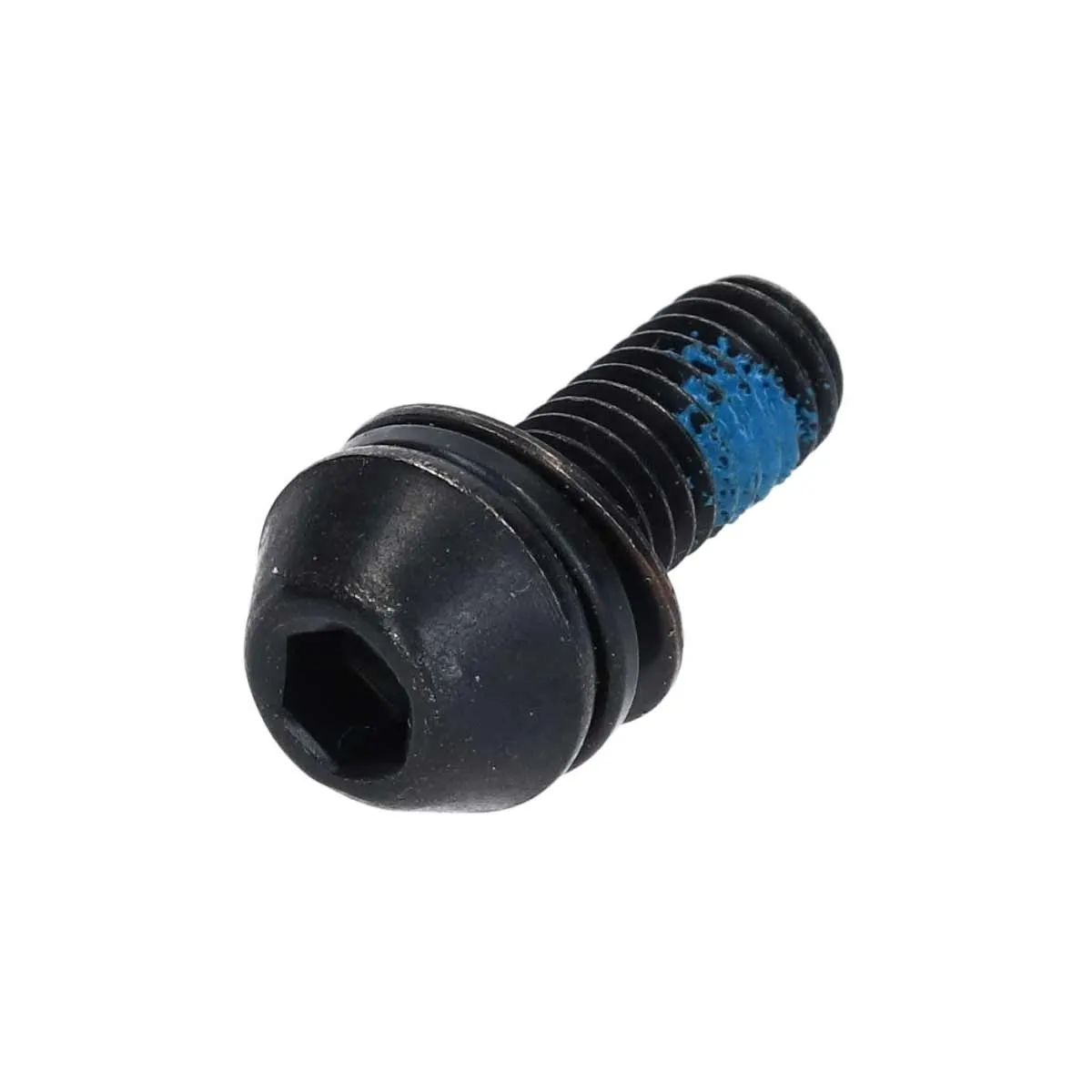

Spare part Shimano XTR FD-M9100

Part No. 7 in the exploded view.

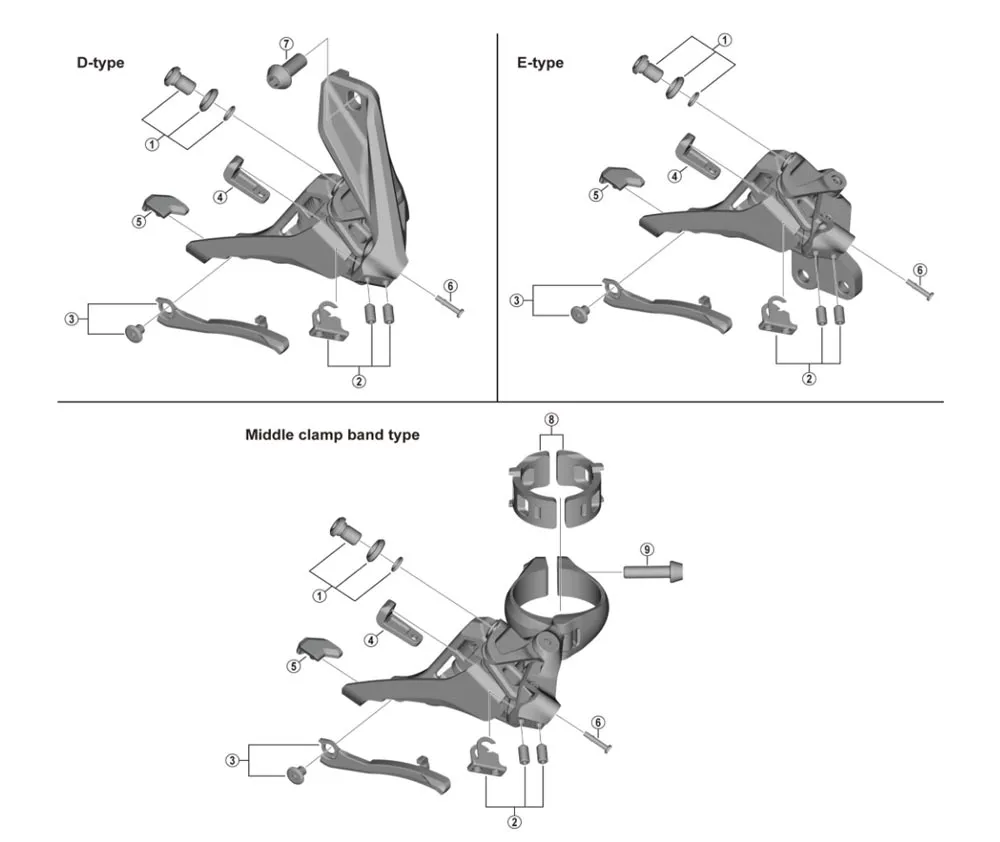

Shimano XTR FD-M9100 2x12-speed front derailleur spare parts:

• No. 1: Y2CT98010, cable clamp screw, plate and ring
• No. 2: Y5R198020, adjustment screws and plate
• No. 3: Y2CT98020, protective plate for chain guide
• No. 4: Y2CT11000, rubber pad A
• No. 5: Y5RC08000, rubber pad B
• No. 6: Y5PV48000, tab
• No. 7: Y5R230000, Clamping screw for D-type
• No. 8: Y57Y98030, S-size strap clamp adapter for 28.6mm
• No. 8: Y57Y98040, M-size strap clamp adapter for 31.8mm
• No. 9: Y5R007000, Clamp screw for middle-clamp-band-type

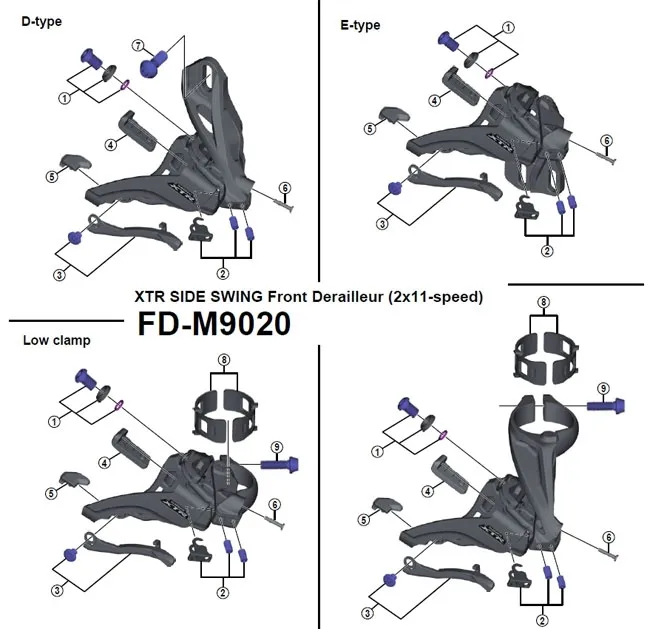

Shimano XTR FD M9020 front derailleur spare parts:

• No. 1, Item No. Y5R198010, Cable fixing bolt and plate, O-ring, M6 x 9.2
• No. 2, Part No. Y5R198020, Stroke Adjust Screws, M4 x 8, and Plate
• No. 3, Part No. Y5R198030, Chain Catcher and Fixing Bolt M4 x 5
• No. 4, Part No. Y5R213000, Rubber Pad A
• No. 5, Part No. Y5R214000, Rubber Pad B
• No. 6, Item No. Y5PV48000, Cover with Tongue
• No. 7, Item No. Y5R230000, Clamp Bolt, M6 x 16
• No. 8, Item No. Y57Y98030, Clamp Band Adapters for S-size / φ28.6 mm, 1-1/8
• No. 8, Item No. Y57Y98040, Clamp Band Adapters for M-size / φ31.8 mm, 1-1/4
• No. 9, Item No. Y5R007000, Clamp Bolt, M5 x 18.5

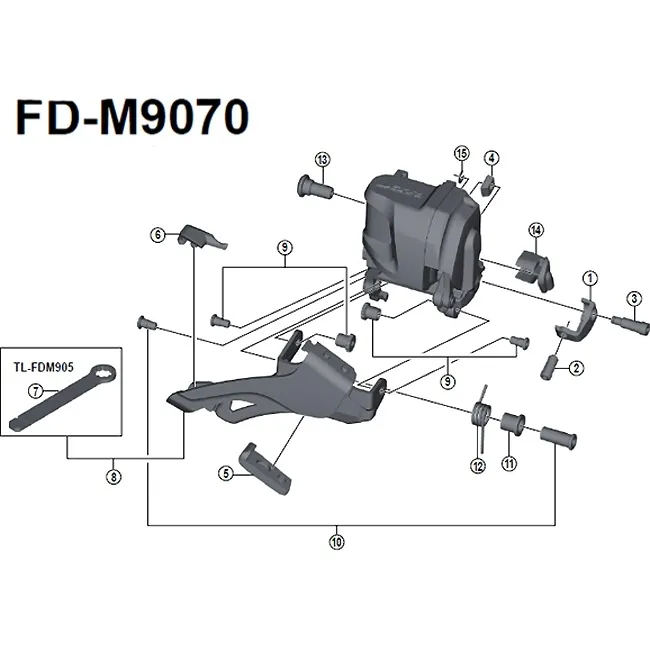

Shimano XTR Di2 FD-M9070 front derailleur spare parts:

• No. 1: Y5R5070D0, Adjustment Plate
• No. 2: Y6AM82200, Adjustment screw for adjustment plate SOLD OUT
• No. 3: Y5R5070C0, Adjustment screw for adjustment plate
• No. 4: Y5R5070B0, Stop plate
• No. 5: Y5R5070V0, Upper rubber pad A for chain guide
• No. 6: Y5R507100, Rubber pad B (bottom) for chain guide
• No. 7: YEZY00001, Shimano TL-FDM905 assembly tool for installation and removal
• No. 8: Y5R598010, Shimano TL-FDM905 installation tool and double chain guide
• No. 9: Y5R498020, chain guide screw and bushing for chain guide
• No. 10: Y5R498030, Return spring screw and bolt
• No. 11: Y5R5070P0, Return spring bushing
• No. 12: Y5R5070R0, return spring
• No. 13: Y5R5070S0, fixing screw for derailleur housing
• No. 14: Y5R5070T0, plug cover
• No. 15: Y7DE18000, Stop E-ring D2 for stop plate
• No. 16: Y5R007000, clamping screw M5x8.5mm for derailleur adapter SM-FD905H / SM-FD905L
• No. 17: Y57Y98030, clamp adapter band for S-size / diameter 28.6 mm
• No. 17: Y57Y98040, clamp adapter band for M-size / diameter 31.8 mm
• No. 18: Y5R230000, Clamping screw M6x14.5mm for derailleur adapter SM-FD905D

Available derailleur adapters for Shimano XTR Di2 FD-M9070:

• SM-FD905H, front derailleur adapter, high mount
• SM-FD905L, front derailleur adapter, low mount
• SM-FD905D, front derailleur adapter, Direct Mount
