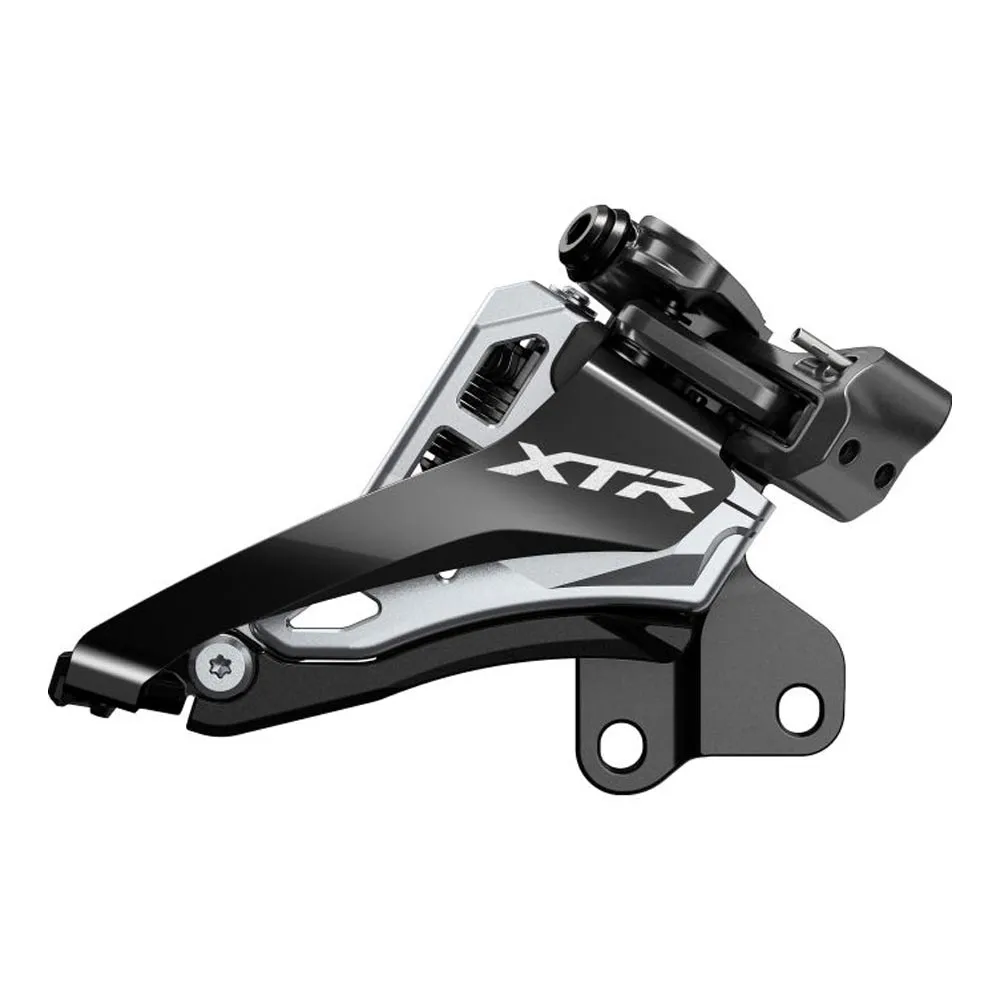

Shimano Deore XTR FD M9100 E-Type front derailleur, 12x2-speed, low direct mount, side swing, front pull, 12x2-speed
Shimano Deore XTR FD M9100 front derailleur
The 12 components from the XTR high-end series, designed for use ranging from cross-country to enduro. Available with a crankset featuring either one or two chainrings and the new 12-speed cassettes with 10-45 and 10-51 tooth configurations. The XTR components from the 9100 / 9120 series are not compatible with older shifters or cassettes. The new Micro Spline freehub body is required for the cassette.
Shimano XTR FD-M9100 Side Swing front derailleur
The XTR 12-speed FD-M9100 front derailleur utilises Side-Swing technology. This delivers significantly improved shifting performance. Designed specifically with modern trail bikes in mind, the Side-Swing derailleur offers 15mm more clearance between the seat tube and tyre, whilst the completely new and optimised cable routing and control drastically reduce the effort required to shift gears.
Shimano XTR FD-M9100 Front Pull Derailleur:
These front pull derailleurs are only compatible with frames designed for them. The shift cable is routed from the front and the outer cable housing is routed all the way to the derailleur. A classic shift cable routing from above or below is not possible with these derailleurs.
Shimano E-Type Low Direct Mount Derailleur:
The Low Direct front derailleurs are mounted directly onto frames designed for this purpose; the bolt spacing is 22.1 mm, horizontal, and features an offset at the mount. Not compatible with E-Type front derailleur mounts
Shimano XTR FD-M9100 Front Derailleur Compatibility:
The new Shimano 12-speed XT front derailleur series is only compatible with the 12-speed MTB rear derailleurs and shift levers from the Shimano MTB series. The CSM9100 chain is recommended.
Shimano XTR FD-M9100 front derailleur technology
- 2x12-speed
- Low Direct / E-Type Mounting
- Front pull, cable routing possible from the front only
- Side Swing mechanism
- Compatible with all Shimano 12-speed MTB shifters
- Mounting angle 66–69 degrees
- Chainline 48 to 51.8 mm
- Largest sprocket that can be shifted to: 36 teeth
- Total capacity: 10 teeth
- Weight: 88 grams (manufacturer's specification)
