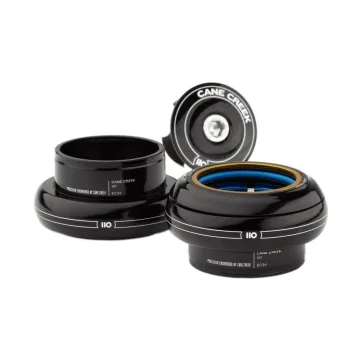

Cane Creek external headset 110, External Cup EC34 / 28.6 mm top, External Cup EC34 / 30 mm bottom, cap 16 mm, aluminium 7075-T6, colour black
Cane Creek 110 Headset
The Cane Creek 110 EC34 headset upper and lower cups for frames with an installation dimension of 34 mm at the top and bottom of the head tube and forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top and 1 1/8 inch / 30 mm at the bottom.
Cane Creek 110 Headset Specifications and Dimensions:
- Headset: 7075-T6 aluminium, CNC-machined
- Bearings: Stainless steel cartridge bearings with multiple seals
- Height at top: 16 mm with cap
- Bottom height: 12 mm
- Weight: 120 grams (manufacturer’s specification)
- Contents: Cane Creek headset
Cane Creek Series 110:
With the Series 110, Cane Creek has created an exceptional premium headset that combines maximum functionality with an attractive design. It is manufactured using a first-class selection of materials without compromising on functionality, making it the best headset in the Cane Creek range. Available in a wide range of configurations, as upper and lower cups or as a complete headset for almost any fork and head tube configuration.
Cane Creek bearings:
Fitted with high-quality stainless steel cartridge bearings, designed to protect all components from dirt and corrosion through multiple seals. This not only maximises service life but also minimises maintenance intervals. The prerequisites for a worry-free and unobtrusive headset.
EC34/30 top thread diameter:
The EC headset is pressed into the head tube at the top; the press-fit dimension in the frame is 34 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.
EC34/30 bottom installation dimension:
The EC headset is pressed into the head tube at the bottom; the press-fit dimension in the frame is 34 mm and the fork steerer tube diameter is 1 1/8 inches at the bottom. The headset cone requires a 30 mm seat on the fork at the bottom.
EC/External Cup – external headset:
Head sets designated EC / External Cup are also referred to as external or classic head sets. These head sets require a frame designed for this purpose with an exact match for the bearing cups. ‘External Cup’ refers to the relatively large projection of the bearing cups on the head tube, whilst ‘EC44’, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups in the frame. The headsets must be pressed in using a special tool, and the frame must be cleanly pre-milled.
Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
