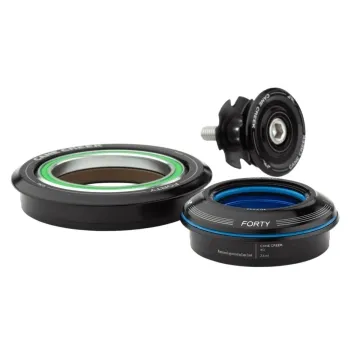

Cane Creek Forty Headset

The Cane Creek Forty ZS44 headset crown and ZS62 bottom cup are designed for frames with an installation dimension of 44 mm at the top and 62 mm at the bottom of the head tube, and forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top and 1.5 inches / 40 mm at the bottom.

Cane Creek Forty headset specifications and dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge bearings, oxide-coated, multi-sealed
• Height at top: 8 mm with cap
• Height at bottom: 4 mm
• Contents: Cane Creek headset including end cap and clamp for aluminium / steel forks

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it includes all the features that characterise a reliable headset. Available in various heights, as upper or lower cups to suit any frame and fork steerer – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Equipped with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

ZS44/28.6 top thread diameter:

The ZS headset is pressed into the head tube at the top; the press-fit dimension in the frame is 44 mm at the top and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

ZS62/40 bottom installation dimension:

The ZS headset is pressed into the head tube at the bottom; the press-fit dimension in the frame is 62 mm and the fork steerer tube diameter is 1.5 inches at the bottom. The headset cone requires a 40 mm seat on the fork.

ZS/Zero Stack – semi-integrated headset:

Head sets designated ZS / Zero Stack are also referred to as semi-integrated head sets. They require a frame designed for this purpose with an exact match for the bearing cups. Zero Stack refers to the minimal protrusion of the bearing cups from the head tube, whilst ZS44, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups within the frame. The headsets can usually be fitted without special tools; the frame simply needs to be cleanly pre-milled.

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
