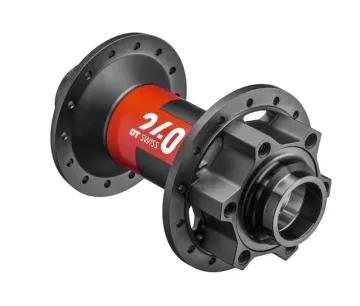

DT Swiss 240 Classic Boost front hub

With the DT Swiss 240 hubs, the Swiss revolutionised lightweight hub construction years ago. Minimal weight combined with extremely good durability is something of a rarity, particularly in hub construction. With the DT Swiss 240 EXP hubs, minimal weight combined with extremely good durability is something of a rarity, particularly in hub construction. The new axle system, with 15 per cent more support width, increases hub stiffness. The disc hubs with the 6-hole brake disc mount have a higher flange on the disc side. This increases the stability of the lacing, as the spokes are at the same angle on both sides. The MTB front hubs are not approved for radial lacing.

Boost QR 20x110mm standard:

This thru-axle standard requires new hubs. The wider hub shell with the flanges positioned further out enables wheels with greater lateral stiffness. On Boost hubs, the brake disc mount is also positioned further out. Consequently, these hubs cannot be fitted to conventional downhill forks with a QR20x110 mm mounting dimension.

DT Swiss 240 EXP Boost front hub technology:

• Housing material: Aluminium
• Axle: Aluminium
• Stainless steel ball bearings
• Seal-less sealing system
• Weight: 165 grams
• 6-hole brake disc mount
• Boost clamp width for 110 x 20 mm Boost thru-axle fitting, not convertible

Your custom wheel with the DT Swiss 240 EXP hub.

Ask us for a bespoke quote. We will build your dream wheelset, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
