DT Swiss Sram XD Hybrid Freewheel Body

The steel hybrid freehub bodies are used on DT Swiss e-bike wheels and hubs, but can of course also be used on all other wheels and hubs.

For converting DT Swiss 350 and 240S MTB hubs, with the Ratchet System, to the Sram XD System for 11-speed and 12-speed XG and Transition MTB cassettes.

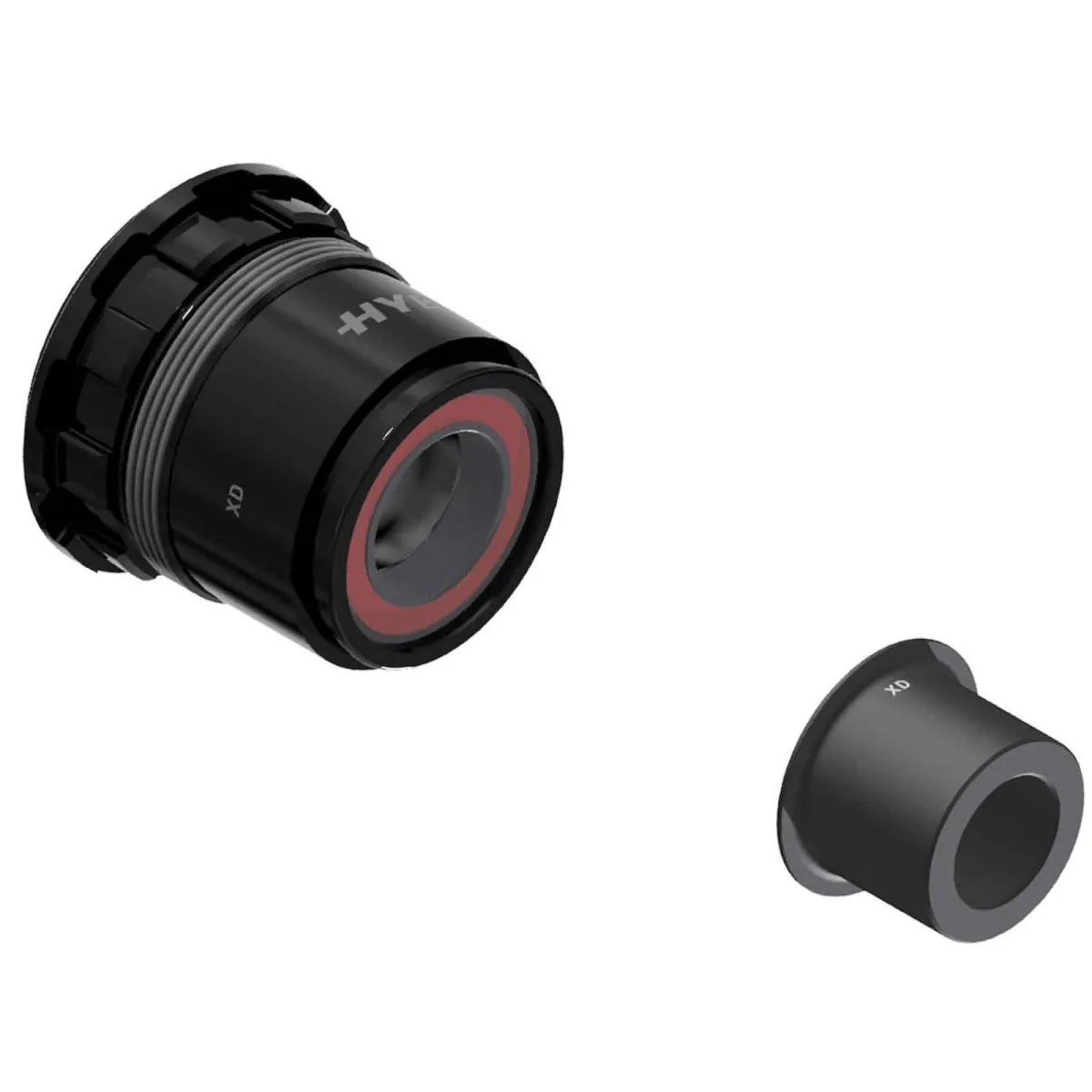

• The kit includes the freehub body and the right-hand frame stop for 12x142mm, 12x148mm or 12x157mm thru-axle mounting. The right-hand end stops for the mounting dimensions are the same; the hub widths differ.
• The Ratchet Star freehub bodies are only compatible with DT Swiss 350 hubs and older DT Swiss 240S hubs, as well as rear wheels fitted with these hubs.
• DT Swiss manufactures separate right-hand end stops for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end stops for older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with Pawl / 3-pawl, Ratchet LN, Ratchet EXP, Ratchet DEG hubs.
Not suitable for converting the hubs to a different installation size

The SRAM XD mountain bike freehub body system allows the installation of SRAM 11-speed and 12-speed XG MTB cassettes on DT Swiss MTB wheels. The DT Swiss XD freehub body offers the option to convert your rear wheel to this system. These freehub bodies differ from the road bike XDR freehub bodies in that they are 1.8 mm narrower. Total width 34.10 mm, cassette depth 28.5 mm. These freehub bodies can be used with SRAM 12-speed AXS road bike XG cassettes.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
